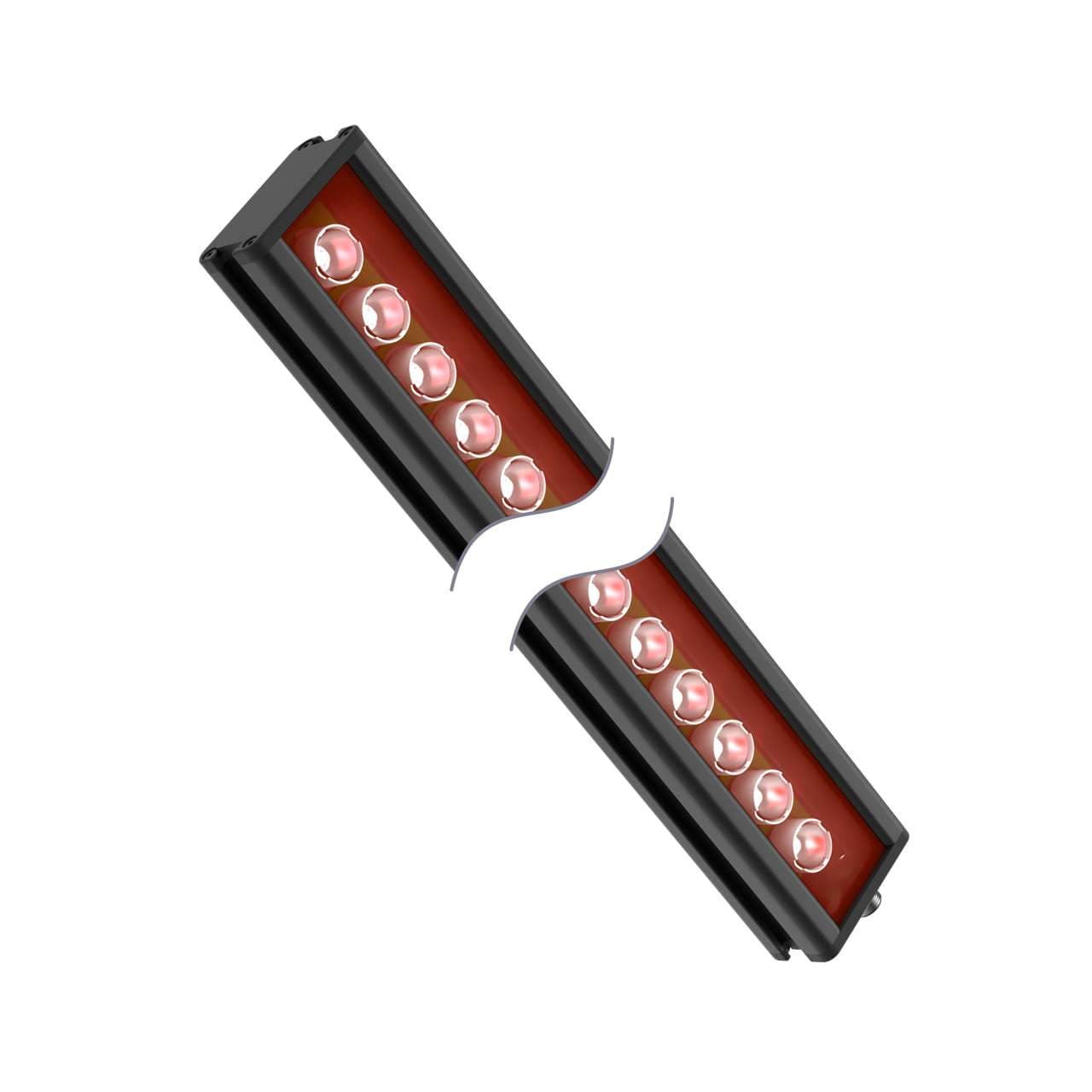

LEDILA435XP6-XQ Banner Vision Accessories
Part#:LEDILA435XP6-XQ
Alt. Part#:12825
Manufacturer:Banner
Category:Vision Accessories
Product Lifecycle:Active
Product description
Vision Light - 435 mm Linear Array - IP50; 18High Intensity IR LEDs - 24 V dc; Clear Plastic Window; Requires Cable MQDC20-xxx
Product Details
- Weight 1142.144656 g
- Country Of Origin MX
- Physical Dimensions (LxWxH or DxH mm) 478.1 x 59.4 x 32.6
- Housing Style Linear Strip
- Max Op. Temperature (°C) 50
- Color Technology Standard LED
- Color Infrared
- Lens Focusing Angle (°)/Field of View 6.5
- Number of Input Pins/Conductors 5
- Device Type Bar Light
- QD Type/Cable Length M12 (Euro) requires mating cordset
- Connection Type Integral QD
- Power DC
- Max Current Color (mA) 1500
- Primary Housing Material Anodized Aluminum
- Supply Voltage 24 V DC
- Window Material Acrylic
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of LEDILA435XP6-XQ on Powermatic Associates is $1,426.00. Order now.
About the product
Banner Engineering LEDILA435XP6-XQ is an illumination unit designed for linear array illumination backlight applications. It features a high-intensity design with a rectangular shape, measuring 435mm in array length, equivalent to 18 inches or 1.5 feet. This unit emits light in the infrared (IR) spectrum and is constructed with a black anodized aluminum housing and an acrylic window for durability. It comes pre-equipped with a 5-pin Euro-style M12 connector for easy connection. The LEDILA435XP6-XQ operates on a 24Vdc supply voltage and is rated with a degree of protection of IP50, indicating a level of protection against dust ingress.
