LEDILA580XP6-PHQ Banner Vision Accessories

LEDILA580XP6-PHQ on Powermatic Associates
Banner
  • LEDILA580XP6-PHQ
  • LEDILA580XP6-PHQ

Part#:LEDILA580XP6-PHQ

Alt. Part#:81810

Manufacturer:Banner

Category:Vision Accessories

Product Lifecycle:Active

Product description

LINEAR ARRAY IR ACRYLIC 2 FT DIMMABLE

Product Details

  • Weight
    2160.005104 g
  • Country Of Origin
    US
  • Max Op. Temperature (°C)
    50
  • Lens Focusing Angle (°)/Field of View
    6.5
  • Physical Dimensions (LxWxH or DxH mm)
    623.6 x 59.4 x 32.6
  • Supply Voltage
    24 V DC
  • Max Current Color (mA)
    2000
  • Color Technology
    Standard LED
  • Number of Input Pins/Conductors
    5
  • Color
    Infrared
  • Connection Type
    Integral QD
  • Window Material
    Acrylic
  • Device Type
    Bar Light
  • QD Type/Cable Length
    M12 (Euro) requires mating cordset
  • Intensity Adjustment
    Potentiometer and Analog
  • Primary Housing Material
    Anodized Aluminum
  • Housing Style
    Linear Strip
  • Power
    DC

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of LEDILA580XP6-PHQ on Powermatic Associates is $1,918.00. Order now.

About the product

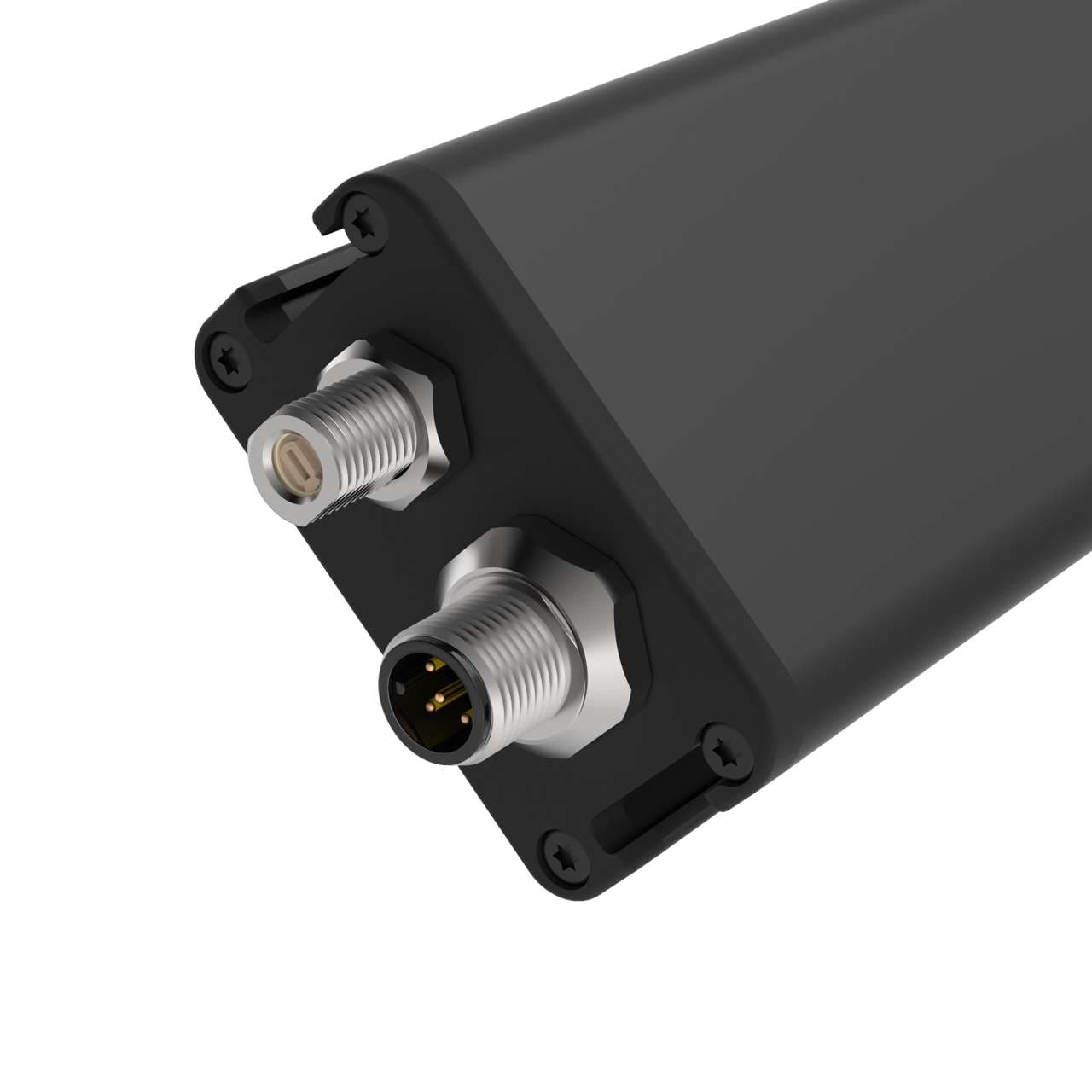

Banner Engineering LEDILA580XP6-PHQ is an illumination unit designed for linear array illumination backlight applications. It features intensity adjustment capabilities, allowing for dimming either via a potentiometer or an analog input, and delivers high-intensity lighting. The unit measures 580mm in length and is equipped with an infrared (IR) light source. Its rectangular shape is encased in a black anodized aluminum housing with an acrylic window. For connectivity, it comes pre-equipped with a 5-pin Euro-style M12 connector. The LEDILA580XP6-PHQ operates on a 24Vdc supply voltage and offers a degree of protection rated at IP50. It includes 1 x digital input (24Vdc; high-polarity) for strobe control and 1 x analog input (0-10Vdc) for intensity control.

LEDILA580XP6-PHQ Related Documents

150944.pdf
