LEDUV365LA435XG6-PHQ Banner Vision Accessories

Name: LEDUV365LA435XG6-PHQ
Brand: Banner
Price: 3756 USD
Availability: BackOrder

LEDUV365LA435XG6-PHQ on Powermatic Associates

Part#:LEDUV365LA435XG6-PHQ

Alt. Part#:20258

Manufacturer:Banner

Category:Vision Accessories

Product Lifecycle:Active

Product description

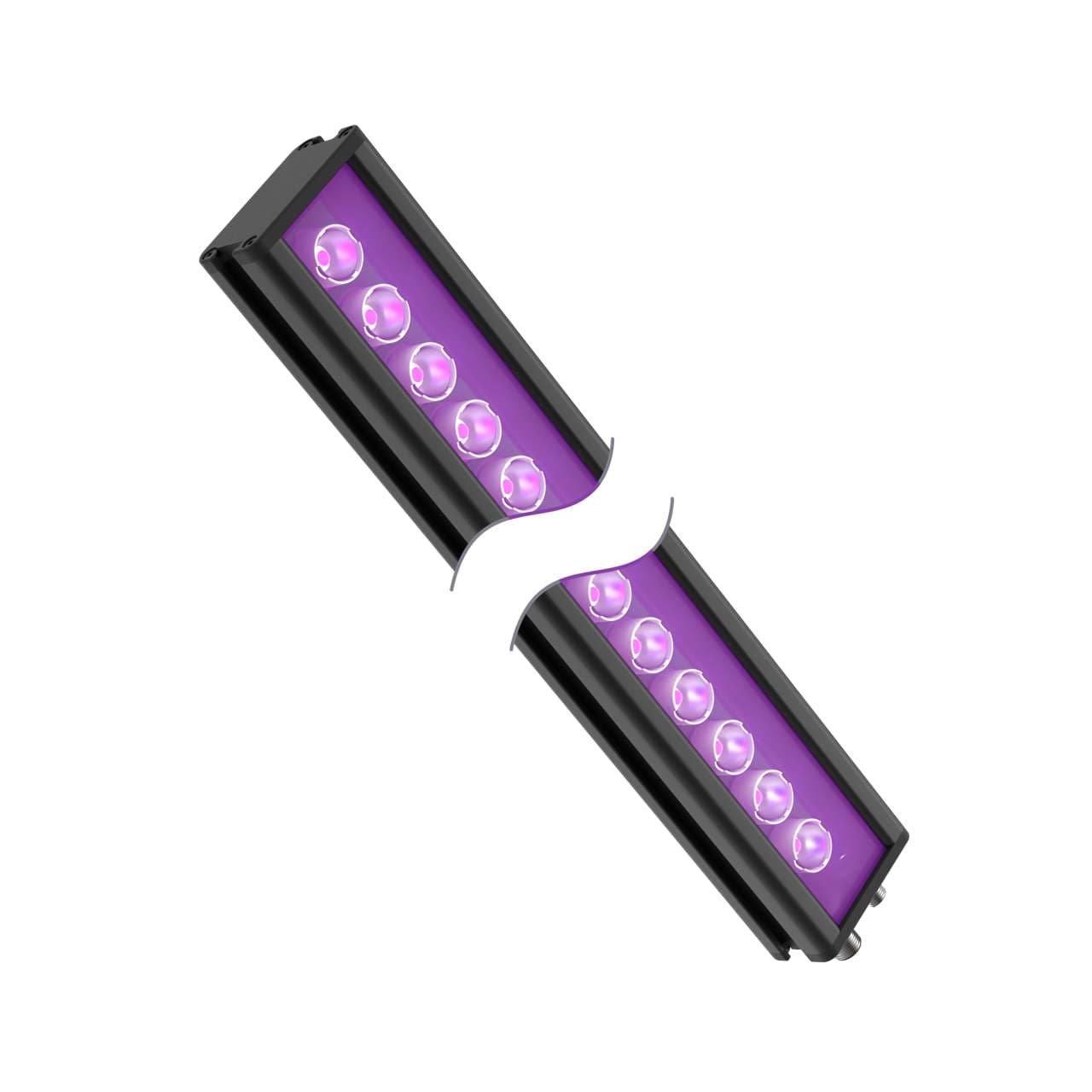

Vision Light: 435 mm Linear Array - IP50; Dimmable Active High; 18 High Intensity 365 nm UV LEDs - 24 V dc; Clear Glass Window; 5-pin M12 QD

Product Details

Weight
1111.3004 g
Country Of Origin
US
Window Material
Glass
Physical Dimensions (LxWxH or DxH mm)
478.1 x 59.4 x 32.6
Device Type
Bar Light
Number of Input Pins/Conductors
5
Connection Type
Integral QD
Lens Focusing Angle (°)/Field of View
15
Feature: Quick Disconnect
Yes
Primary Housing Material
Anodized Aluminum
Intensity Adjustment
Potentiometer and Analog
Housing Style
Linear Strip
Supply Voltage
24 V DC
Power
DC
Max Op. Temperature (°C)
50
Color
Ultraviolet
Max Current Color (mA)
1500
QD Type/Cable Length
M12 (Euro) requires mating cordset
Color Technology
Standard LED

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of LEDUV365LA435XG6-PHQ on Powermatic Associates is $3,756.00. Order now.

About the product

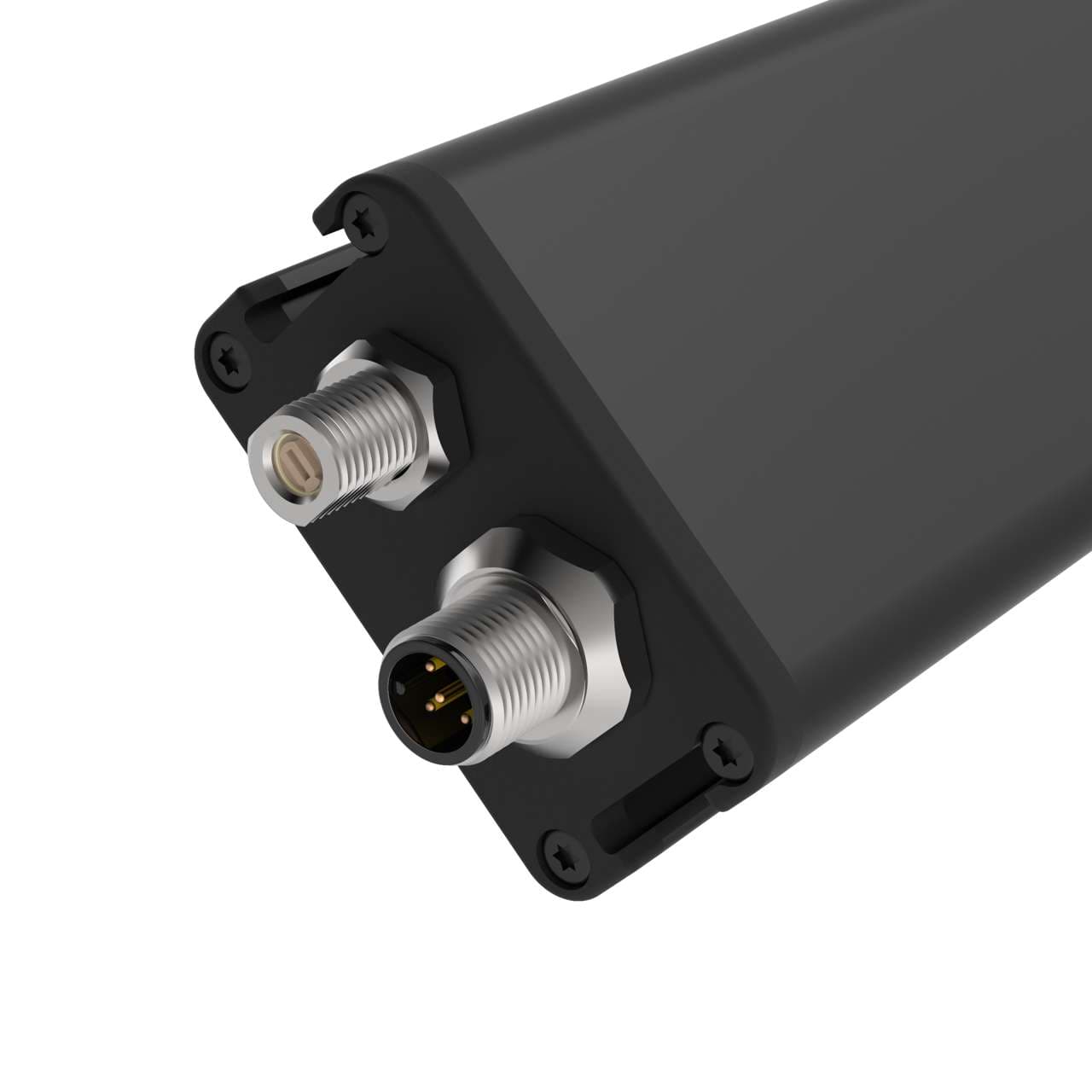

Banner Engineering LEDUV365LA435XG6-PHQ is an illumination unit designed for linear array illumination backlight applications. It features intensity adjustment capabilities, allowing for dimming via either a potentiometer or an analog input, and delivers high-intensity ultraviolet (UV) light. The unit measures 435mm in array length and is housed in black anodized aluminum with a glass window, ensuring durability and clarity. It is equipped with a 5-pin Euro-style M12 connector for easy connection and operates on a 24Vdc supply voltage. The LEDUV365LA435XG6-PHQ emits light at a wavelength of 365 nm and offers a rectangular shape. It has a degree of protection rated at IP50, making it suitable for environments where dust protection is necessary. The unit also features 1 x digital input (24Vdc; high-polarity) for strobe control and 1 x analog input (0-10Vdc) for precise intensity control.
