Part#:LEDUV395LA870XD6-PLQ

Alt. Part#:20350

Manufacturer:Banner

Category:Vision Accessories

Product Lifecycle:Active

Product description

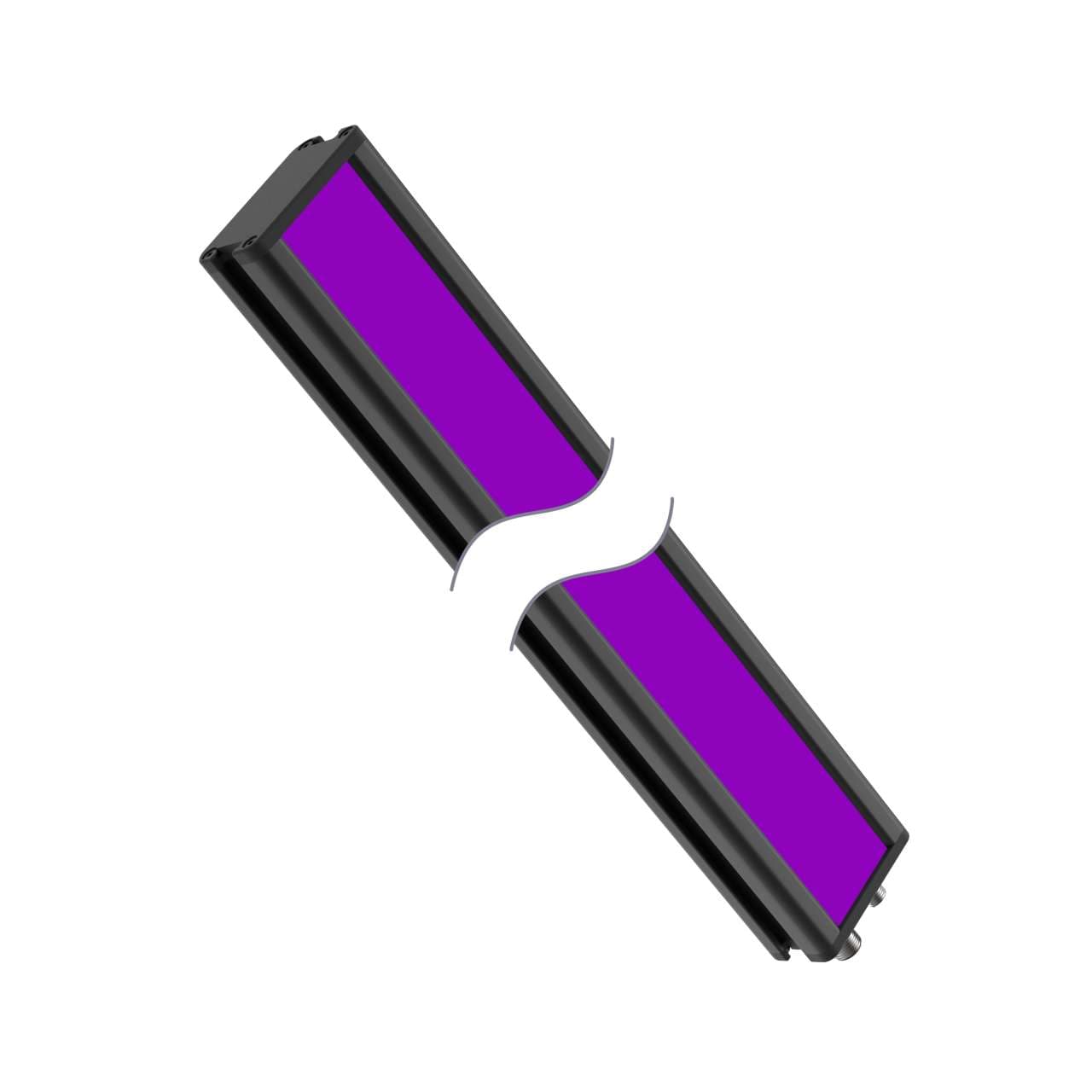

Vision Light: 870 mm Linear Array - IP50; Dimmable Active Low; 36 High Intensity 395 nm UV LEDs - 24 V dc; Diffuse Plastic Window; 5-pin M12 QD

Product Details

  • Weight
    2054.77176 g
  • Country Of Origin
    US
  • Device Type
    Bar Light
  • Housing Style
    Linear Strip
  • Max Op. Temperature (°C)
    50
  • Connection Type
    Integral QD
  • Number of Input Pins/Conductors
    5
  • Window Material
    Diffuse Acrylic
  • Lens Focusing Angle (°)/Field of View
    5
  • Feature: Quick Disconnect
    Yes
  • Intensity Adjustment
    Potentiometer and Analog
  • Color
    Ultraviolet
  • Power
    DC
  • Color Technology
    Standard LED
  • Physical Dimensions (LxWxH or DxH mm)
    914.6 x 59.4 x 32.6
  • Primary Housing Material
    Anodized Aluminum
  • Supply Voltage
    24 V DC
  • QD Type/Cable Length
    M12 (Euro) requires mating cordset
  • Max Current Color (mA)
    3000

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of LEDUV395LA870XD6-PLQ on Powermatic Associates is $5,331.00. Order now.

About the product

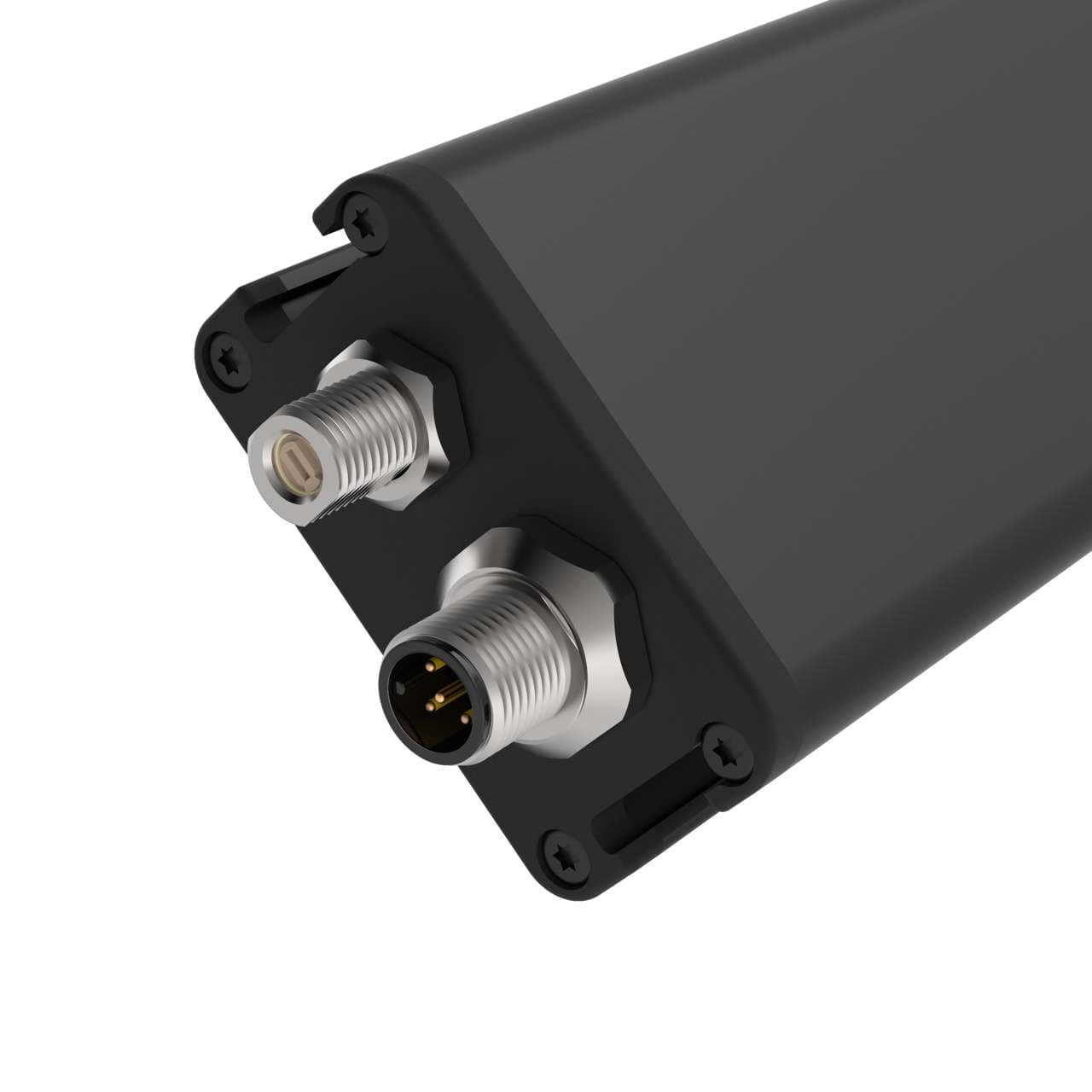

Banner Engineering LEDUV395LA870XD6-PLQ is an illumination unit designed for linear array illumination backlight applications. It features intensity adjustment capabilities, allowing for dimming via either a potentiometer or an analog input, and delivers high-intensity ultraviolet light. The unit measures 870mm in length and is housed in black anodized aluminum with a diffused acrylic window. It is equipped with a 5-pin Euro-style M12 connector for connectivity. The LEDUV395LA870XD6-PLQ operates on a 24Vdc supply voltage and emits light at a wavelength of 395 nm. It offers a degree of protection rated at IP50. For control, it includes 1 digital input for strobe control (24Vdc; low-polarity) and 1 analog input for intensity control (0-10Vdc).
