Powermatic Associates Logo

LEDWA70SSD5-PQ Banner Vision Accessories

LEDWA70SSD5-PQ on Powermatic Associates
Banner
  • LEDWA70SSD5-PQ
  • LEDWA70SSD5-PQ

Part#:LEDWA70SSD5-PQ

Alt. Part#:16239

Manufacturer:Banner

Category:Vision Accessories

Product Lifecycle:Active

Product description

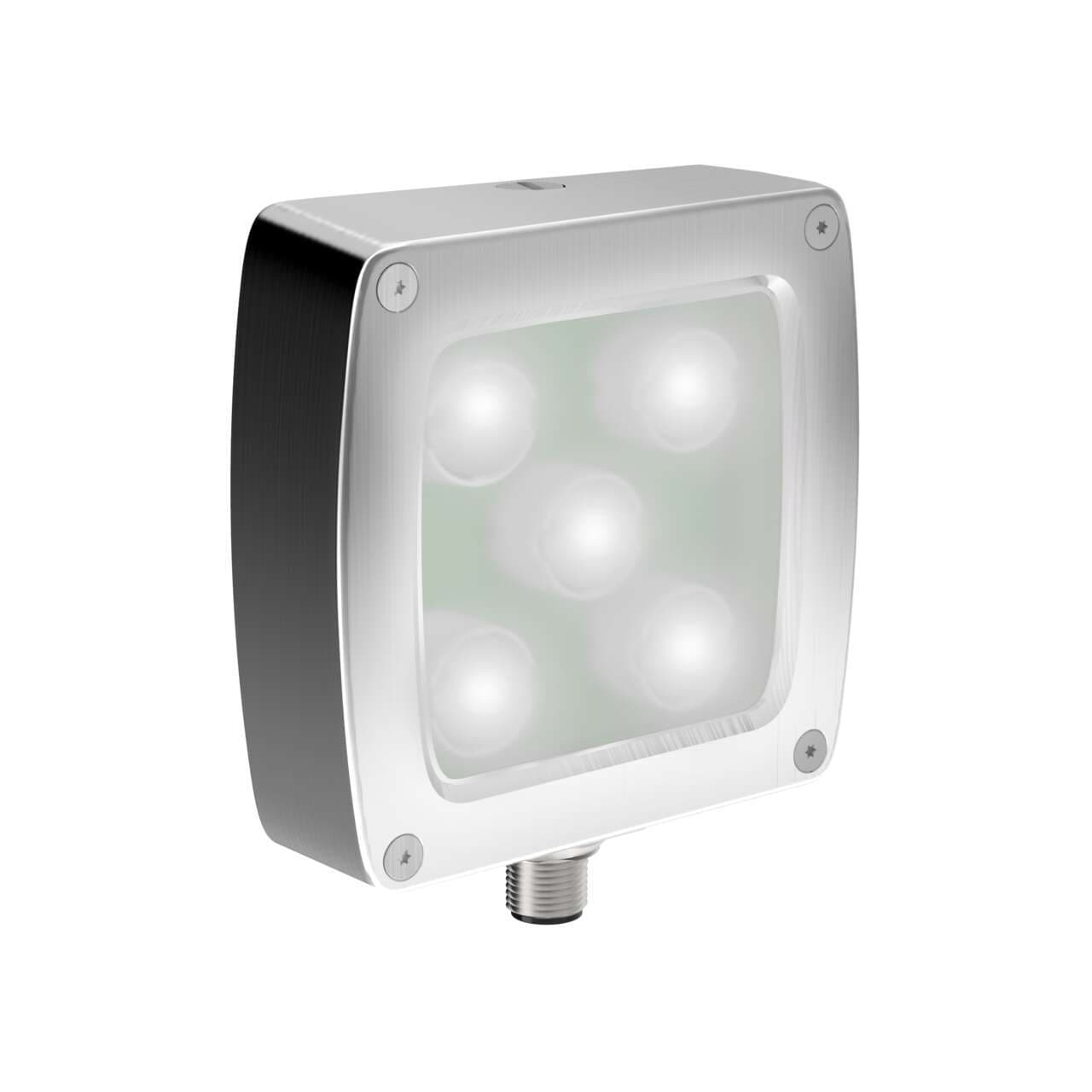

Vision Light - 70 mm Area with Potentiometer; IP68 Stainless Steel-5 High Intensity White LEDs-24 V dc; Clear Diffusing Plastic Window; Requires Cable MQDC20SS-xxx

Product Details

  • Weight
    #VALUE! g
  • Country Of Origin
    US
  • Connection Type
    Integral QD
  • Power
    DC
  • Window Material
    Diffuse Acrylic
  • QD Type/Cable Length
    M12 (Euro) requires mating cordset
  • Number of Input Pins/Conductors
    5
  • Color Technology
    Standard LED
  • Housing Style
    Rectangular
  • Max Current Color (mA)
    500
  • Primary Housing Material
    Stainless Steel
  • NEMA Type and UL Type Rating
    NEMA 4X
  • Device Type
    Area Light
  • Physical Dimensions (LxWxH or DxH mm)
    102.0 x 91.0 x 28.2
  • Color
    White
  • Max Op. Temperature (°C)
    50
  • Feature: Quick Disconnect
    Yes
  • Intensity Adjustment
    Potentiometer
  • Supply Voltage
    24 V DC

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of LEDWA70SSD5-PQ on Powermatic Associates is $2,006.00. Order now.

About the product

Banner Engineering LEDWA70SSD5-PQ is an illumination unit designed for area lighting applications. It features intensity adjustment capabilities, allowing for dimming via a potentiometer to achieve high-intensity illumination as needed. The unit measures 70x70mm, emits visible white light, and has a square shape. It is constructed with a stainless steel housing and a diffused acrylic window for durability and optimal light diffusion. This model is pre-equipped with a 5-pin Euro-style M12 connector for easy installation. It operates on a 24Vdc supply voltage and is rated with an IP68 degree of protection, indicating a high level of resistance to dust and water ingress.

LEDWA70SSD5-PQ Related Documents

153957.pdf
