LEDWRV70XD5-PM Banner Vision Accessories
Part#:LEDWRV70XD5-PM
Alt. Part#:97361
Manufacturer:Banner
Category:Vision Accessories
Product Lifecycle:Active
Product description

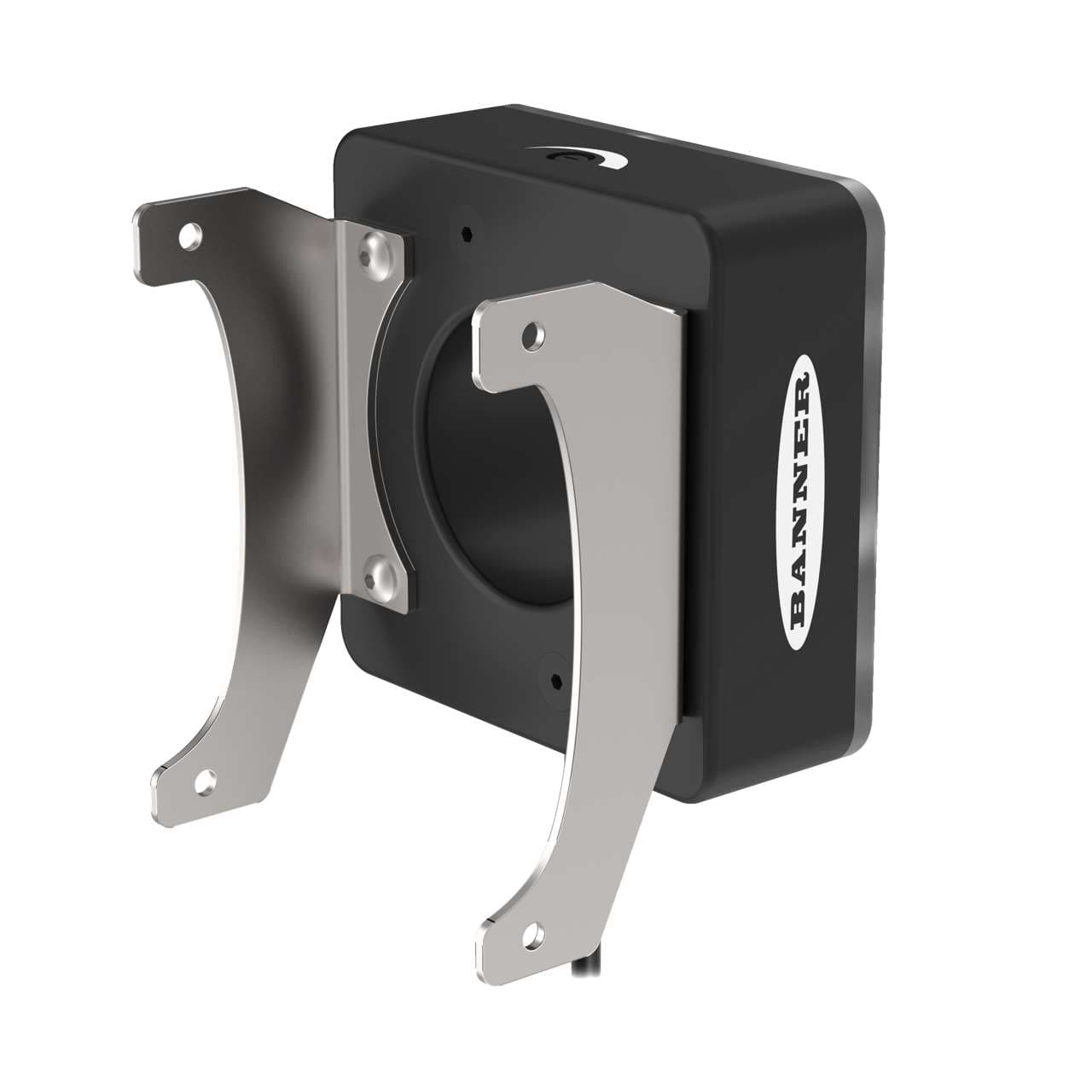

VE Series 70 x 70 mm High Intensity Ring Light; Visible White LED; 24 V dc; Adjustable Intensity; 0.3 m (1 ft) Cable with 3-pin male Connector; Connects to VE Smart Camera
Product Details
- Weight 249.4756 g
- Country Of Origin MX
- Device Type Ring Light
- Color Technology Standard LED
- Power DC
- QD Type/Cable Length 300 mm; M8 (Pico)
- Feature: Quick Disconnect Yes
- Intensity Adjustment Potentiometer
- Max Current Color (mA) 350
- Housing Style Rectangular
- Color White
- Max Op. Temperature (°C) 50
- Primary Housing Material Aluminum
- Supply Voltage 24 V dc
- Window Material Acrylic
- Physical Dimensions (LxWxH or DxH mm) 76.2 x 76.2 63.0
- Connection Type Pigtail QD
- Number of Input Pins/Conductors 3
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of LEDWRV70XD5-PM on Powermatic Associates is $454.00. Order now.
About the product
Banner Engineering LEDWRV70XD5-PM is an illumination unit designed for ring illumination light applications. It features adjustable intensity high-intensity lighting within a square shape, measuring 70x70mm. The light color ranges from visible white (5000K to 8300K), housed in an aluminium casing with an acrylic window for durability and clarity. This unit is pre-wired with a 12" / 300mm pigtail that terminates with a 3-pin Pico-style M8 connector, ensuring easy and secure connection. It operates on a 24Vdc supply voltage.
