LS2E30-1050Q8 Banner Safety Light Curtains
Part#:LS2E30-1050Q8
Alt. Part#:73530
Manufacturer:Banner
Category:Safety Light Curtains
Product Lifecycle:Active
Product description
LS2E30-1050Q8 EZS TYPE2 E TRIP 30 mm x 1050 mm
Product Details
- Weight 2494.756 g
- Country Of Origin CN
- Primary Housing Material Aluminum
- low-profile No
- Operating Temperature 0 to +55 deg. C; RH 95%
- Scan Code None
- OSSD Rating N/A
- Connector Type M12
- Housing Finish Yellow Polyester
- Reduced Resolution No
- Auxiliary Output No
- Trip/Latch Output N/A
- Overall Length (mm) 1114
- Number of Pins (Receiver/Emitter) 8
- Response Time 21
- Fault Output Yes
- Feature: ESD Safe No
- Defined Area Height (mm) 1050
- PL Rating N/A
- Shock 10g at 16ms (6000 cycles)
- Feature: End-to-End Sensing No
- External Monitoring Device No
- Operating Voltage 24 V dc +/- 20%
- Electrical Safety Class III
- Supply Current 50 mA max.
- Safety Level Type 2
- Fixed Blanking No
- Recovery Time N/A
- Short Protection Yes
- Vibration 10-55 Hz at 0.35 mm
- Effective Aperture Angle Type 2 Per IEC 61496-2
- IP Rating IP65
- Resolution (mm) 30
- System Type Emitter
- Test Input No
- Dimensions WxD (mm) 25.4 x 31.8
- Operating Distance (m) 0.2 - 15
- SIL Rating SIL2; CL2
- Housing Material Aluminum; Zinc; Acrylic
- Feature: Integral Muting No
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of LS2E30-1050Q8 on Powermatic Associates is $1,182.00. Order now.
About the product

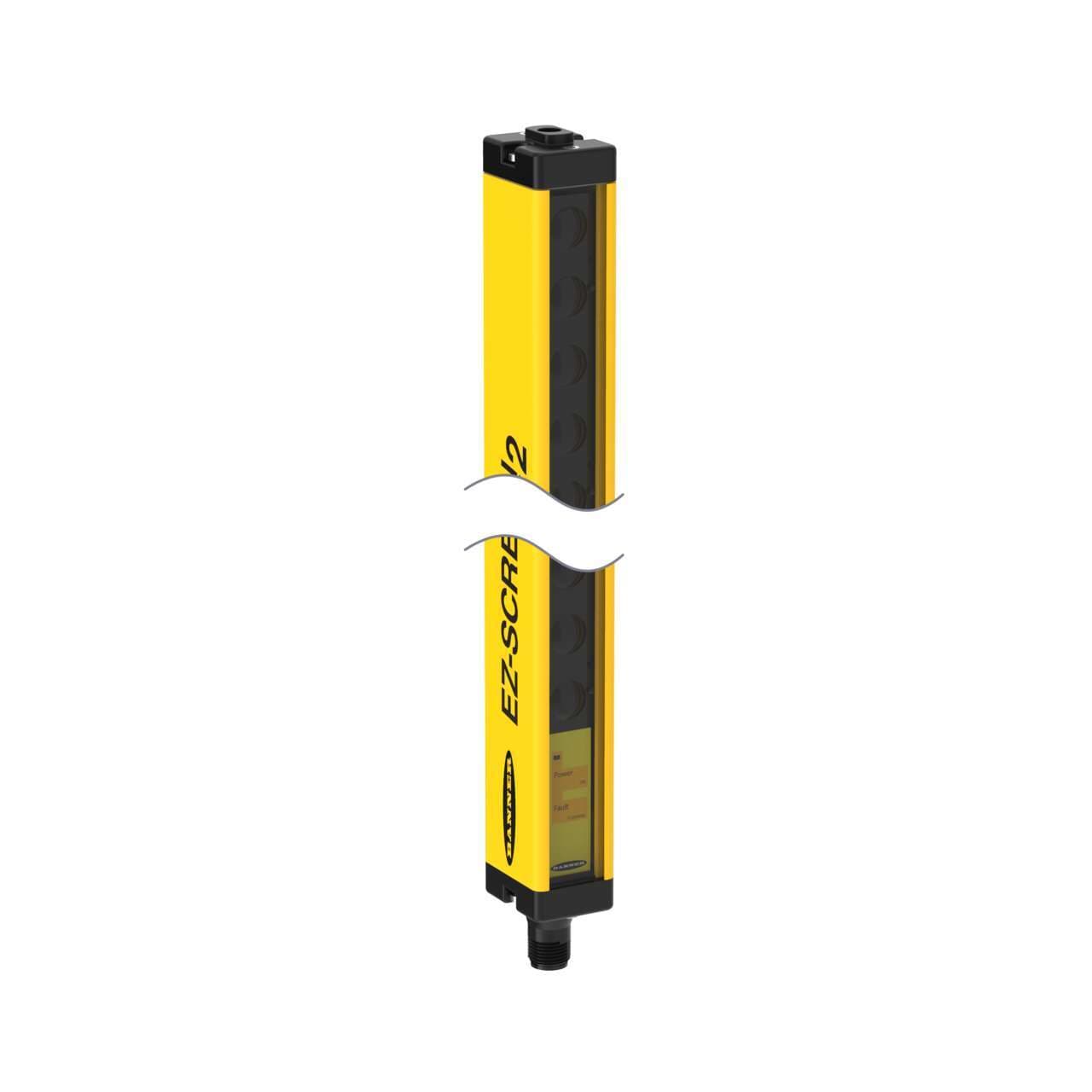

Banner Engineering LS2E30-1050Q8 is a safety light curtain within the LS2 series type 2 light screens, designed specifically for hand detection with a resolution of 30mm. This part functions as a safety light screen/curtain emitter alone, featuring a trip output design. It has a protective height of 1050mm and emits infrared (IR) light with a wavelength of 850 nm. The housing is yellow, made from aluminium with an acrylic lens and die-cast zinc end caps. It offers a beam spacing/pitch of 30mm and comes pre-equipped with an 8-pin Euro-style M12 connector for connectivity. The LS2E30-1050Q8 operates on a 24Vdc supply voltage, has a net height of 1114 mm, a width of 26 mm, and a depth of 32 mm. It is capable of operating in ambient air temperatures ranging from 0 to +55°C. With an IP65 degree of protection, it ensures durability in various environments. The sensing distance ranges from 20cm to 15m, and it includes 2 x digital outputs (24Vdc; 500mA; sourcing; redundant OSSD solid-state outputs) with a response time of 21ms / 0.021 s.
LS2E30-1050Q8 Related Documents
Similar products from: Banner Safety Light Curtains
Manufacturer warranty
LS2E30-1050Q8 Banner
$1,182.00
Your price can be lower.
Log in or Create account to check your discount
Select Qty:
$1,182.00
$1,182.00 each
Average response time: 11 minutes
Worldwide Shipping and Delivery
Secure Payment Processing
Warranty
Responsive Customer Support
Got Questions? We've Got Answers!
Need more details?
Feel free to chat with us
Compare LS2E30-1050Q8 with other Safety Light Curtains products
Weight
Country Of Origin
Primary Housing Material
low-profile
Operating Temperature
Scan Code
OSSD Rating
Connector Type
Housing Finish
Reduced Resolution
Selected product
Weight2494.756 g
Country Of OriginCN
Primary Housing MaterialAluminum
low-profileNo
Operating Temperature0 to +55 deg. C; RH 95%
Scan CodeNone
OSSD RatingN/A
Connector TypeM12
Housing FinishYellow Polyester
Reduced ResolutionNo
SLSRBR30-1500Q8
Banner
EZ-SCREEN Remote Blanking Receiver; Resolution: 30 mm; Range: 18 m (60 ft); Defined Area: 1500 mm (5...
Weight4989.512 g
Country Of OriginMX
Primary Housing MaterialAluminum
low-profileNo
Operating Temperature-
Scan Code-
OSSD Rating-
Connector TypeM12
Housing Finish-
Reduced Resolution-
SLSP14-450P88
Banner
EZ-SCREEN Pair; Resolution: 14 mm; Range: 6 m (20 ft); Defined Area: 450 mm (17.7 in); Housing Lengt...
Weight562.45408 g
Country Of OriginMX
Primary Housing MaterialAluminum
low-profileNo
Operating Temperature-
Scan Code-
OSSD Rating-
Connector TypeM12 Pigtail (Yellow)
Housing Finish-
Reduced Resolution-
About the manufacturer
Powermatic Associates is an authorized Banner distributor, proud to offer an extensive range of Banner's innovative products and solutions. Banner Engineering is a renowned manufacturer specializing in industrial automation, known for their cutting-edge sensor technology, machine safety solutions, wireless connectivity, and LED lighting systems. With a precision focus on delivering high-quality eq...
Recently viewed products
Relevant products
FAQ
What is the price of LS2E30-1050Q8?
Purchase the LS2E30-1050Q8 from Powermatic Associates at the price of $1,182.00. Order today.
Out if stock but available for backorder.
LS2E30-1050Q8 EZS TYPE2 E TRIP 30 mm x 1050 mm
