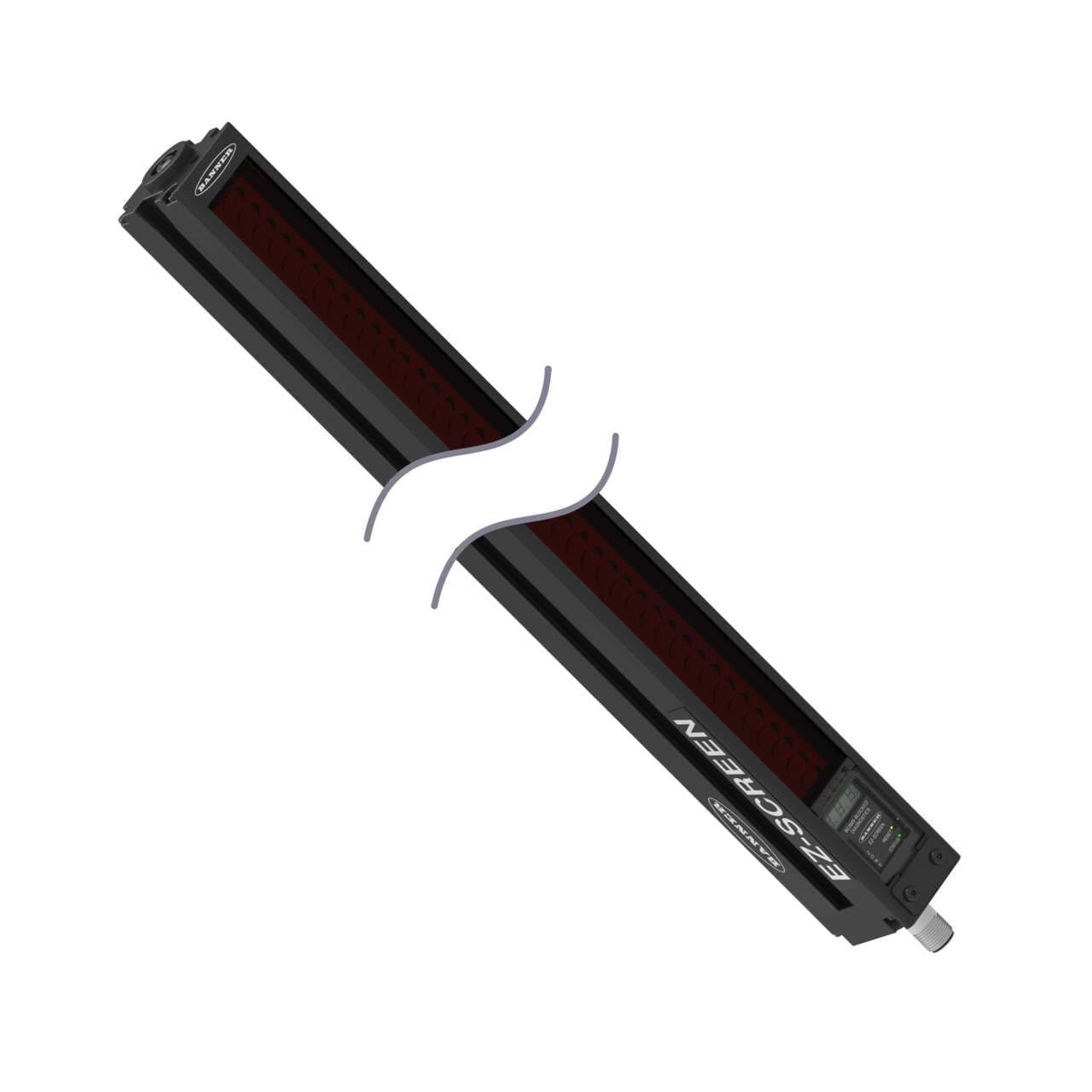

SLSRBR30-1500Q8 Banner Safety Light Curtains
Part#:SLSRBR30-1500Q8
Alt. Part#:42340
Manufacturer:Banner
Category:Safety Light Curtains
Product Lifecycle:Active
Product description
EZ-SCREEN Remote Blanking Receiver; Resolution: 30 mm; Range: 18 m (60 ft); Defined Area: 1500 mm (59.1 in); Housing Length: 1569 mm (61.8 in); Connection: 8-pin M12 Connector
Product Details
- Weight 4989.512 g
- Country Of Origin MX
- Feature: Integral Muting No
- Feature: ESD Safe No
- Test Input No
- Feature: End-to-End Sensing No
- Housing Material Aluminum; Zinc; Acrylic
- Supply Current 275 mA max.
- Trip/Latch Output Selectable
- Fault Output No
- Short Protection Yes
- OSSD Rating 24 V dc at 0.5 A each
- Auxiliary Output Yes
- Vibration 10-55 Hz at 0.35 mm
- System Type Receiver
- Shock 10g at 16ms (6000 cycles)
- Scan Code Selectable
- Electrical Safety Class III
- SIL Rating SIL3; CL3
- Recovery Time 25-152 / 81-495
- Response Time 27
- Reduced Resolution Yes
- PL Rating Ple
- Operating Temperature 0 to +55 deg. C; RH 95%
- Resolution (mm) 30
- Operating Voltage 24 V dc +/- 15%
- Operating Distance (m) 0.1 - 18
- Number of Pins (Receiver/Emitter) 8
- IP Rating IP65
- low-profile No
- Fixed Blanking Yes
- Housing Finish Yellow Polyester
- External Monitoring Device 1 or 2 Channel
- Defined Area Height (mm) 1500
- Connector Type M12
- Safety Level Type 4
- Dimensions WxD (mm) 36 x 45.2
- Effective Aperture Angle Type 4 Per IEC 61496-2
- Overall Length (mm) 1569
- Primary Housing Material Aluminum
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of SLSRBR30-1500Q8 on Powermatic Associates is $2,880.00. Order now.
About the product
Banner Engineering SLSRBR30-1500Q8 is a safety light curtain designed for hand detection with a resolution of 30mm and a protective height of 1500mm. This component of the SLS series features an aluminium housing with an acrylic lens and die-cast zinc end caps, ensuring durability. It is pre-equipped with an 8-pin Euro-style M12 connector for straightforward integration. The yellow housing is designed to operate within an ambient air temperature range of 0 to +55°C and is protected against dust and low-pressure water jets with an IP65 rating. The device requires a 24Vdc supply voltage and offers a sensing distance between 10cm and 18m. It includes two digital outputs (24Vdc; 500mA; sourcing; redundant OSSD solid-state outputs) and one digital output (24Vdc; 75mA; sourcing/PNP transistor) for versatile connectivity. Additionally, it features one digital input (10Vdc-30Vdc) for EDM and one for RESET functions. With a response time of 27ms, a net width of 36mm, a net height of 1569mm, and a net depth of 46mm, this safety light curtain is designed for efficient and effective hand protection in a variety of industrial settings.
