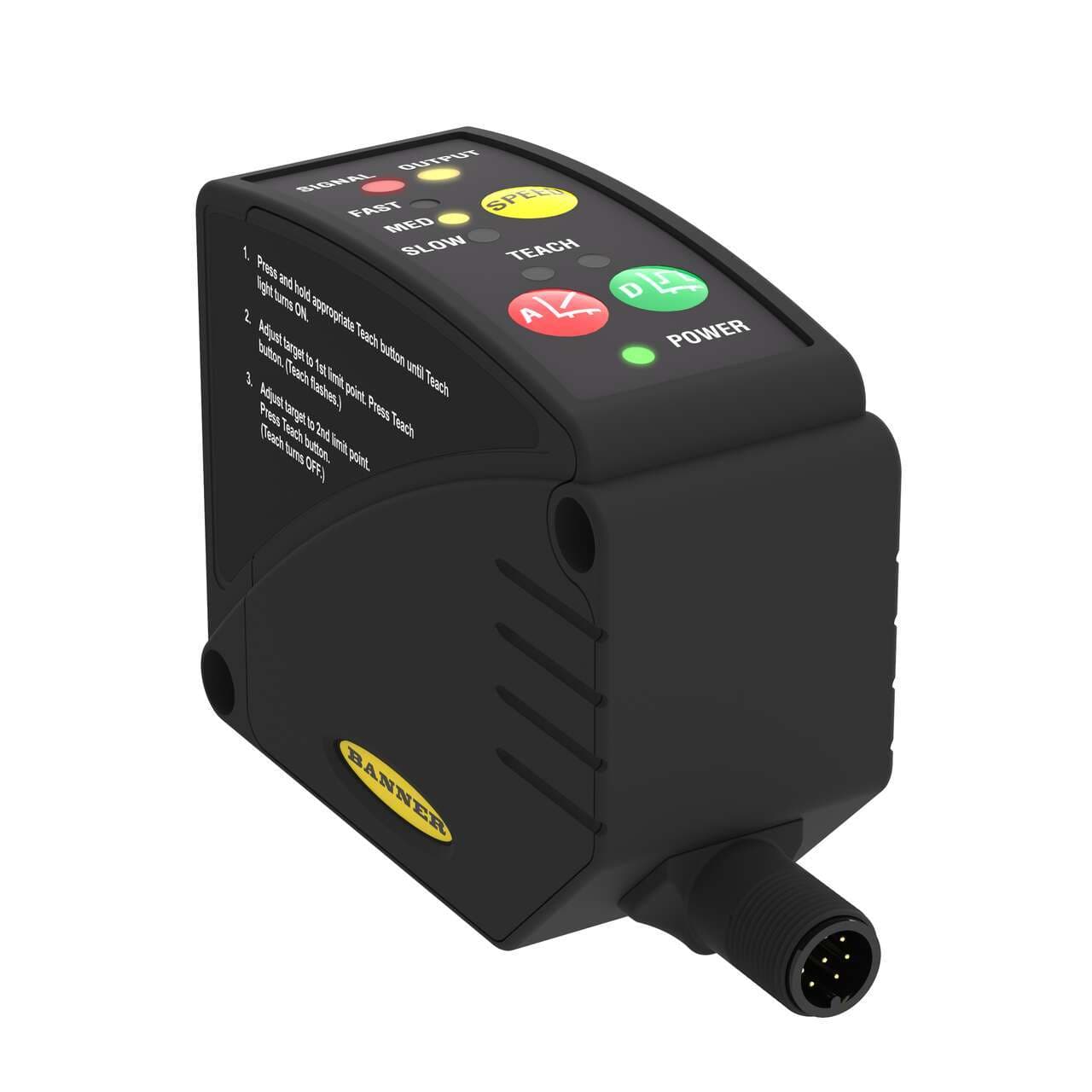

LT3PIQ Banner Optical Sensors

Product Details

• Weight
  190.50864 g
• Country Of Origin
  US
• Sensing distance
  30cm...5m
• Digital outputs
  1 x digital output (PNP transistor)
• Product series / family name
  L-GAGE series
• Design
  diffuse time-of-flight system
• Wavelength
  658 nm
• Ambient air temperature for operation
  +50 °C
• Sub-range name
  LT3
• Connection type
  Pre-equipped with 8-pin Euro-style M12 connector
• Material
  ABS housing Acrylic window
• Primary brand
  Banner Engineering
• Functions
  Class 2 Laser photo-electric distance sensor/transmitter green LED (power ON) yellow LED (output state) TEACH mode
• Light Color
  Visible red
• Protection functions
  Short-circuit
• Main function
  Sensor (Distance)
• Supply voltage (DC)
  12Vdc-24Vdc
• Shape
  Rectangular
• Analog outputs
  1 x analog output (4-20mA)
• Order code / Manufacturer SKU
  65513
Degree of protection
IP67 NEMA 6
Primary Housing Material
ABS
Analog Resolution/Discrete Repeatability
1 to 1.25 at slow response speed
Sensing Beam Wavelength (nm)
658
Minimum Window Size (mm)
20
Max Measurement Range
>1 m - <=20 m
Input/Output
Analog & Discrete
Delay at Power-up (ms)
1000
Output Protection
Protected against short circuit conditions
Warm-up Time (minutes)
30
Sensing Beam
Visible Red Laser
Analog Output Configuration
4-20 mA
Laser Classification
Class 2
Max Discrete (Switched) Output (mA)
100
Spot Size (@ Reference Distance)
6 mm
Sensing Mode (Detailed)
Time of Flight
Quick Disconnect Type
M12 (Euro)
Temperature Effect (mm/°C)
2 mm/°C
Power
DC
Minimum Sensing Distance (mm)
300
Output Saturation Voltage PNP Outputs
< 1.2 V at 10 mA; < 1.6 V at 100 mA
RS-232
No
PC Configurable
No
Indicator
LED(s)
Number of Pins
8
NEMA Rating
NEMA 6
Max Ambient Light (Lux)
5000
Housing Style
Rectangular
Max Sensing Distance (mm)
5000
Discrete (Switched) Outputs
1 PNP
Minimum Response Time (ms)
1
Max Off-state Leakage Current (µA)
5
Device Type
Sensor
Connection
Integral QD
Adjustments
Push Button; Remote Teach
Max Operating Temperature (°C)
50
Laser Control
Yes
Sensing Mode (General)
Proximity
Power Supply
12-24 V dc
Analog Current Output Rating
1 kΩ max @24 V dc, max load resistance = [(Vcc-4.5 V)/0.02 A] Ω
Window Material
Acrylic
1-wire Serial Interface
No
PROFINET
No
Color Sensitivity (Typical)
90% white to 18% gray: < 10 mm; 90% white to 6% black: < 20 mm
IO Link
No
Profibus
No
Typical Laser Lifetime (Hours)
75000
RS-485
No
Discrete Output Hysteresis (mm)
3
Feature: Remote Teach
Yes
RS-422
No
IP Rating
IP67
Remote Teach and Laser Control Input Impedence
18 kΩ min. (65 kΩ min at 5 V dc)
Feature: Chemical Resistant
No
Power/Current Consumption (exclusive of load)
108 mA max @ 24 V dc
Common Ethernet Protocol
No
SSI
No
Feature: Timing (Hold/Delay)
No
Wireless
No
Max Op. Relative Humidity Non-Condensing (%)
90 at 50°C
Analog Linearity (mm)
+/- 30 mm from 0.3 to 1.5 m; +/- 20 mm from 1.5 to 5 m
Supply Protection Circuitry
Protected against reverse polarity and transient overvoltages
