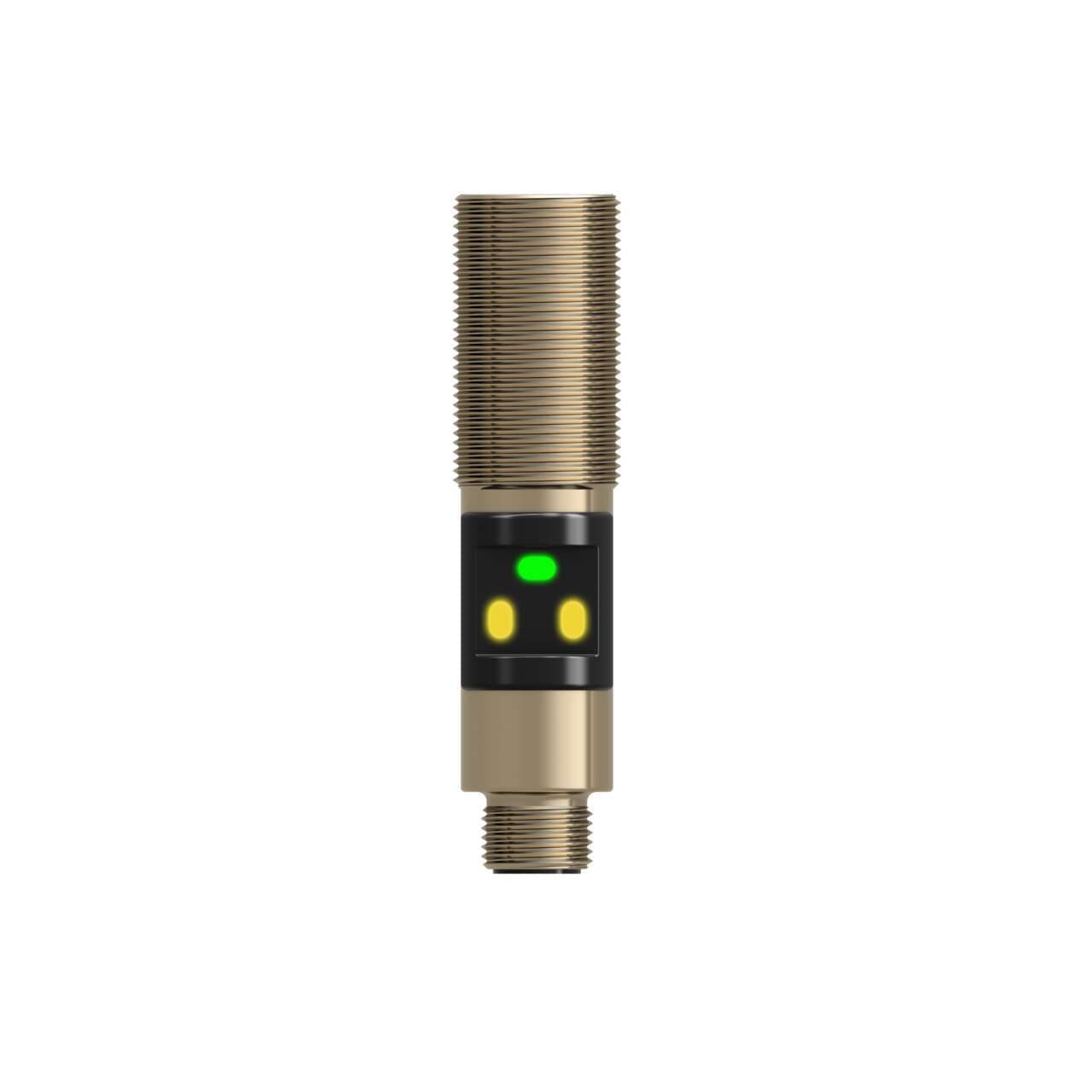

M18-3VPFF30-Q8 Banner Proximity Sensors
Part#:M18-3VPFF30-Q8
Alt. Part#:800540
Manufacturer:Banner
Category:Proximity Sensors
Product Lifecycle:Active
Product description
M18-3 Series: Nickel-Plated Brass: Fixed Field; Range: 30 mm; Input 10-30 V dc; Outputs: Complementary PNP; 4-pin M12 Integral QD
Product Details
- Weight 18.14368 g
- Country Of Origin CN
- Sensing Mode (General) Proximity
- Special Feature: Intrinsically Safe No
- Delay at Power-up (ms) 100
- Feature: Timing (Hold/Delay) No
- Outputs PNP
- Special Feature: Water Detection No
- Special Feature: Remote Teach No
- Indicator LEDs
- IO Link No
- Power DC
- Power Supply/Supply Voltage 10-30 V dc
- Repeatability (µs) 100
- Barrel Diameter (mm) 18
- Sensing Mode (Detailed) Background Suppression (Fixed)
- Connection Integral QD
- Sensing Beam Wavelength 624
- Opposed Mode Emitter/Receiver N/A
- Feature: Health/ Marginal Signal Output Yes
- Max Op. Relative Humidity [%] 95% @ 50°C
- Small Visible Spot LED
- Quick Disconnect Type M12 (Euro)
- Number of Pins 4
- Primary Housing Material Nickel-Plated Brass
- Sensing Beam Visible Red LED
- Input/Output Discrete
- Min Op. Temp. (°C) -40
- Output response time (ms) 1.5
- NEMA Rating N/A
- Adjustments N/A
- Max Sensing Distance (mm) 30
- Max Op. Temp. (°C) 70
- Lens Material Acrylic
- Feature: Chemical Resistant No
- Housing Style Barrel
- Operation Light/Dark Operate
- IP Rating IP67, IP69
- Feature: Hazardous Area No
- Feature: Audible No
- Feature: Encapsulated No
- Feature: Washdown Rated Yes
- DeviceNet No
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of M18-3VPFF30-Q8 on Powermatic Associates is $118.00. Order now.
About the product
Banner Engineering M18-3VPFF30-Q8 is a fixed-field photo-electric sensor from the M18-3 (Nickel-plated brass) series, designed with a background/foreground suppression system. It features a visible red light with a wavelength of 624 nm and is housed in a nickel-plated brass with an acrylic lens. This sensor is shaped in an M18 cylindrical threaded/barrel form and comes pre-equipped with a 4-pin Euro-style M12 connector. It operates on a supply voltage range of 10Vdc to 30Vdc, with nominal voltages of 12Vdc and 24Vdc. The M18-3VPFF30-Q8 can function within an ambient air temperature range of -40 to +70 degrees Celsius and offers a degree of protection rated at IP67 and IP69K. It supports both Light-ON and Dark-ON operating modes, has a thread size of M18, and provides a sensing distance of 30mm. Additionally, it features 1 x digital output (PNP transistor; complementary NO/NC) with a response time of 1.5ms / 0.0015 s.
