M18-4VNRL-Q8 Banner Proximity Sensors
Part#:M18-4VNRL-Q8
Alt. Part#:95497
Manufacturer:Banner
Category:Proximity Sensors
Product Lifecycle:Active
Product description
M18-4 Series: Stainless: Receiver; Range: 25 m; Input: 10-30 V dc; Outputs: Complementary NPN; 4-pin M12 Integral QD
Product Details
- Weight 22.6796 g
- Country Of Origin CN
- Sensing Beam Visible Red LED
- Power Supply/Supply Voltage 10-30 V dc
- Special Feature: Remote Teach No
- Max Op. Relative Humidity [%] 95% @ 50°C
- Feature: Audible No
- Input/Output Discrete
- Max Op. Temp. (°C) 70
- NEMA Rating N/A
- Feature: Encapsulated No
- Housing Style Barrel
- Quick Disconnect Type M12 (Euro)
- Special Feature: Water Detection No
- Feature: Washdown Rated Yes
- Power DC
- Operation Light/Dark Operate
- IP Rating IP67, IP69
- Feature: Ecolab Certified Yes
- Primary Housing Material Stainless Steel
- Special Feature: Intrinsically Safe No
- Lens Material Acrylic
- Feature: Chemical Resistant Yes
- Max Sensing Distance (mm) 25000
- Output response time (ms) 1.5
- Indicator LEDs
- DeviceNet No
- Outputs NPN
- Repeatability (µs) 170
- Adjustments N/A
- Feature: Hazardous Area No
- Feature: Timing (Hold/Delay) No
- Sensing Mode (Detailed) Receiver
- Sensing Mode (General) Opposed
- Min Op. Temp. (°C) -40
- Connection Integral QD
- Delay at Power-up (ms) 100
- Number of Pins 4
- Opposed Mode Emitter/Receiver Receiver
- Barrel Diameter (mm) 18
- IO Link No
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of M18-4VNRL-Q8 on Powermatic Associates is $92.00. Order now.
About the product

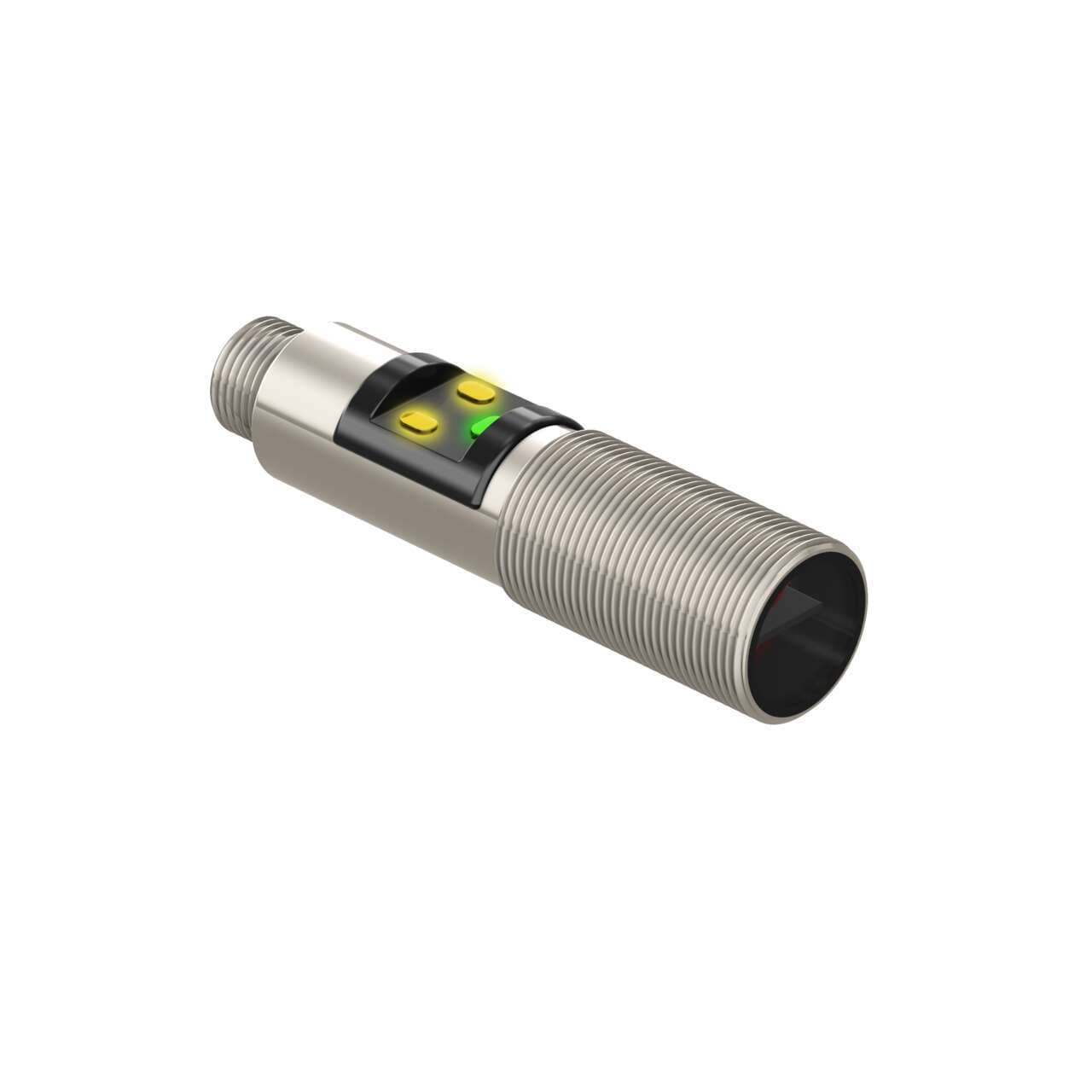

Banner Engineering M18-4VNRL-Q8 is a photo-electric sensor designed as part of the M18-3 (stainless steel) series. This sensor functions as a receiver alone within a through-beam system or opposed mode. It features an M18 cylindrical threaded/barrel shape with a stainless steel housing and an acrylic lens. It comes pre-equipped with a 4-pin Euro-style M12 connector for connectivity. The sensor operates on a supply voltage range of 10Vdc-30Vdc, with nominal values of 12Vdc and 24Vdc. It is designed to function within an ambient air temperature range of -40 to +70°C. The M18-4VNRL-Q8 offers a degree of protection rated at IP67 and IP69K, ensuring its operation in various environmental conditions. It supports both Light-ON and Dark-ON operating modes, has a thread size of M18, and can sense objects up to a distance of 25m. This sensor features 1 x digital output (NPN transistor; complementary NO/NC) and boasts a response time of 1.5ms / 0.0015 s.
