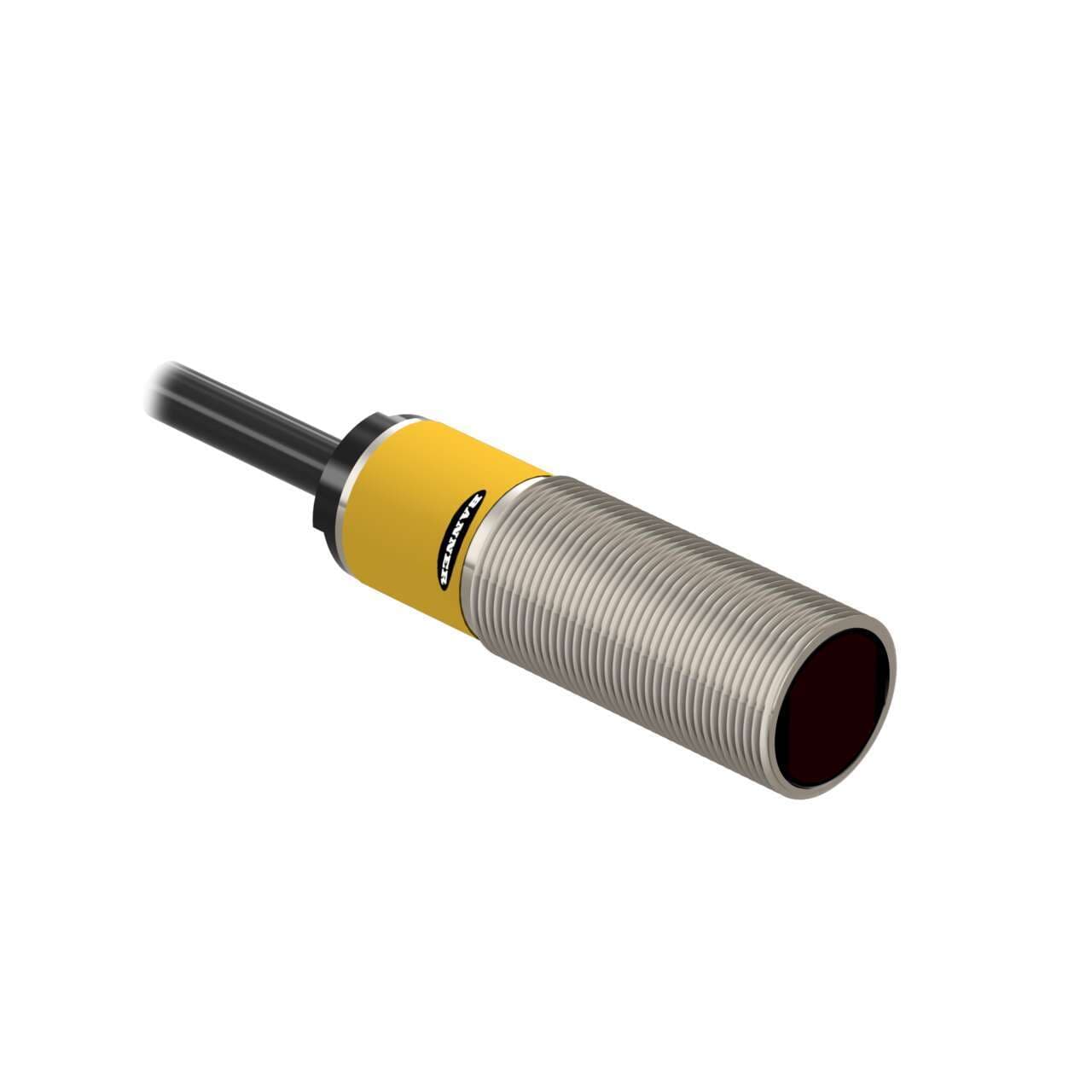

M18SP6DLQ Banner Retroreflective Sensors

Product Details

• Weight
  99.79024 g
• Country Of Origin
  MX
• Product series / family name
  EZ-BEAM series
• Main function
  Sensor (Photo-electric)
• Sub-range name
  M18 series
• Design
  diffuse mode
• Primary brand
  Banner Engineering
• Supply voltage (DC)
  10Vdc-30Vdc (12Vdc / 24Vdc nom.)
• Shape
  Cylindrical threaded/barrel
• Functions
  Photo-electric sensor green LED (power ON) yellow LED (output state)
• Light Color
  Infrared (IR)
• Connection type
  Pre-equipped with 4-pin Euro-style M12 connector
• Material
  Stainless steel housing Acrylic lns.
• Sensing distance
  300mm
• Response time
  3ms / 0.003 s
• Order code / Manufacturer SKU
  48667
• Thread size
  M18
• Degree of protection
  IP69K NEMA 6P
• Operating mode
  Light-ON Dark-ON
• Ambient air temperature for operation
  -40...+70 °C
Digital outputs
1 x digital output (PNP transistor)
Compliant with standard(s)
CE
Input/Output
Discrete
Min Op. Temp. (°C)
-40
Lens Material
Acrylic
Sensing Mode (Detailed)
Diffuse
Quick Disconnect Type
M12 (Euro)
Special Feature: Intrinsically Safe
No
Sensing Beam
Infrared LED
Output response time (ms)
3
Number of Pins
4
Housing Style
Barrel
Max Op. Temp. (°C)
70
NEMA Rating
NEMA 6P
Opposed Mode Emitter/Receiver
N/A
Sensing Mode (General)
Proximity
Outputs
PNP
Power Supply/Supply Voltage
10-30 V dc
Special Feature: Remote Teach
No
Power
DC
Operation
Light/Dark Operate
Repeatability (µs)
750
DeviceNet
No
Max Sensing Distance (mm)
300
Special Feature: Water Detection
No
Delay at Power-up (ms)
100
Feature: Encapsulated
Yes
Feature: Health/ Marginal Signal Output
Yes
Primary Housing Material
Stainless Steel
Connection
Integral QD
Max Op. Relative Humidity [%]
90% @ 50°C
Feature: Washdown Rated
Yes
Feature: Chemical Resistant
Yes
Feature: Hazardous Area
No
IO Link
No
Adjustments
N/A
Indicator
LEDs
Feature: Audible
No
Barrel Diameter (mm)
18
IP Rating
IP69
Feature: Timing (Hold/Delay)
No
