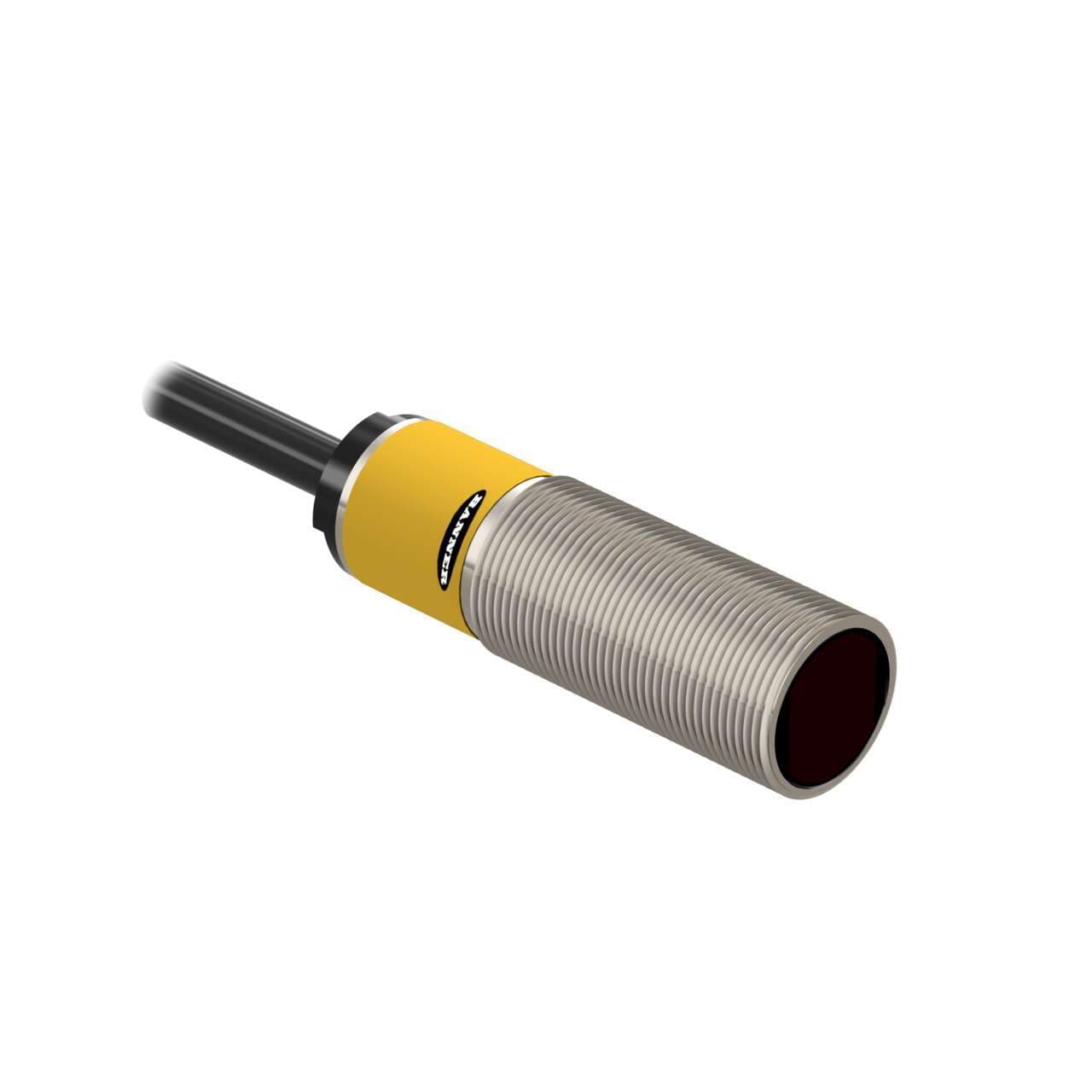

M18SP6L Banner Retroreflective Sensors

M18SP6L on Powermatic Associates
Banner

Part#:M18SP6L

Alt. Part#:48654

Manufacturer:Banner

Category:Retroreflective Sensors

Product Lifecycle:Active

Product description

EZ-BEAM M18 Series: Retro; Range: 2 m; Input: 10-30 V dc; Output: Complementary PNP; 2 m (6.5 ft) Cable

Product Details

  • Weight
    199.58048 g
  • Country Of Origin
    MX
  • Primary brand
    Banner Engineering
  • Sub-range name
    M18 series
  • Sensing distance
    2m
  • Thread size
    M18
  • Main function
    Sensor (Photo-electric)
  • Supply voltage (DC)
    10Vdc-30Vdc (12Vdc / 24Vdc nom.)
  • Light Color
    Infrared (IR)
  • Operating mode
    Light-ON Dark-ON
  • Product series / family name
    EZ-BEAM series
  • Design
    retro-reflective mode
  • Connection type
    Pre-wired with 6.5ft / 2m cable terminated with bare end flying leads
  • Ambient air temperature for operation
    -40...+70 °C
  • Functions
    Photo-electric sensor green LED (power ON) yellow LED (output state)
  • Shape
    Cylindrical threaded/barrel
  • Response time
    3ms / 0.003 s
  • Order code / Manufacturer SKU
    48654
  • Digital outputs
    1 x digital output (PNP transistor)
  • Material
    Stainless steel housing Acrylic lns.
  • Degree of protection
    IP69K NEMA 6P
  • Compliant with standard(s)
    CE
  • Input/Output
    Discrete
  • Min Op. Temp. (°C)
    -40
  • NEMA Rating
    NEMA 6P
  • Feature: Encapsulated
    Yes
  • Primary Housing Material
    Stainless Steel
  • Connection
    Cable
  • Max Op. Relative Humidity [%]
    90% @ 50°C
  • Feature: Chemical Resistant
    Yes
  • Sensing Beam
    Infrared LED
  • Quick Disconnect Type
    No QD
  • Special Feature: Water Detection
    No
  • Indicator
    LEDs
  • Sensing Mode (General)
    Retroreflective
  • Operation
    Light/Dark Operate
  • Number of Pins
    4
  • Opposed Mode Emitter/Receiver
    N/A
  • Power
    DC
  • Output response time (ms)
    3
  • Delay at Power-up (ms)
    100
  • Barrel Diameter (mm)
    18
  • Feature: Health/ Marginal Signal Output
    Yes
  • Housing Style
    Barrel
  • Max Op. Temp. (°C)
    70
  • Repeatability (µs)
    750
  • Adjustments
    N/A
  • Sensing Mode (Detailed)
    Non-Polarized
  • Power Supply/Supply Voltage
    10-30 V dc
  • IP Rating
    IP69
  • Feature: Timing (Hold/Delay)
    No
  • Max Sensing Distance (mm)
    2000
  • Special Feature: Intrinsically Safe
    No
  • Lens Material
    Acrylic
  • Feature: Hazardous Area
    No
  • Cable Length (m)
    2
  • Outputs
    PNP
  • Special Feature: Remote Teach
    No
  • Feature: Audible
    No
  • Feature: Washdown Rated
    Yes
  • DeviceNet
    No
  • IO Link
    No

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of M18SP6L on Powermatic Associates is $104.00. Order now.

About the product

Banner Engineering M18SP6L is a photo-electric sensor from the M18 series designed in a retro-reflective mode with an infrared (IR) light color. This sensor features an M18 cylindrical threaded/barrel shape with a stainless steel housing and an acrylic lens. It is pre-wired with a 6.5ft / 2m cable terminated with bare end flying leads for connection. The M18SP6L operates on a supply voltage of 10Vdc-30Vdc (12Vdc / 24Vdc nom.) and can function within an ambient air temperature range of -40 to +70°C. It offers a degree of protection rated at IP69K NEMA 6P, ensuring its durability in various environments. The operating modes include Light-ON and Dark-ON, with a thread size of M18 and a sensing distance of up to 2m. It also features 1 x digital output (PNP transistor; complementary NO/NC) and boasts a quick response time of 3ms / 0.003 s.
