MQDEC-403RS Banner Cordsets
Product Details
- Weight 63.50288 g
- Country Of Origin US
- Shield/No Shield No Shield
- Current Rating (A) 4.0
- Secondary Coupling Method M12 Single Key
- Minimum Temp. (°C) -40
- Primary AWG 22
- Cable Jacket Color Black
- Primary Gender Female
- Oil/Grease Resistant No
- Cordset Length (m) 0.91
- Number of Contacts 4
- Secondary Connector Type EURO
- Outside Cable Diameter (mm) 5.9
- Coupling Material/Color Nickel Plated Brass
- Primary Coupling Method M12 Single Key
- Cable Jacket Material PVC
- Primary Orientation Straight
- Secondary AWG 22
- Connector Body Material/Color PUR Black
- Primary Connector Type EURO
- Secondary Gender Male
- Maximum Temp. (°C) 105
- Primary Number of Conductors 5
- Feature: Hazardous Area No
- Number of Connectors 2
- IP Rating IP67
- Secondary Orientation Right Angle
- Trunk Length (m) No Trunk
- Voltage Rating (V) 250 V ac/dc
- Secondary Number of Conductors 4
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of MQDEC-403RS on Powermatic Associates is $46.00. Order now.
About the product

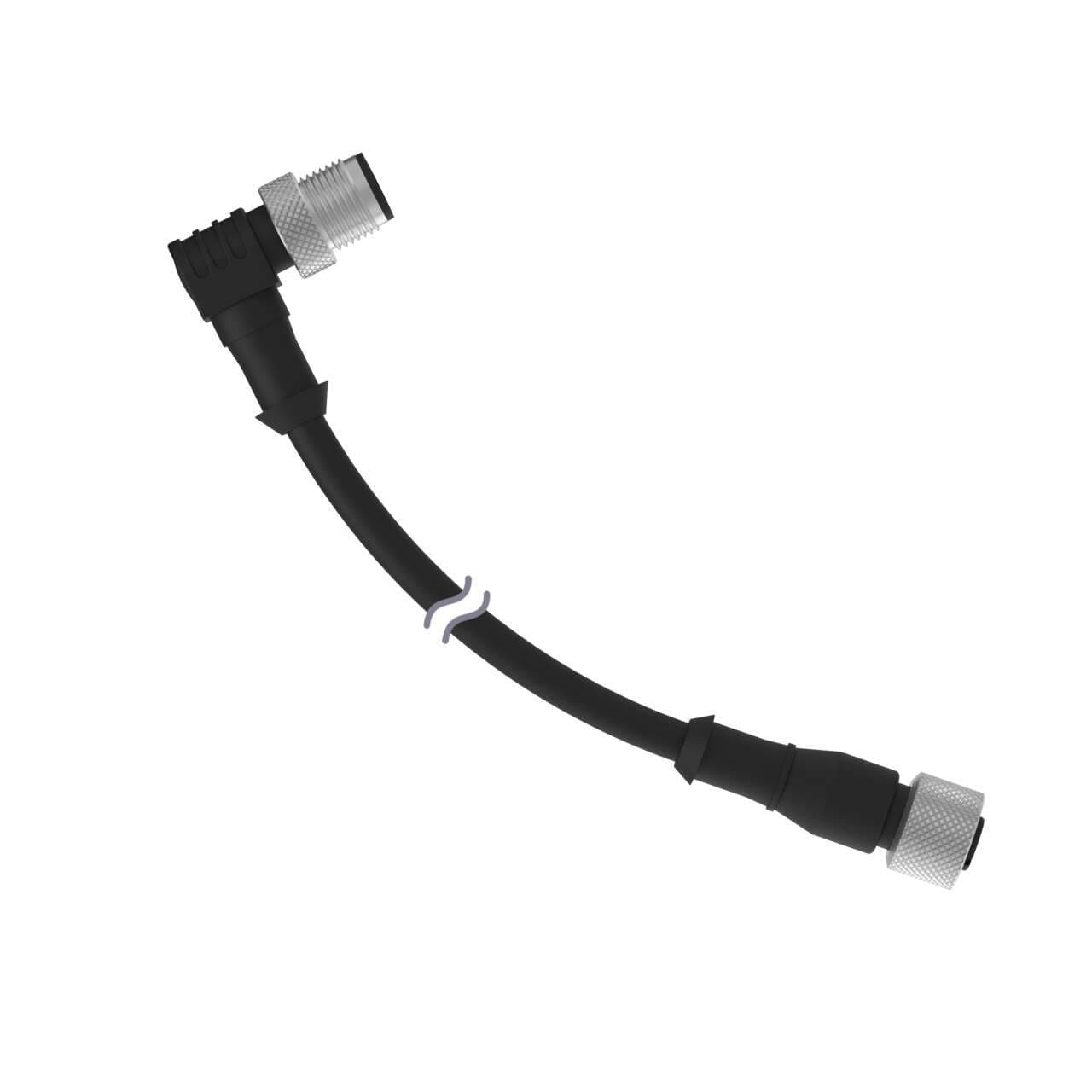

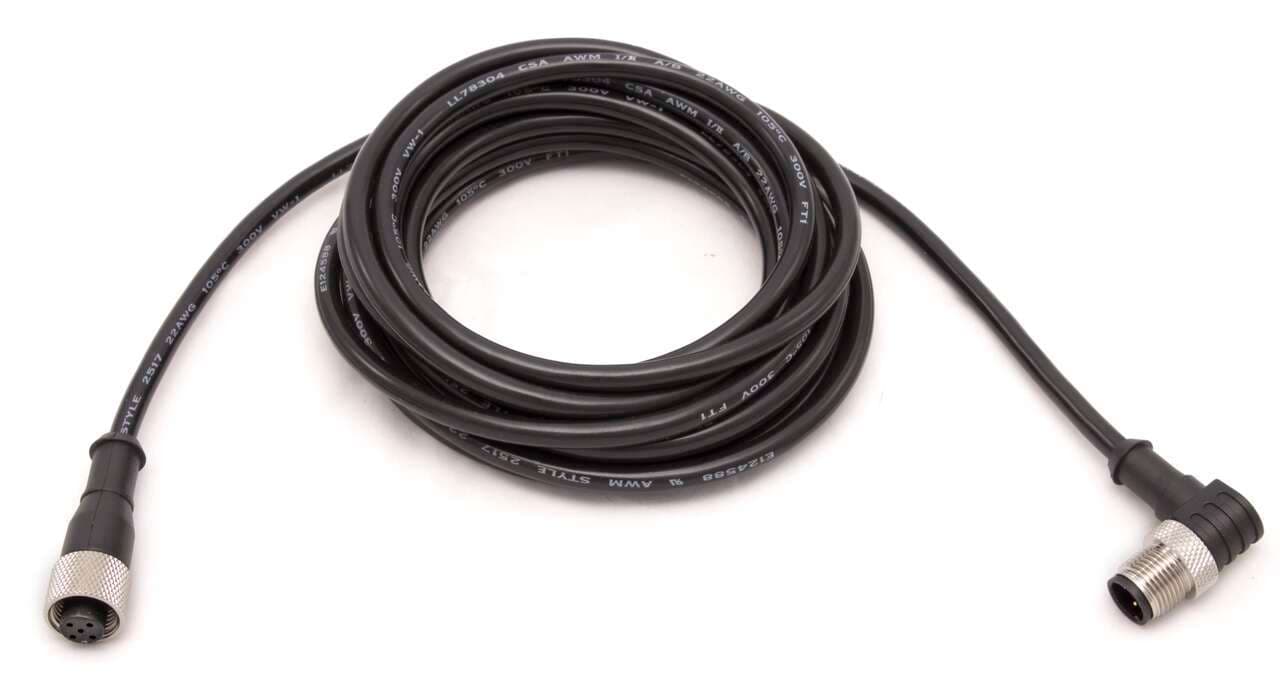

Banner Engineering MQDEC-403RS is a pre-assembled cable/cordset designed for various automation applications. It features a double-ended design with a 5-pin Euro-style M12 female connector and a 4-pin Euro-style M12 male right-angled connector. The cable has a diameter of 5.9mm and is encased in black sheathing made from PVC, ensuring durability. The connectors are made from chrome-plated brass, enhancing their longevity and resistance to wear. This model is designed to operate within an ambient air temperature range of -40 to +105°C, making it suitable for a wide range of environmental conditions. It offers a degree of protection rated at IP67, indicating its capability to withstand dust and temporary immersion in water. The MQDEC-403RS has a length of 910mm and is rated for a voltage of 250Vac, making it a versatile choice for connecting various devices within an automation system.
