Part#:OS80K3MX2GRQ

Manufacturer:Banner

Category:Electronic Components

Product Lifecycle:Active

Product description

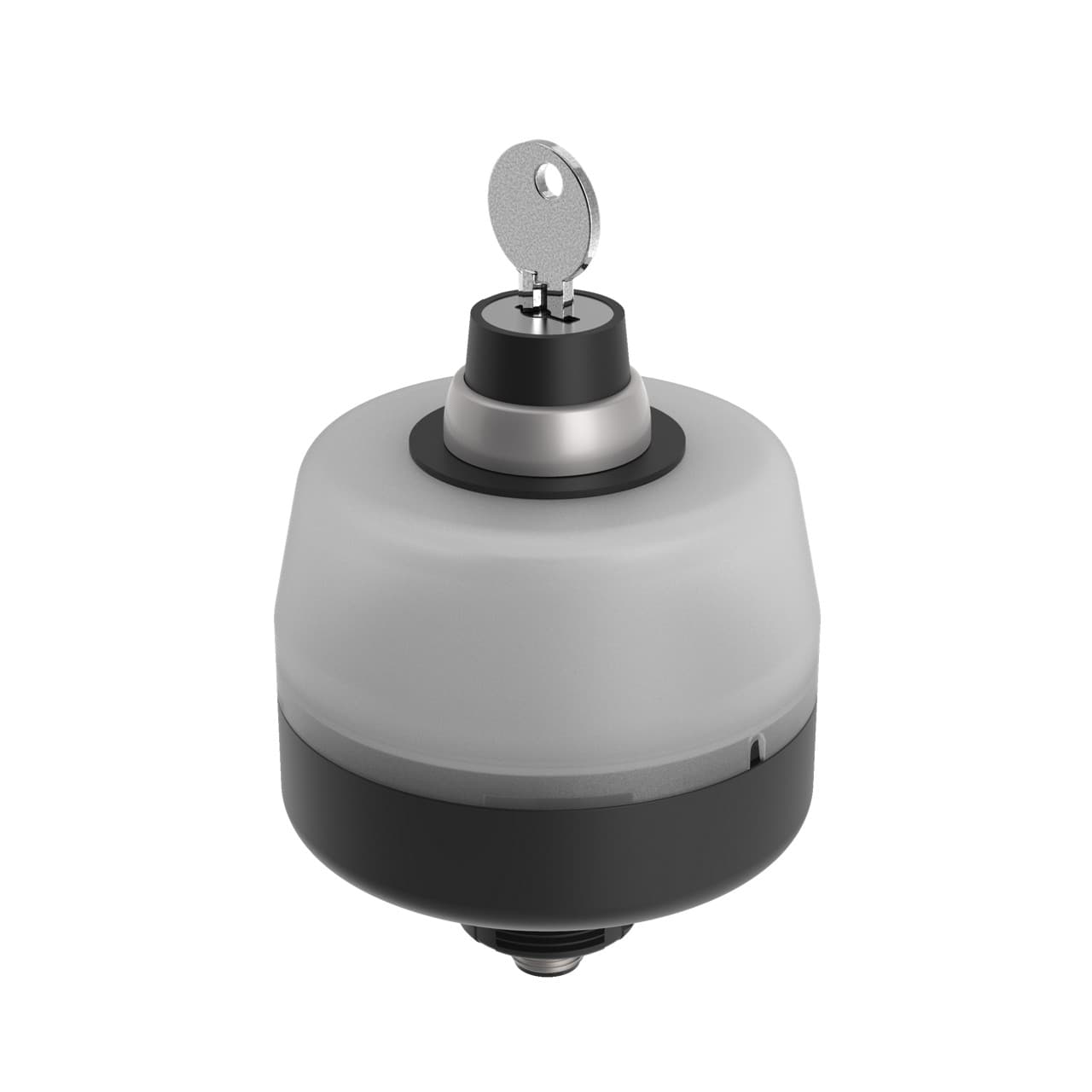

OS80 Operator Station: Key Switch; 3-Position, On-Off-Momentary; 2-Color; Voltage: 12-30 V dc, Housing: Polycarbonate; IP40, Output: PNP 2NC; Colors: Green Red, Euro 5-pin Integral Connector

Product Details

  • Color Input Control
    Individual (One wire/color, same number of colors as input wires)
  • Operation
    Normally Open/Normally Closed
  • Max Op. Temperature (°C)
    55
  • Feature: Audible
    No
  • Actuation
    Yes
  • Color Option 1
    Green
  • Max Output Response Time (ms)
    50
  • Secondary Material
    Polyamide
  • Environmental Rating
    IP40
  • Feature: Chemical Resistant
    No
  • Number of Colors / Segments
    2
  • Color Option 2
    Red
  • Storage Temp (°C)
    -40 to 70
  • Modbus RTU
    No
  • Mounting Thread
    M30 x 1.5
  • Supply Voltage
    12-30 V dc
  • Min Op. Temperature (°C)
    -25
  • IO Link
    No
  • Housing Style
    Base Mount - Dome Window
  • Animation Option 1
    Solid On
  • Physical Dimensions (LxWxH or DxH mm)
    80.0 x 106.6
  • Feature: Quick Disconnect
    Yes
  • Power Source
    DC
  • Color Technology
    Standard LED
  • Max Current Color (mA)
    135
  • Primary Housing Color
    Black
  • Pro-Editor Compatible (Discrete)
    No
  • Primary Housing Material
    Polycarbonate
  • Quick Disconnect Type
    M12 (Euro)
  • Output Type
    PNP
  • Feature: Hazardous Area
    No
  • Activation Function
    Key Operated Selector Switch
  • Connection
    Integral QD
  • Input Type
    PNP
  • Multi-Color Device
    Single Color On
  • Power
    DC
  • Product Size (mm)
    80
  • Number of Input Pins/Conductors
    5
  • Button Operation
    Momentary and Latching
  • Wireless
    No

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
