OTBA5QD Banner Sensor Accessories
Part#:OTBA5QD
Alt. Part#:28149
Manufacturer:Banner
Category:Sensor Accessories
Product Lifecycle:Active
Product description
OTB Series: Momentary Action Touch Button w/Black F.C.; Input: 120 V ac; Upper Housing: Polysulfone; Output: E/M Relay (SPDT); Mini-style Integral QD
Product Details
- Weight 221.352896 g
- Country Of Origin MX
- Actuation Yes
- Cable Length (m) 2
- Input Type AC
- Min Op. Temperature (°C) -20
- Sensing Mode (General) Single Point Optical
- Number of Input Pins/Conductors 5
- Max Op. Relative Humidity Non-Condensing (%) 90% @ 50°C
- Button Operation Momentary
- Power Source AC
- Non-Illuminated Yes
- Connection Integral QD
- Max Output Response Time (ms) 100
- Feature: Chemical Resistant No
- Activation Function Optical
- Environmental Rating IP66
- Field Cover Color Black
- Feature: Hazardous Area No
- Housing Style Base Mount - Saddle
- Output Type SPDT e/m Relay
- Max Op. Temperature (°C) 50
- Secondary Material Thermoplastic
- Power AC
- Product Size (mm) Other
- Number of Beams 1
- IO Link No
- Primary Housing Material Thermoplastic Polysulfone
- Max Input Response Time (ms) 100
- Primary Housing Color Black
- Wireless No
- Mounting Thread M30 x 1.5
- NEMA Type and UL Type Rating NEMA 1, 3, 4, 4X, 12, 13
- Feature: Quick Disconnect Yes
- Pro-Editor Compatible (Discrete) No
- Feature: Audible No
- Physical Dimensions (LxWxH or DxH mm) 59.9 x 43.2 x 48.0
- Modbus RTU No
- Operation Normally Open/Normally Closed
- Supply Voltage 105-130 V ac
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of OTBA5QD on Powermatic Associates is $158.00. Order now.
About the product

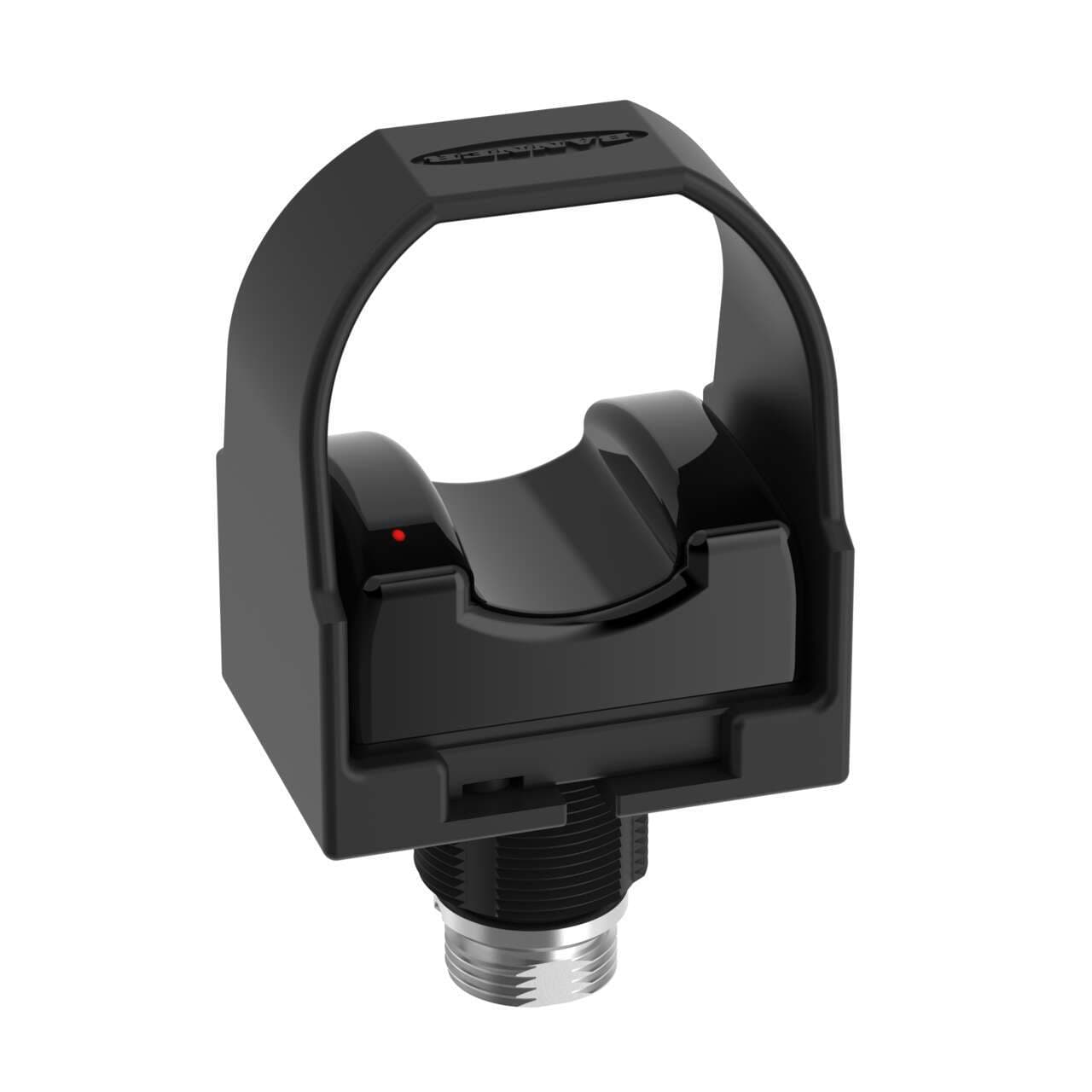

Banner Engineering OTBA5QD is a photo-electric optical touch-activated button designed for surface or base flush mounting with a 30mm hole. It operates within an ambient air temperature range of -20°C to +50°C and features a black field cover. This part is pre-equipped with a 5-pin 7/8"-16UN-2B Mini-style QD connector for connectivity and requires a supply voltage of 105Vac-130Vac (120Vac nominal). It offers a degree of protection rated at IP66, NEMA 1, NEMA 3, NEMA 4, NEMA 4X, NEMA 12, and NEMA 13. The OTBA5QD has a saddle/yoke-shaped body made from a polysulfone upper housing and a thermoplastic polyester base, with a black housing color. Its operating mode is momentary, offering NO (Normally Open) or NC (Normally Closed) functionality, and it includes 1 x digital output (SPDT / 1NO/NC relay contact type) for touch activation.
