P4OR-BC Banner Sensors & Transducers

Name: P4OR-BC
Brand: Banner

Part#:P4OR-BC

Manufacturer:Banner

Category:Sensors & Transducers

Product Lifecycle:Active

Product description

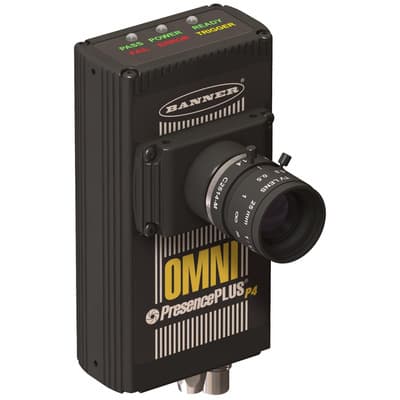

Banner Engineering P4OR-BC is a sensor designed for right-angle vision and inspection tasks, featuring a 0.3 Megapixel camera. It is part of the P4 OMNI series and is equipped for mounting via a C-mount. This sensor operates within an ambient air temperature range of 0 to +50 degrees Celsius and has a net height of 125 mm. It utilizes barcode reader OCR/OCV technology for its design and is pre-equipped with an RJ45 connector for connectivity. The P4OR-BC offers a degree of protection rated at IP20 NEMA 1 and requires a supply voltage of 10Vdc to 30Vdc, with nominal voltages of 12Vdc and 24Vdc. The sensor's housing is made of black anodized aluminum with a glass lens, measuring 67 mm in width and 56 mm in depth. For communication, it supports Ethernet, Modbus TCP, and RS-232 protocols, and includes 4 digital outputs (PNP/NPN transistor).

Product Details

Main function
Sensor (Vision)
Communication protocol
Ethernet Modbus TCP RS-232
Sub-range name
P4 OMNI
Design
barcode reader
Degree of protection
IP20 NEMA 1
Equivalent to
P4ORBC
Primary brand
Banner Engineering
Supply voltage (DC)
10Vdc-30Vdc (12Vdc / 24Vdc nom.)
Product series / family name
PresencePLUS series
Mounting mode
C-mount
Material
Black anodized Aluminium housing Glass lns.
Functions
Right-angle vision / inspection camera (0.3Mpixel) green LED (power ON) yellow LED (output state)
Digital outputs
4 x digital outputs (PNP/NPN transistors)
Ambient air temperature for operation
0...+50 °C
Net Width (mm)
67 mm
Image sensor characteristics
640x480pixels Monochrome / Grayscale sensing
Connection type
Pre-equipped with RJ45 connector
Order code / Manufacturer SKU
75396
Net Depth (mm)
56 mm
Net Height (mm)
125 mm

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
