P4OR-OC Banner Sensors & Transducers

Name: P4OR-OC
Brand: Banner

Part#:P4OR-OC

Manufacturer:Banner

Category:Sensors & Transducers

Product Lifecycle:Active

Product description

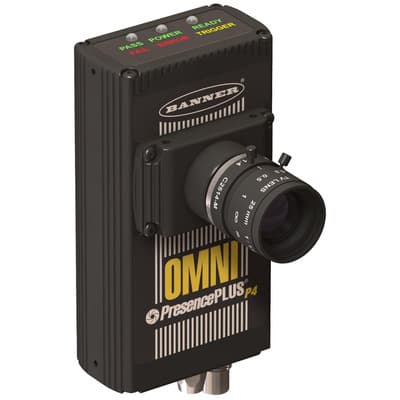

Banner Engineering P4OR-OC is a sensor from the P4 OMNI series designed for right-angle vision or inspection tasks, featuring a 0.3 Megapixel camera. It is equipped for C-mount installation and operates within an ambient air temperature range of 0 to +50 °C. This sensor has a net height of 125 mm, a width of 67 mm, and a depth of 56 mm. It comes pre-equipped with an RJ45 connector for connectivity. The P4OR-OC offers a degree of protection rated at IP20 NEMA 1 and requires a supply voltage of 10Vdc to 30Vdc, with 12Vdc or 24Vdc nominal. Its housing is made of black anodized aluminum with a glass lens. For communication, it supports Ethernet, Modbus TCP, and RS-232 protocols. Additionally, it features 4 digital outputs (PNP/NPN transistor).

Product Details

Connection type
Pre-equipped with RJ45 connector
Primary brand
Banner Engineering
Design
OCR/OCV
Material
Black anodized Aluminium housing Glass lns.
Net Height (mm)
125 mm
Main function
Sensor (Vision)
Image sensor characteristics
640x480pixels Monochrome / Grayscale sensing
Digital outputs
4 x digital outputs (PNP/NPN transistors)
Net Depth (mm)
56 mm
Communication protocol
Ethernet Modbus TCP RS-232
Net Width (mm)
67 mm
Mounting mode
C-mount
Ambient air temperature for operation
0...+50 °C
Equivalent to
P4OROC
Supply voltage (DC)
10Vdc-30Vdc (12Vdc / 24Vdc nom.)
Order code / Manufacturer SKU
79908
Product series / family name
PresencePLUS series
Sub-range name
P4 OMNI
Functions
Right-angle vision / inspection camera (0.3Mpixel) green LED (power ON) yellow LED (output state)
Degree of protection
IP20 NEMA 1

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
