PBAT43UHFTA-VL Banner Through Beam Sensors
Part#:PBAT43UHFTA-VL
Alt. Part#:88141
Manufacturer:Banner
Category:Through Beam Sensors
Product Lifecycle:Active
Product description

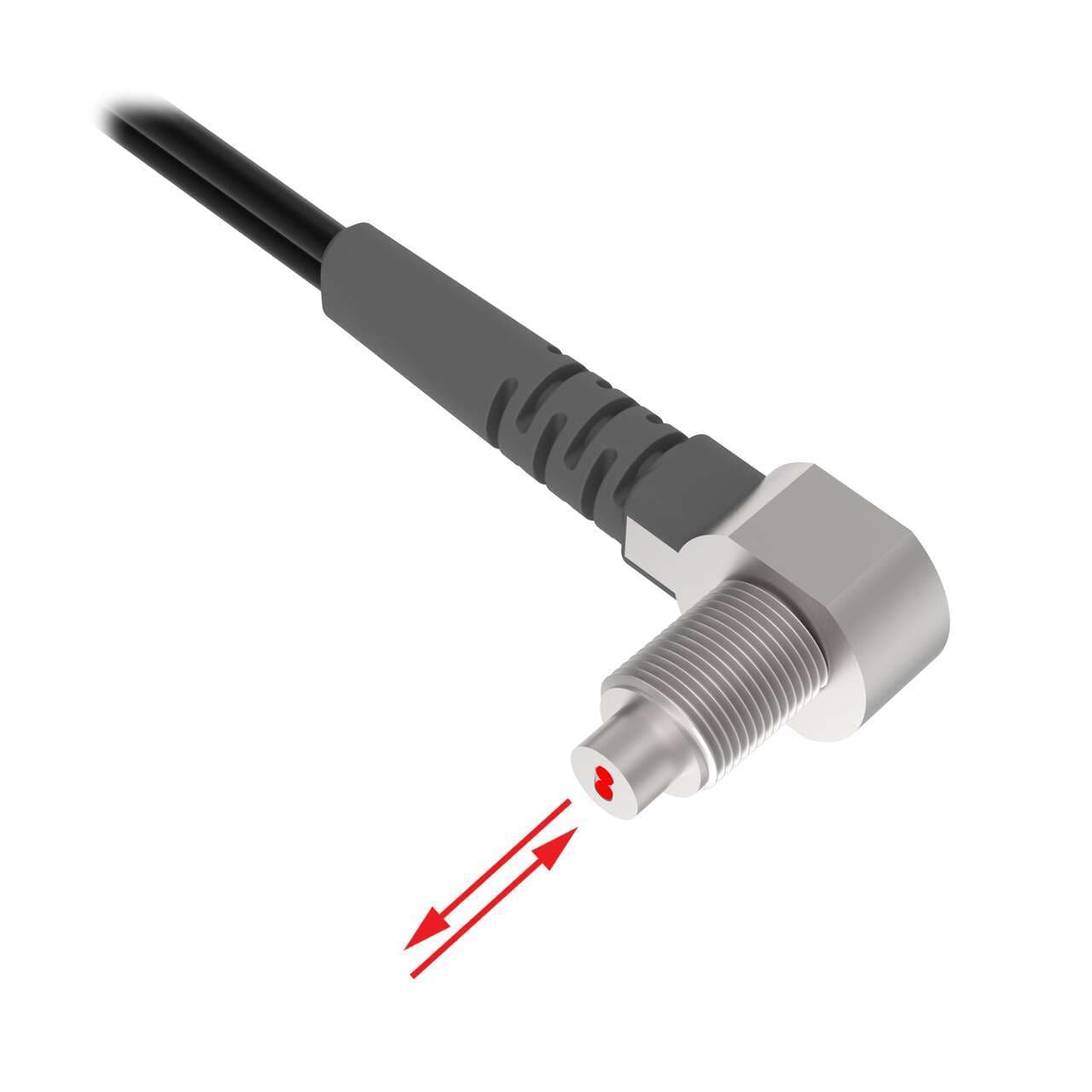

Plastic Fiber, Diffuse Reflective; Core Dia.: 1 mm; Fiber Length 1 m; Right-Angle, Thread M6; High Flex 2 mm Bend Radius, Flex Relief; Free Cut; Vantage Line
Product Details
- Weight 205.1143024 g
- Country Of Origin TW
- Main function Fiber sensor
- Shape Cylindrical (threaded) end tip
- Material Stainless steel sensing end Plastic fiber Polyethylene fiber sheath
- Sub-range name Plastic fiber - Vantage Line
- Design diffuse-reflective system flex strain relief Bifurcated fiber Side / right-angled sensing
- Order code / Manufacturer SKU 88141
- Product series / family name Fiber sensors
- Thread size M6
- Equivalent to PBAT43UHFTAVL
- Primary brand Banner Engineering
- Functions Fiber optic sensor
- Length 3ft / 1m
- Diameter 1mm fiber core
- Ambient air temperature for operation +70 °C
- Sensing Mode (General) Diffuse
- Fiber Sensing End Size 4.0 mm
- Termination Free Cut
- Fiber Optic Type Plastic
- Sensing End Segment 2 Thread
- Max Temp ( °C) 70
- Max Distance: DF-G2 (mm) 238
- Housing Style Round
- Core Diameter (mm) 1
- Feature: Chemical Resistant No
- Max Range: DF-G3 (mm) >1m - <=3m
- Beam Exit Right Angle
- Flex Relief Yes
- Sensing Mode (Detailed) Reflective
- Fiber Length (m) 1
- Sensing End Material (Specific) Stainless Steel
- Sensing End Segment 3 Ferrule
- Fiber Sensing End Tip Ferrule
- Integrated Lens No
- Measured Max Distance (mm) 147
- Fiber Sheathing Material (Jacket) Polyethylene
- Sensing End Segment 1 Angle
- Quantity Included 1
- Retractile No
- Feature: Small Object Detection No
- Max Distance: DF-G1 (mm) 147
- Feature: Extended Range No
- Max Distance: DF-G3 (mm) 1139
- Minimum Bend Radius (mm) 2
- Fiber Sensing End Size - Mounting Area M6
- Application: Liquid Level No
- Minimum Repeat Bending Endurance 1000
- Tariff Fiber Meters (fbm) 2
- Termination Type Plastic Fiber Sensors
- Application: Vacuum Feed Through None
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of PBAT43UHFTA-VL on Powermatic Associates is $98.00. Order now.
About the product
Banner Engineering PBAT43UHFTA-VL is a fiber optic sensor designed with a diffuse-reflective system and bifurcated fiber with a side / right-angled sensing orientation. It features a 1mm fiber core diameter and is part of the Plastic fiber series. The sensor has a cylindrical (threaded) end tip shape, constructed from plastic fiber with a Steelskin fiber sheath for enhanced durability. It measures 6ft / 2m in length, suitable for various industrial applications requiring precise detection and positioning.
