PBAT46TMB5MTA Banner Through Beam Sensors
Part#:PBAT46TMB5MTA
Alt. Part#:10455
Manufacturer:Banner
Category:Through Beam Sensors
Product Lifecycle:Active
Product description

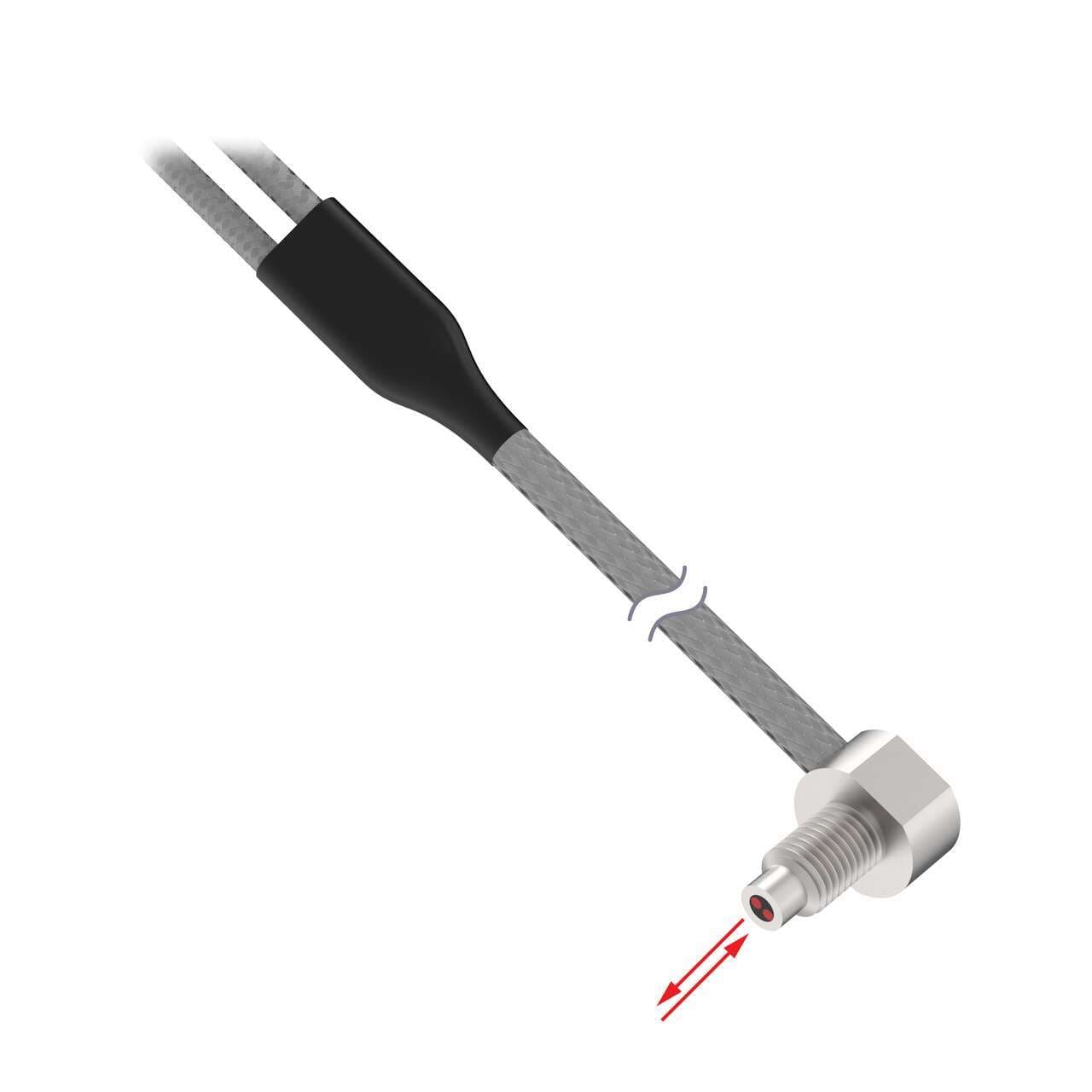

Plastic Fiber; Diffuse Reflective; Core Dia.: 1 mm; Fiber Length 2 m; Angle, Thread; Steelskin, TMB5 Termination
Product Details
- Weight 81.64656 g
- Country Of Origin JP
- Fiber Sensing End Tip Thread
- Max Range: DF-G3 (mm) >500mm - <=1000mm
- Application: Liquid Level No
- Sensing End Material (Specific) Stainless Steel
- Core Diameter (mm) 1
- Feature: Chemical Resistant No
- Max Distance: DF-G1 (mm) 105
- Fiber Sheathing Material (Jacket) STEELSKIN
- Feature: Extended Range No
- Flex Relief No
- Sensing Mode (General) Diffuse
- Sensing End Segment 1 Angle
- Feature: Small Object Detection No
- Sensing Mode (Detailed) Reflective
- Fiber Length (m) 2
- Minimum Repeat Bending Endurance 1000
- Measured Max Distance (mm) 105
- Termination Terminated
- Max Distance: DF-G3 (mm) 814
- Fiber Optic Type Plastic
- Retractile No
- Integrated Lens No
- Fiber Sensing End Size - Mounting Area M6
- Housing Style Round
- Fiber Sensing End Size 4.0 mm
- Max Temp ( °C) 70
- Tariff Fiber Meters (fbm) 4
- Quantity Included 1
- Minimum Bend Radius (mm) 12
- Termination Type Plastic Fiber Sensors
- Max Distance: DF-G2 (mm) 170
- Beam Exit Right Angle
- Sensing End Segment 2 Thread
- Application: Vacuum Feed Through None
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of PBAT46TMB5MTA on Powermatic Associates is $310.00. Order now.
About the product
Banner Engineering PBAT46TMB5MTA is a fiber optic sensor designed for diffuse-reflective system applications, featuring a flex strain relief and bifurcated fiber with side/right-angled sensing. It operates at an ambient air temperature up to +70°C. This sensor is part of the Plastic fiber (Vantage Line) series, characterized by a 1mm fiber core diameter and a 3ft / 1m length. The sensing end is made from stainless steel, while the fiber itself is plastic, and the sheath is constructed from polyethylene (PE), ensuring durability and compatibility with various environments. The cylindrical (threaded) end tip facilitates straightforward installation and integration into diverse setups.
