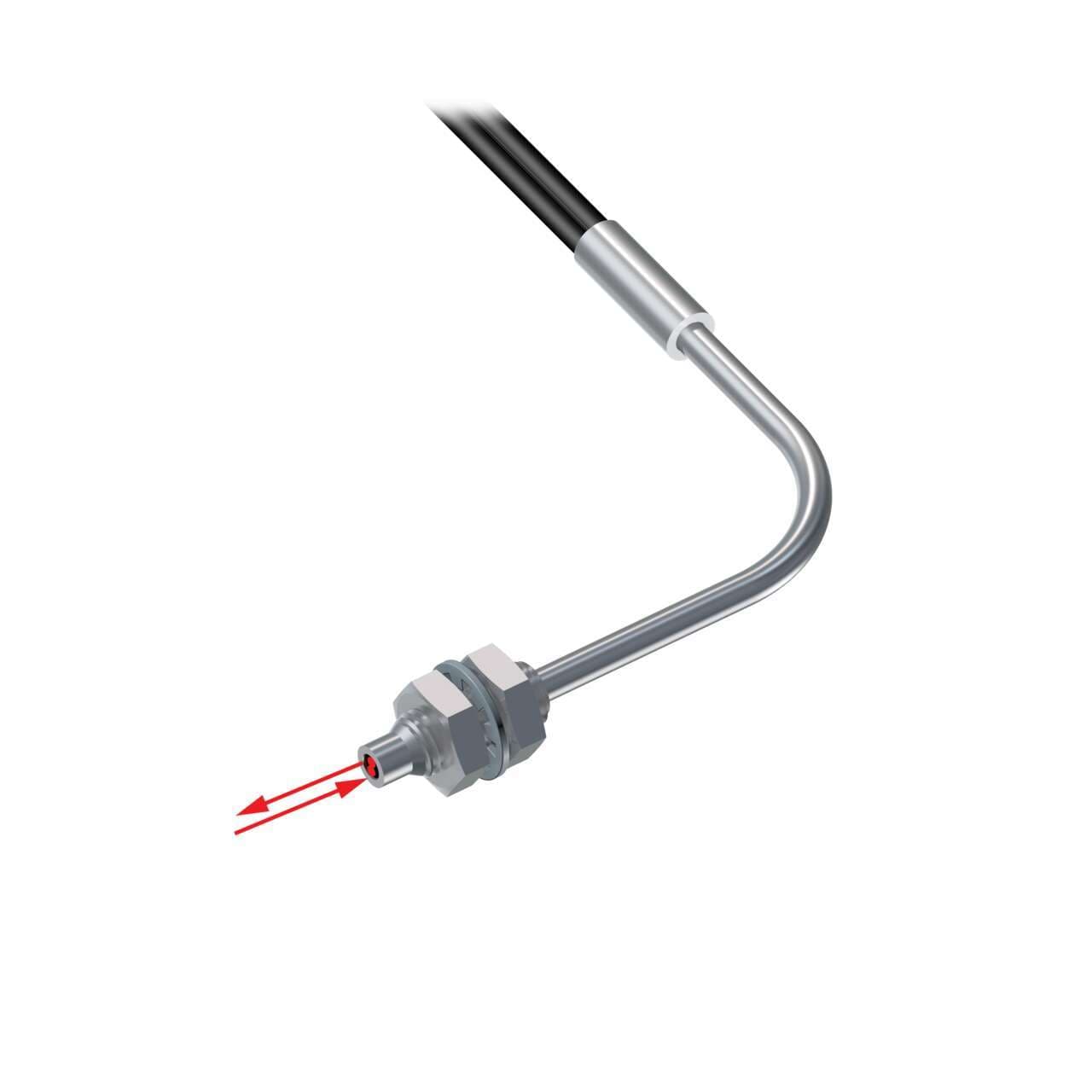

PBAT46U Banner Through Beam Sensors

PBAT46U on Powermatic Associates
Banner
  • PBAT46U
  • PBAT46U

Part#:PBAT46U

Alt. Part#:42843

Manufacturer:Banner

Category:Through Beam Sensors

Product Lifecycle:Active

Product description

Plastic Fiber, Diffuse Reflective; Core Dia.: 1 mm; Fiber Length 2 m; Angle, Thread; Free cut

Product Details

  • Weight
    54.43104 g
  • Country Of Origin
    JP
  • Sensing Mode (Detailed)
    Reflective
  • Minimum Bend Radius (mm)
    25
  • Sensing Mode (General)
    Diffuse
  • Core Diameter (mm)
    1
  • Fiber Optic Type
    Plastic
  • Beam Exit
    Right Angle
  • Fiber Sensing End Tip
    Thread
  • Flex Relief
    No
  • Fiber Sheathing Material (Jacket)
    Polyethylene
  • Quantity Included
    1
  • Fiber Sensing End Size
    M6
  • Feature: Extended Range
    No
  • Max Distance: DF-G2 (mm)
    No Data
  • Retractile
    No
  • Minimum Repeat Bending Endurance
    5000
  • Application: Liquid Level
    No
  • Tariff Fiber Meters (fbm)
    4
  • Housing Style
    Round
  • Sensing End Segment 3
    Thread
  • Termination Type
    Plastic Fiber Sensors
  • Feature: Chemical Resistant
    No
  • Fiber Length (m)
    2
  • Sensing End Segment 2
    Angle
  • Sensing End Material (Specific)
    Stainless Steel
  • Max Temp ( °C)
    85
  • Application: Vacuum Feed Through
    None
  • Measured Max Distance (mm)
    No Data
  • Sensing End Segment 1
    Ferrule
  • Max Distance: DF-G1 (mm)
    No Data
  • Integrated Lens
    No
  • Termination
    Free Cut
  • Feature: Small Object Detection
    No
  • Max Distance: DF-G3 (mm)
    No Data
  • Fiber Sensing End Size - Mounting Area
    M6

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of PBAT46U on Powermatic Associates is $91.00. Order now.

About the product

Banner Engineering PBAT46U is a fiber optic sensor designed for diffuse-reflective system applications with a flex strain relief bifurcated fiber side and right-angled sensing. It operates effectively at an ambient air temperature of up to +70°C. This sensor is part of the Plastic fiber (Vantage Line) series and features a 1mm fiber core diameter. The sensing end is cylindrical (threaded) and made of stainless steel, while the fiber is plastic with a polyethylene (PE) fiber sheath. The total length of the PBAT46U is 6ft / 2m.
