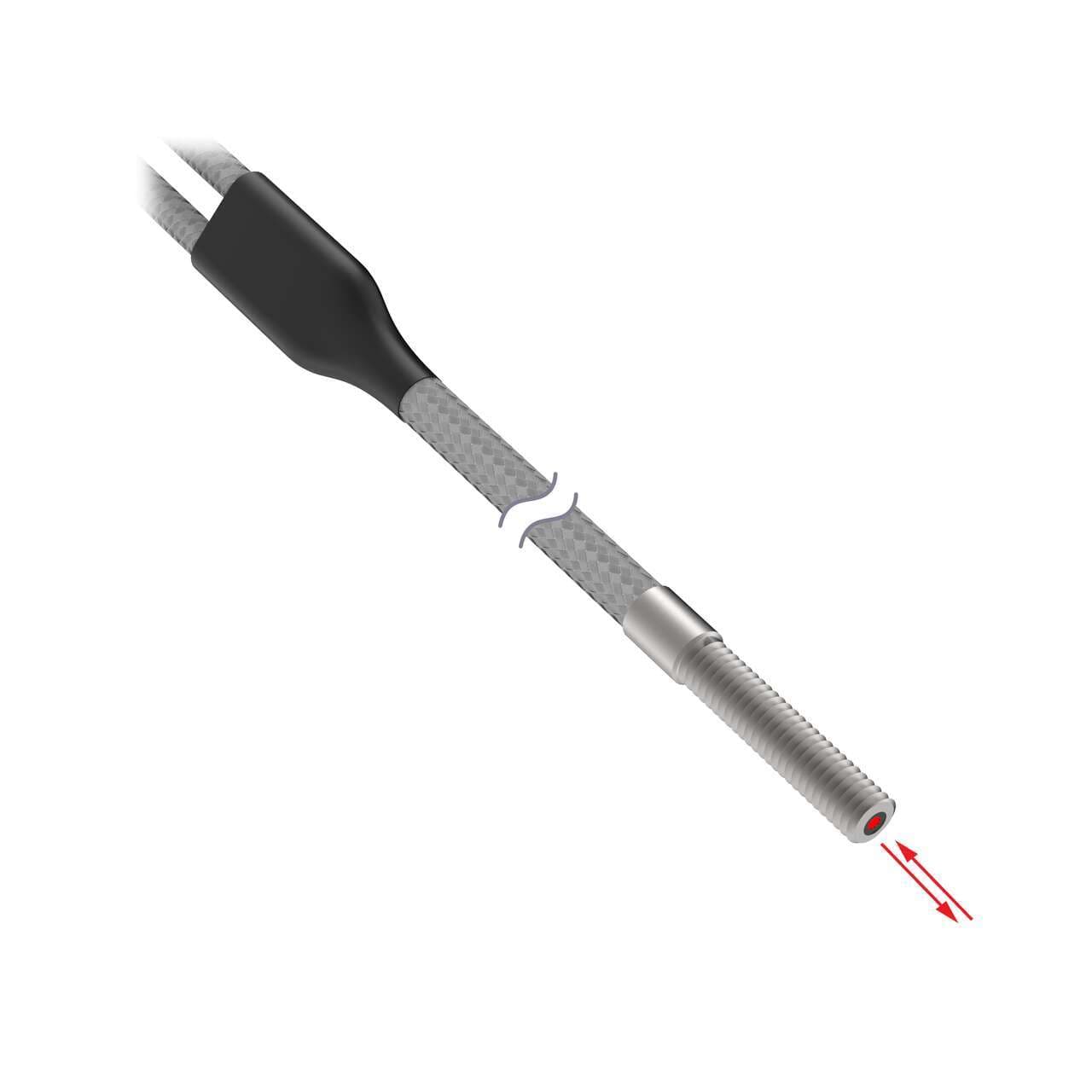

PBCT23TMB5 Banner Through Beam Sensors

Product Details

• Weight
  36.28736 g
• Country Of Origin
  JP
• Max Distance: DF-G3 (mm)
  622
• Max Distance: DF-G2 (mm)
  130
• Max Distance: DF-G1 (mm)
  80
• Fiber Sensing End Size - Mounting Area
  M3
• Measured Max Distance (mm)
  80
• Tariff Fiber Meters (fbm)
  10
• Termination Type
  Plastic Fiber Sensors
• Application: Vacuum Feed Through
  None
• Application: Liquid Level
  No
• Feature: Small Object Detection
  No
• Feature: Extended Range
  No
• Feature: Chemical Resistant
  No
• Integrated Lens
  No
• Minimum Repeat Bending Endurance
  2000
• Max Temp ( °C)
  70
• Minimum Bend Radius (mm)
  12
• Termination
  Terminated
• Core Diameter (mm)
  0.5 & 9 x 0.3
Sensing End Segment 1
Thread
Flex Relief
No
Retractile
No
Fiber Sensing End Size
M3
Fiber Length (m)
1
Fiber Sensing End Tip
Thread
Sensing End Material (Specific)
Stainless Steel
Fiber Sheathing Material (Jacket)
STEELSKIN
Beam Exit
In-line
Sensing Mode (Detailed)
Coaxial
Sensing Mode (General)
Diffuse
Quantity Included
1
Fiber Optic Type
Plastic
Housing Style
Round
Max Range: DF-G3 (mm)
>500mm - <=1000mm
Primary brand
Banner Engineering
Design
diffuse-reflective system Bifurcated fiber In-line / coaxial sensing
Diameter
0.5mm fiber core
Ambient air temperature for operation
+70 °C
Functions
Fiber optic sensor
Shape
Cylindrical (threaded) end tip
Order code / Manufacturer SKU
70850
Main function
Fiber sensor
Thread size
M3
Product series / family name
Fiber sensors
Length
3ft / 1m
Material
Stainless steel sensing end Plastic fiber steelskin (fiber sheath)
Sub-range name
Plastic fiber series
