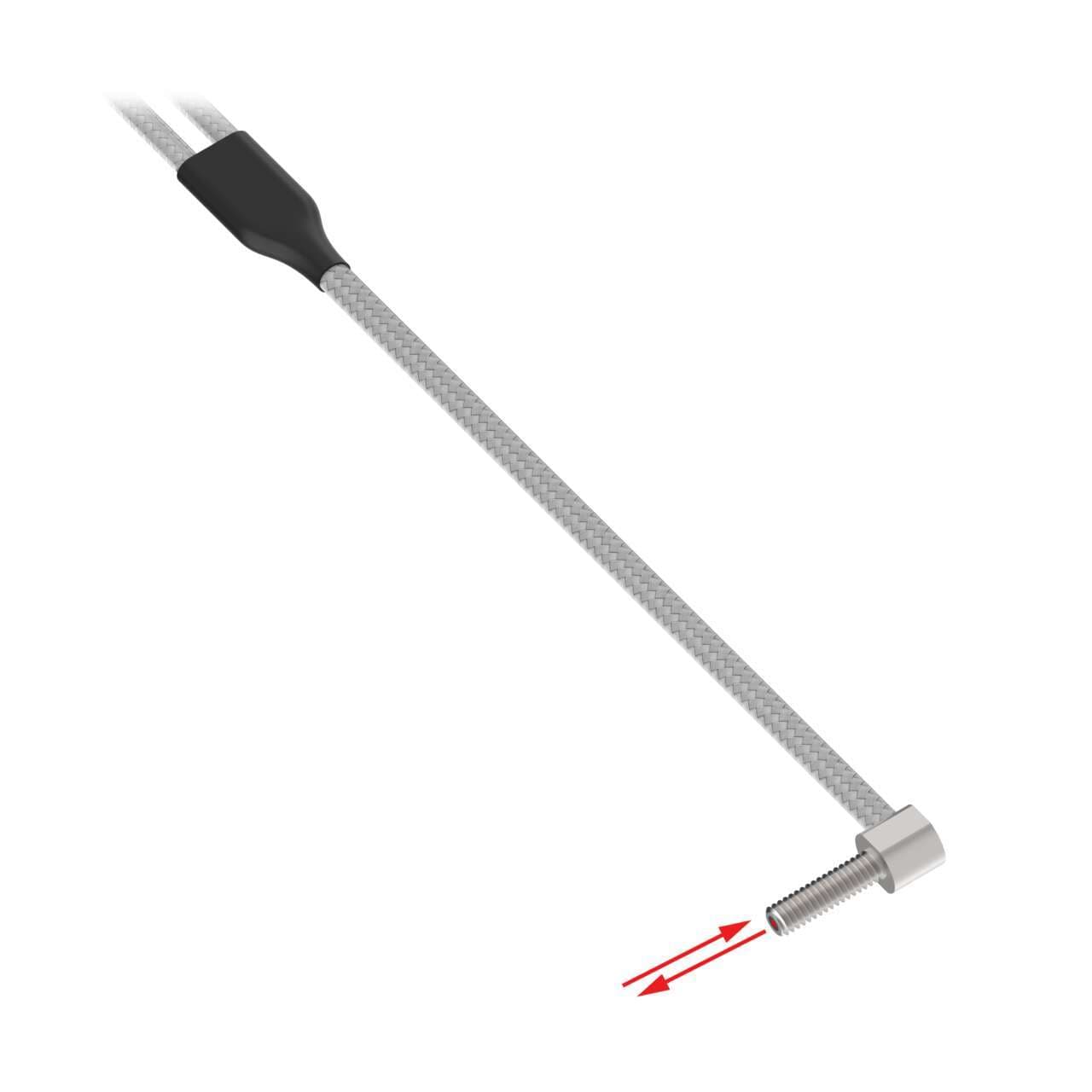

PBCT23TMB5MTA Banner Through Beam Sensors
Part#:PBCT23TMB5MTA
Alt. Part#:19717
Manufacturer:Banner
Category:Through Beam Sensors
Product Lifecycle:Active
Product description
Plastic Fiber, Diffuse Reflective; Core Dia.: 0.5 mm & 9 x 0.25 mm; Fiber Length 1 m; Angle, Thread; STEELSKIN, TMB5 Termination
Product Details
- Weight 54.43104 g
- Country Of Origin JP
- Functions Fiber optic sensor
- Material Stainless steel sensing end Plastic fiber steelskin (fiber sheath)
- Primary brand Banner Engineering
- Design diffuse-reflective system Bifurcated fiber In-line / coaxial sensing
- Diameter 0.5mm fiber core
- Sub-range name Plastic fiber series
- Product series / family name Fiber sensors
- Thread size M4
- Main function Fiber sensor
- Shape Cylindrical (threaded) end tip
- Ambient air temperature for operation +70 °C
- Length 3ft / 1m
- Order code / Manufacturer SKU 19717
- Beam Exit Right Angle
- Core Diameter (mm) 0.5 & 9 x 0.3
- Integrated Lens No
- Sensing End Material (Specific) Stainless Steel
- Minimum Bend Radius (mm) 12
- Max Temp ( °C) 70
- Tariff Fiber Meters (fbm) 20
- Flex Relief No
- Fiber Sensing End Tip Thread
- Sensing Mode (General) Diffuse
- Sensing End Segment 2 Thread
- Application: Vacuum Feed Through None
- Fiber Sensing End Size M4
- Housing Style Round
- Fiber Sheathing Material (Jacket) STEELSKIN
- Termination Terminated
- Fiber Length (m) 1
- Sensing Mode (Detailed) Coaxial
- Minimum Repeat Bending Endurance 1000
- Measured Max Distance (mm) No Data
- Fiber Sensing End Size - Mounting Area M4
- Termination Type Plastic Fiber Sensors
- Application: Liquid Level No
- Fiber Optic Type Plastic
- Retractile No
- Feature: Small Object Detection No
- Max Distance: DF-G3 (mm) No Data
- Sensing End Segment 1 Angle
- Feature: Chemical Resistant No
- Quantity Included 1
- Feature: Extended Range No
- Max Distance: DF-G1 (mm) No Data
- Max Distance: DF-G2 (mm) No Data
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of PBCT23TMB5MTA on Powermatic Associates is $243.00. Order now.
About the product
Banner Engineering PBCT23TMB5MTA is a fiber optic sensor designed for diffuse-reflective system applications with a bifurcated fiber in-line/coaxial sensing mechanism. It features a 0.5mm fiber core diameter and is part of the Plastic fiber series. The sensor has a cylindrical (threaded) end tip shape, with the sensing end made of stainless steel, the fiber from plastic, and a stainless steel monocoil covering. It is designed to operate in ambient air temperatures up to +70°C. The total length of the sensor is 3 feet (approximately 1 meter).
