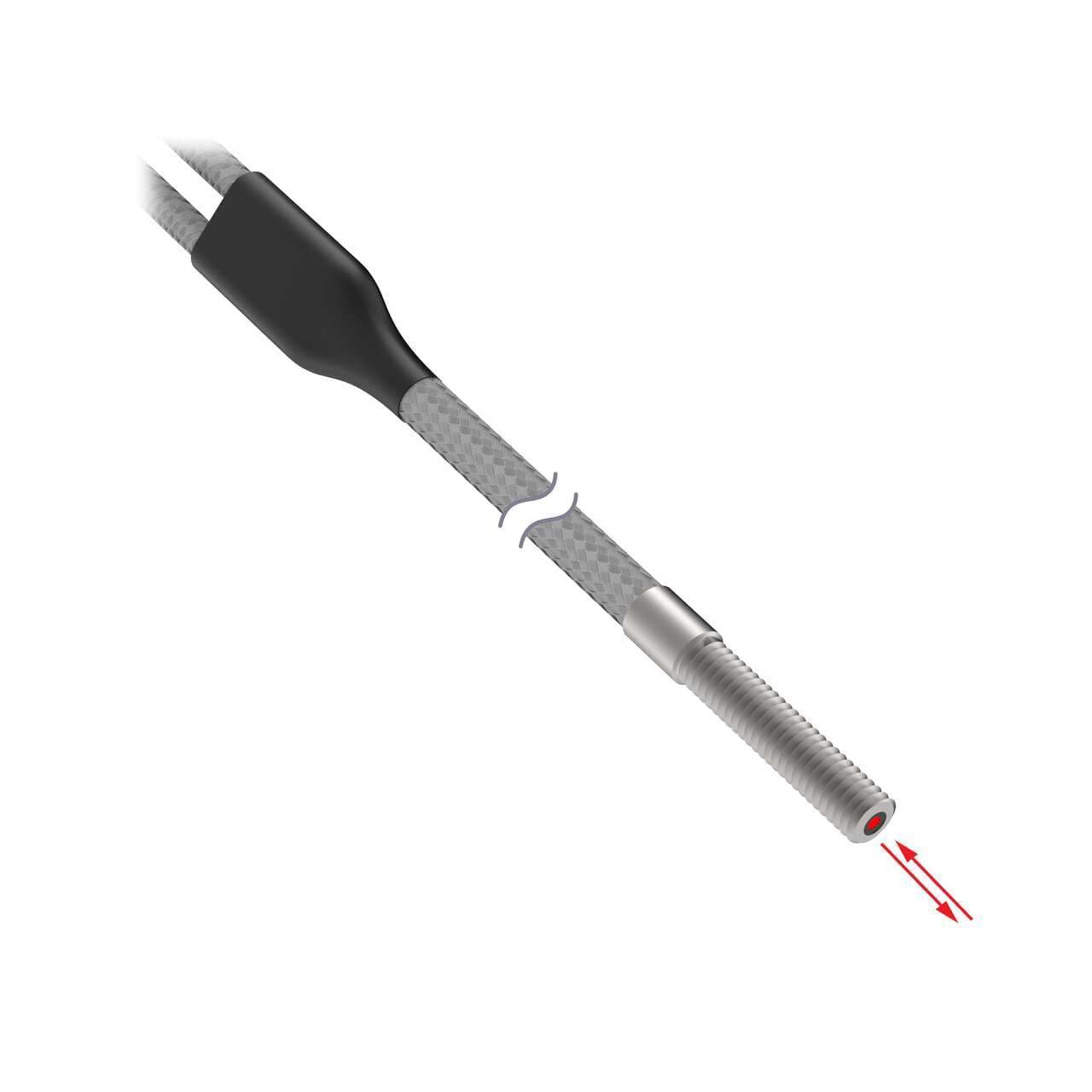

PBCT26TMB5M4 Banner Through Beam Sensors
Part#:PBCT26TMB5M4
Alt. Part#:71438
Manufacturer:Banner
Category:Through Beam Sensors
Product Lifecycle:Active
Product description
Plastic Fiber, Diffuse Reflective; Core Dia.: 0.5 mm & 9 x 0.25 mm; Fiber Length 2 m; Coaxial, Thread; SteelSkin, TMB5 Termination
Product Details
- Weight 72.57472 g
- Country Of Origin JP
- Max Distance: DF-G1 (mm) 72
- Fiber Sensing End Size - Mounting Area M4
- Tariff Fiber Meters (fbm) 20
- Max Distance: DF-G3 (mm) 559
- Measured Max Distance (mm) 72
- Application: Vacuum Feed Through None
- Termination Type Plastic Fiber Sensors
- Application: Liquid Level No
- Max Distance: DF-G2 (mm) 116
- Feature: Chemical Resistant No
- Feature: Extended Range No
- Feature: Small Object Detection No
- Integrated Lens No
- Minimum Repeat Bending Endurance 2000
- Termination Terminated
- Max Temp ( °C) 70
- Flex Relief No
- Fiber Length (m) 2
- Minimum Bend Radius (mm) 12
- Retractile No
- Fiber Sensing End Size M4
- Core Diameter (mm) 0.5 & 9 x 0.3
- Sensing End Segment 1 Thread
- Fiber Sensing End Tip Thread
- Fiber Sheathing Material (Jacket) STEELSKIN
- Sensing Mode (General) Diffuse
- Sensing End Material (Specific) Stainless Steel
- Max Range: DF-G3 (mm) >500mm - <=1000mm
- Quantity Included 1
- Sensing Mode (Detailed) Coaxial
- Beam Exit In-line
- Fiber Optic Type Plastic
- Housing Style Round
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of PBCT26TMB5M4 on Powermatic Associates is $261.00. Order now.
About the product
Banner Engineering PBCT26TMB5M4 is a fiber optic sensor designed for diffuse-reflective system applications, featuring a bifurcated fiber in-line/coaxial sensing mechanism. It operates effectively at an ambient air temperature up to +70°C. This sensor is part of the Plastic fiber series and comes with a 0.5mm fiber core diameter. The cylindrical (threaded) end tip is constructed from stainless steel, while the fiber itself is encased in a plastic fiber with a Steelskin fiber sheath, ensuring durability and protection. The total length of the sensor is 6ft / 2m, accommodating various installation requirements.
