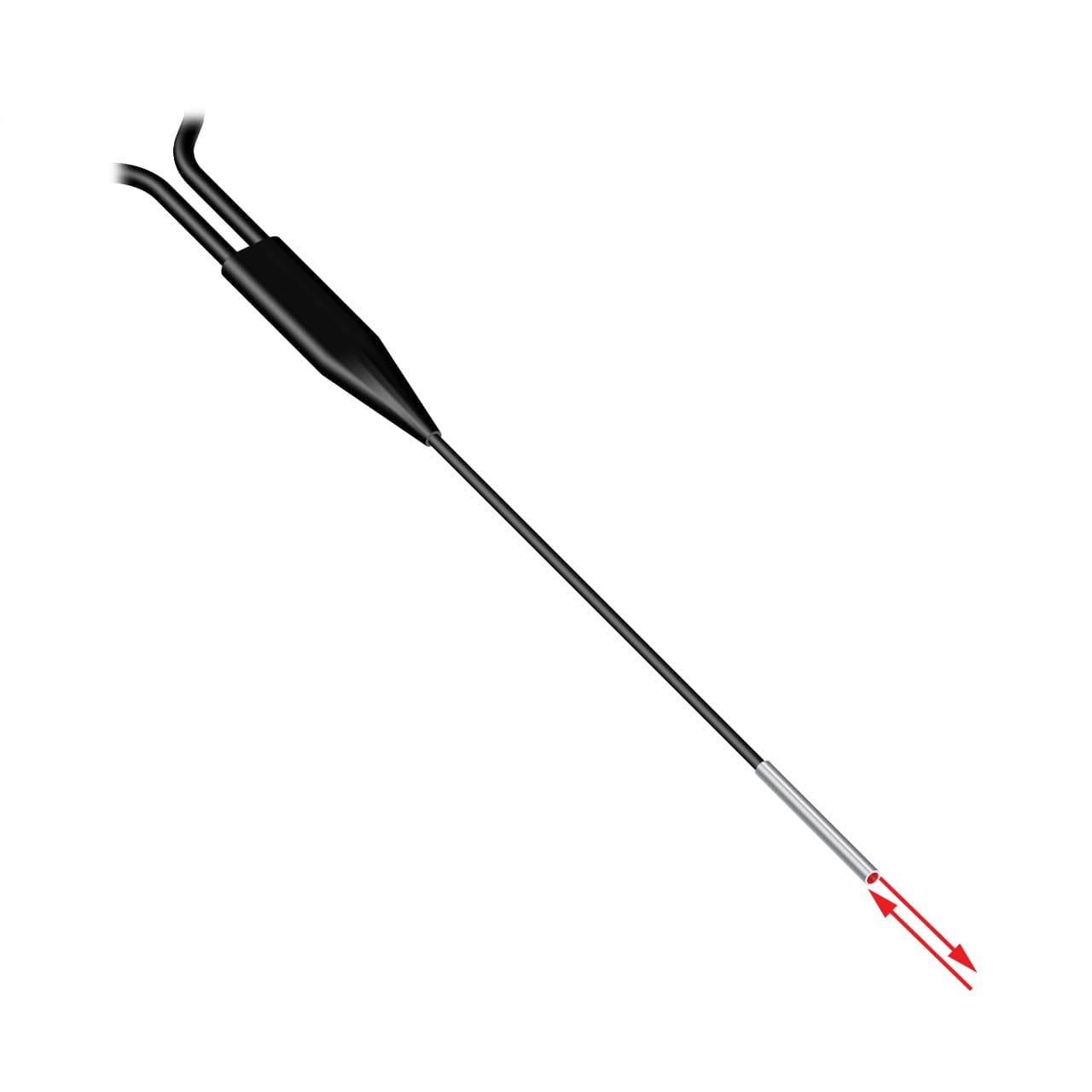

PBFMP16UMP.2 Banner Through Beam Sensors
Part#:PBFMP16UMP.2
Alt. Part#:61220
Manufacturer:Banner
Category:Through Beam Sensors
Product Lifecycle:Active
Product description
Plastic Fiber, Diffuse Reflective; Core Dia.: 0.25 mm; Fiber Length 2 m; 3 mm dia. Stainless Ferrule, 0.82 mm dia. Probe; Free Cut
Product Details
- Weight 36.28736 g
- Country Of Origin JP
- Max Distance: DF-G2 (mm) No Data
- Fiber Sensing End Size - Mounting Area 3.0 mm
- Max Distance: DF-G3 (mm) No Data
- Max Distance: DF-G1 (mm) No Data
- Measured Max Distance (mm) No Data
- Termination Type Plastic Fiber Sensors
- Tariff Fiber Meters (fbm) 4
- Application: Vacuum Feed Through None
- Application: Liquid Level No
- Feature: Small Object Detection No
- Feature: Extended Range No
- Integrated Lens No
- Feature: Chemical Resistant No
- Minimum Repeat Bending Endurance 1000
- Max Temp ( °C) 70
- Termination Free Cut
- Minimum Bend Radius (mm) 5
- Core Diameter (mm) 0.3
- Flex Relief No
- Sensing End Segment 2 Probe
- Retractile No
- Sensing End Segment 1 Ferrule
- Fiber Sensing End Size 0.8 mm
- Fiber Length (m) 2
- Fiber Sensing End Tip Probe
- Fiber Sheathing Material (Jacket) Polyethylene
- Sensing End Material (Specific) Stainless Steel
- Beam Exit In-line
- Housing Style Round
- Sensing Mode (Detailed) Reflective
- Quantity Included 1
- Sensing Mode (General) Diffuse
- Fiber Optic Type Plastic
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of PBFMP16UMP.2 on Powermatic Associates is $91.00. Order now.
About the product
Banner Engineering PBFMP16UMP.2 is a fiber optic sensor designed for diffuse-reflective system applications, featuring a probe with a ferrule tip and bifurcated fiber for in-line sensing. This sensor is part of the Plastic fiber series and is characterized by a 1mm fiber core diameter. It has a cylindrical (smooth) probe tip made of stainless steel, while the fiber is encased in a polyethylene (PE) fiber sheath. The total length of the sensor is 6 feet (approximately 2 meters). It is designed to operate in ambient air temperatures up to +85°C.
PBFMP16UMP.2 Related Documents
Similar products from: Banner Through Beam Sensors
Manufacturer warranty
PBFMP16UMP.2 Banner
$91.00
Your price can be lower.
Log in or Create account to check your discount
Select Qty:
$91.00
$91.00 each
Average response time: 11 minutes
Worldwide Shipping and Delivery
Secure Payment Processing
Warranty
Responsive Customer Support
Got Questions? We've Got Answers!
Need more details?
Feel free to chat with us
Compare PBFMP16UMP.2 with other Through Beam Sensors products
Weight
Country Of Origin
Max Distance: DF-G2 (mm)
Fiber Sensing End Size - ...
Max Distance: DF-G3 (mm)
Max Distance: DF-G1 (mm)
Measured Max Distance (mm...
Termination Type
Tariff Fiber Meters (fbm)
Application: Vacuum Feed ...
Selected product
PBFMP16UMP.2
Banner
Plastic Fiber, Diffuse Reflective; Core Dia.: 0.25 mm; Fiber Length 2 m; 3 mm dia. Stainless Ferrule...
Weight36.28736 g
Country Of OriginJP
Max Distance: DF-G2 (mm)No Data
Fiber Sensing End Size - Mounting Area3.0 mm
Max Distance: DF-G3 (mm)No Data
Max Distance: DF-G1 (mm)No Data
Measured Max Distance (mm)No Data
Termination TypePlastic Fiber Sensors
Tariff Fiber Meters (fbm)4
Application: Vacuum Feed ThroughNone

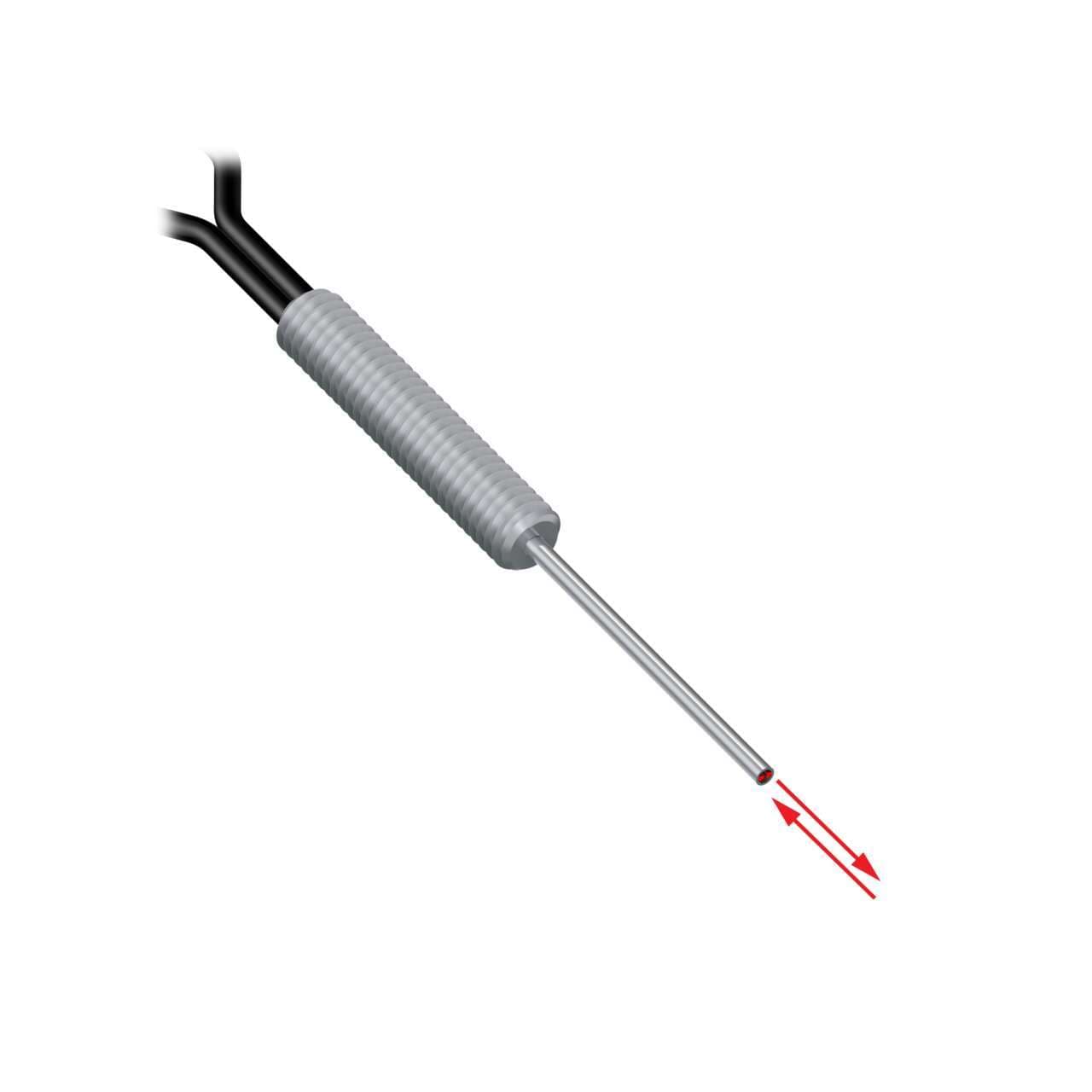

PBT26UMSSMFF
Banner
Plastic Fiber, Diffuse Reflective; Core Dia.: 0.5 mm; Fiber Length 2 m; Thread; Free cut
Weight25.401152 g
Country Of OriginTW
Max Distance: DF-G2 (mm)-
Fiber Sensing End Size - Mounting Area-
Max Distance: DF-G3 (mm)-
Max Distance: DF-G1 (mm)-
Measured Max Distance (mm)-
Termination Type-
Tariff Fiber Meters (fbm)-
Application: Vacuum Feed Through-

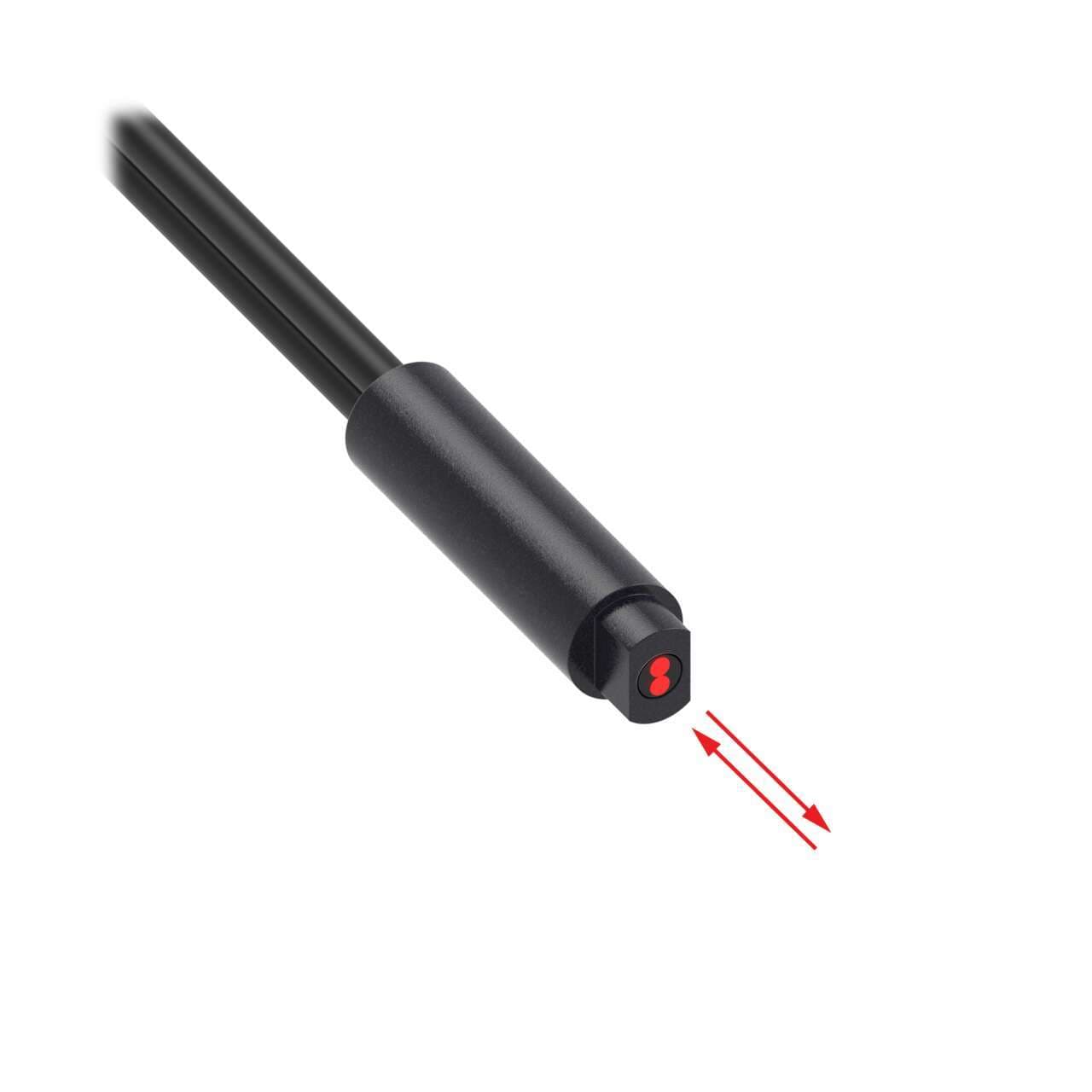

PIA46UMJ1.3
