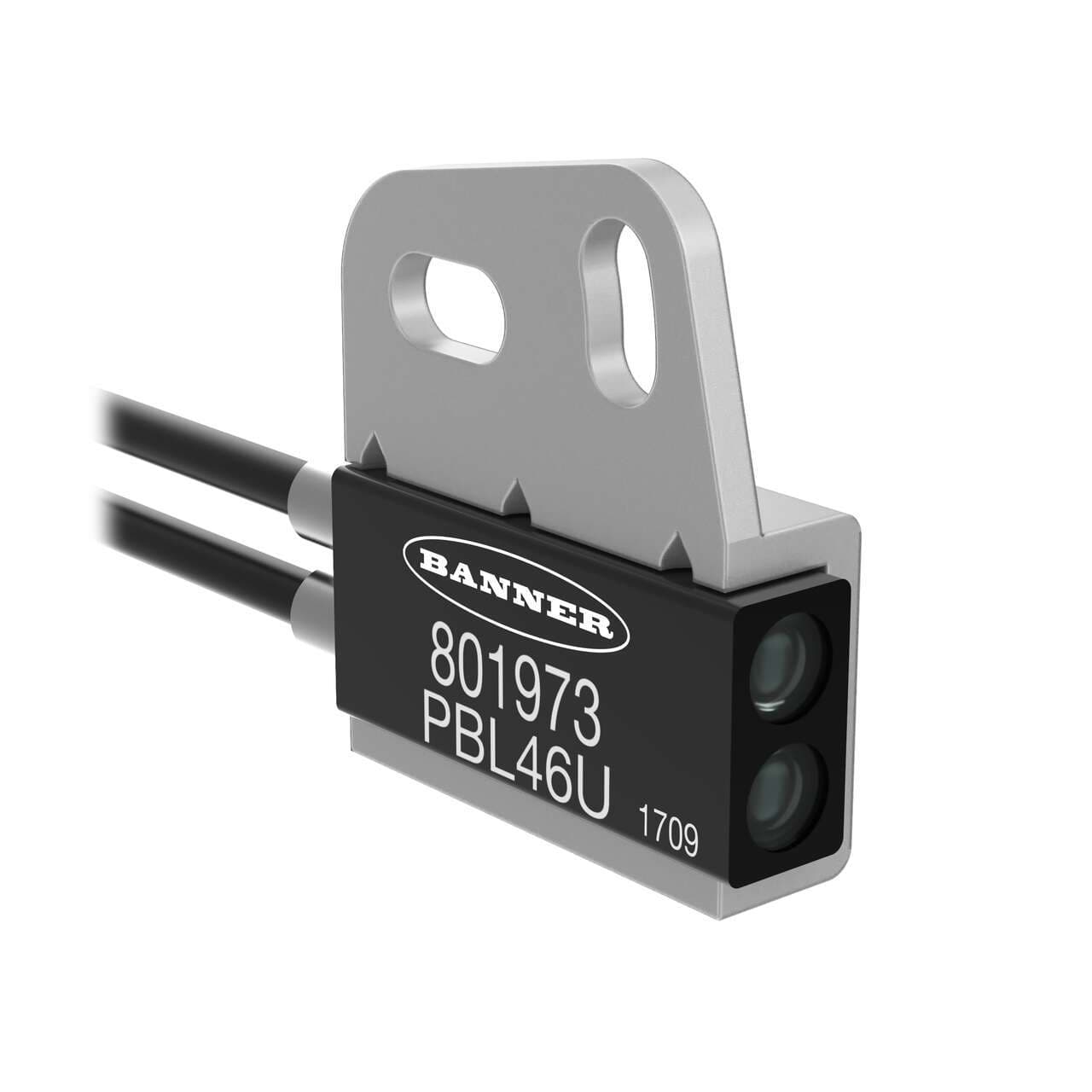

PBL46U Banner Through Beam Sensors

Product Details

• Weight
  36.28736 g
• Country Of Origin
  TW
• Functions
  Fiber optic sensor
• Length
  6ft / 2m
• Main function
  Fiber sensor
• Sub-range name
  Plastic fiber series
• Shape
  Rectangular
• Design
  diffuse-reflective system end tip lns. Bifurcated fiber
• Order code / Manufacturer SKU
  801973
• Primary brand
  Banner Engineering
• Diameter
  1mm fiber core
• Ambient air temperature for operation
  +70 °C
• Product series / family name
  Fiber sensors
• Dimensions
  9.5x5.2mm sensing area
• Material
  Aluminium sensing end Plastic fiber Polyethylene fiber sheath
• Sensing Mode (General)
  Diffuse
• Retractile
  No
• Application: Vacuum Feed Through
  None
• Housing Style
  Rectangular
• Termination
  Free Cut
Tariff Fiber Meters (fbm)
4
Beam Exit
In-line
Minimum Bend Radius (mm)
25
Application: Liquid Level
No
Fiber Sensing End Size - Mounting Area
9.5 x 21.0 mm
Fiber Sheathing Material (Jacket)
Polyethylene
Fiber Length (m)
2
Feature: Chemical Resistant
No
Max Distance: DF-G2 (mm)
952
Sensing End Material (Specific)
Aluminum
Fiber Sensing End Size
9.5 x 21.0 mm
Minimum Repeat Bending Endurance
1000
Sensing Mode (Detailed)
Reflective
Core Diameter (mm)
1
Max Distance: DF-G1 (mm)
588
Fiber Optic Type
Plastic
Sensing End Segment 1
Rectangle
Quantity Included
1
Flex Relief
No
Integrated Lens
Yes
Sensing End Segment 2
Lens
Feature: Small Object Detection
No
Measured Max Distance (mm)
588
Max Range: DF-G3 (mm)
>3m - <=5m
Fiber Sensing End Tip
Lens
Max Temp ( °C)
70
Termination Type
Plastic Fiber Sensors
Feature: Extended Range
No
Max Distance: DF-G3 (mm)
4565
