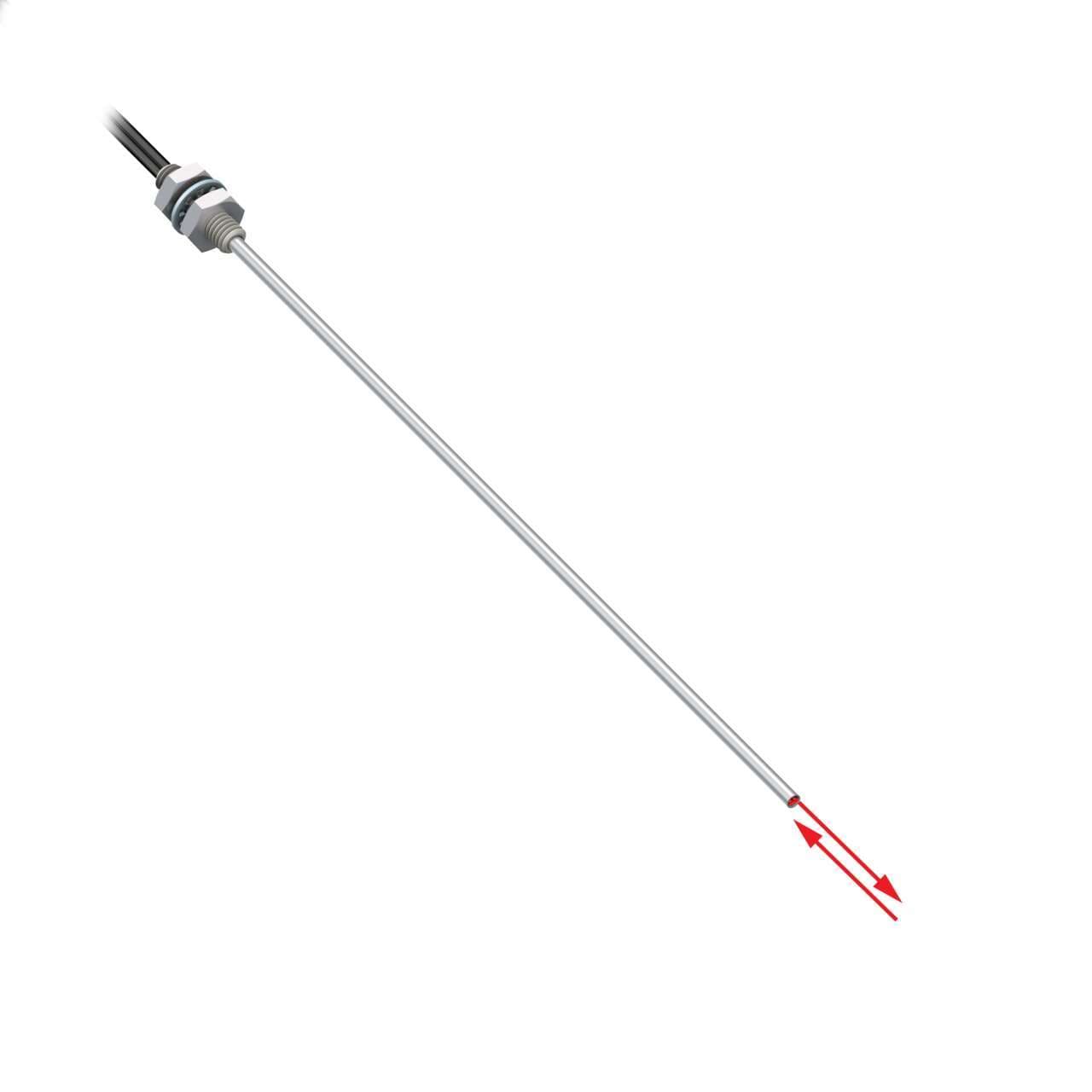

PBP26U Banner Through Beam Sensors

Name: PBP26U
Brand: Banner
Price: 65 USD
Availability: BackOrder

Part#:PBP26U

Alt. Part#:26082

Manufacturer:Banner

Category:Through Beam Sensors

Product Lifecycle:Active

Product description

Plastic Fiber, Diffuse Reflective; Core Dia.: 0.5 mm; Fiber Length 2 m; Probe; Free cut

Product Details

Weight
38.55532 g
Country Of Origin
JP
Max Distance: DF-G1 (mm)
No Data
Max Distance: DF-G2 (mm)
No Data
Max Distance: DF-G3 (mm)
No Data
Fiber Sensing End Size - Mounting Area
M3
Measured Max Distance (mm)
No Data
Tariff Fiber Meters (fbm)
4
Termination Type
Plastic Fiber Sensors
Application: Vacuum Feed Through
None
Application: Liquid Level
No
Feature: Extended Range
No
Feature: Small Object Detection
No
Feature: Chemical Resistant
No
Integrated Lens
No
Minimum Repeat Bending Endurance
10000
Max Temp ( °C)
85
Termination
Free Cut
Core Diameter (mm)
0.5
Minimum Bend Radius (mm)
10

Flex Relief

Fiber Sensing End Size

1.5 mm

Retractile

Sensing End Segment 2

Bendable-Probe

Fiber Length (m)

Sensing End Segment 1

Thread

Fiber Sensing End Tip

Bendable-Probe

Fiber Sheathing Material (Jacket)

Polyethylene

Sensing End Material (Specific)

Stainless Steel

Sensing Mode (Detailed)

Reflective

Beam Exit

In-line

Fiber Optic Type

Plastic

Quantity Included

Housing Style

Round

Sensing Mode (General)

Diffuse

Diameter

1.5mm (end) 0.5mm fiber core

Thread size

Primary brand

Banner Engineering

Design

diffuse-reflective system Bifurcated fiber

Length

6ft / 2m

Sub-range name

Plastic fiber series

Material

Stainless steel sensing end Plastic fiber Polyethylene fiber sheath

Product series / family name

Fiber sensors

Functions

Fiber optic sensor

Main function

Fiber sensor

Shape

Cylindrical (smooth) probe tip

Ambient air temperature for operation

+70 °C

Order code / Manufacturer SKU

26082

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of PBP26U on Powermatic Associates is $65.00. Order now.

About the product

Banner Engineering PBP26U is a fiber optic sensor designed for diffuse-reflective system applications, featuring a probe tip bifurcated fiber in-line sensing mechanism. It operates effectively at an ambient air temperature up to +70°C. This sensor is part of the Plastic fiber series and comes with a cylindrical (smooth) probe tip. The sensing end is made of stainless steel, while the fiber is plastic with a polyethylene (PE) fiber sheath. It has a diameter of 0.82mm at the end and a 0.25mm fiber core. The total length of the sensor is 6ft / 2m.

PBP26U Related Documents

PBP2 SERIES UNTERMINATED-1630955265966.pdf PBP2 SERIES UNTERMINATED-1630955265967.stp
