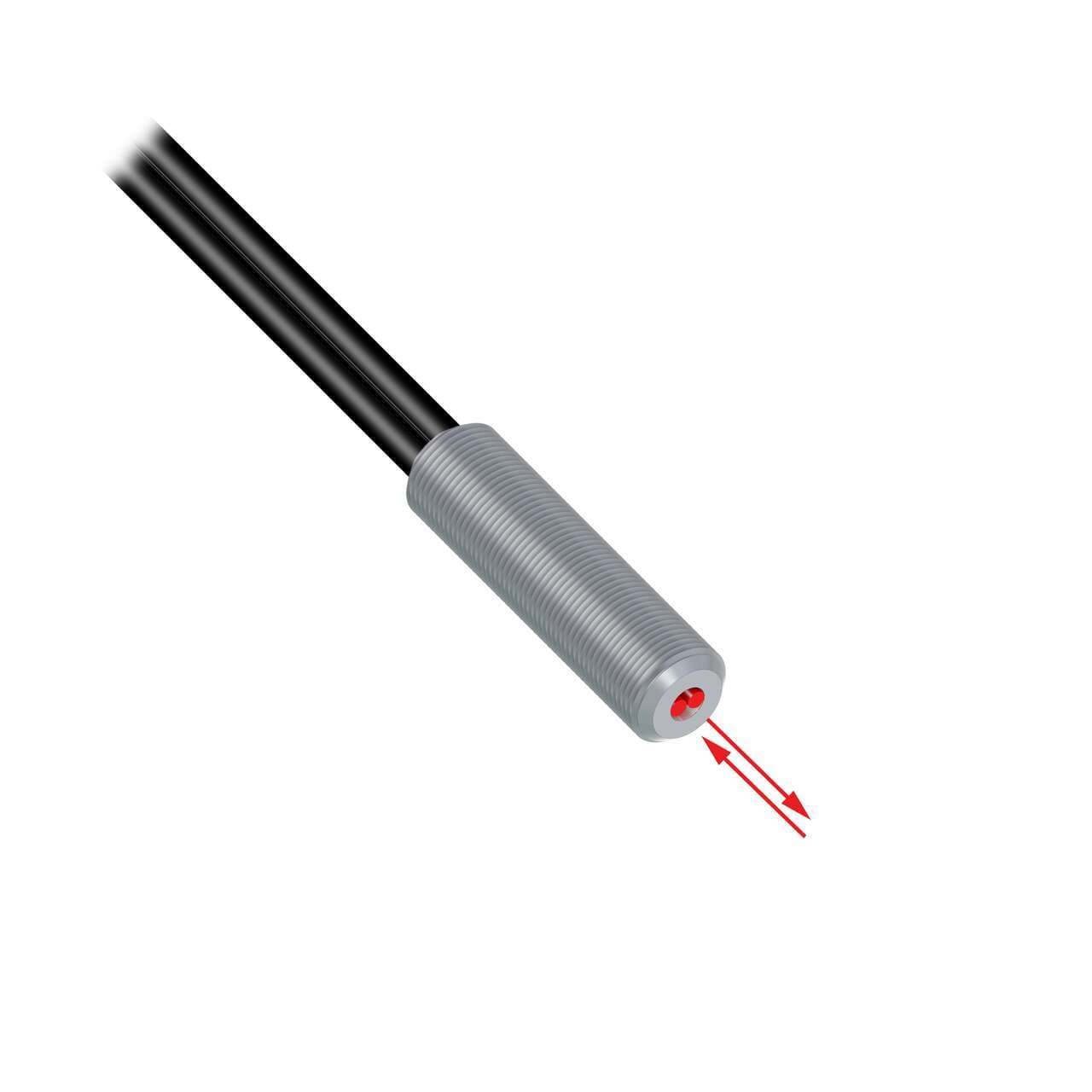

PBT215U Banner Through Beam Sensors

Name: PBT215U
Brand: Banner
Price: 63 USD
Availability: BackOrder

Part#:PBT215U

Alt. Part#:28922

Manufacturer:Banner

Category:Through Beam Sensors

Product Lifecycle:Active

Product description

Plastic Fiber, Diffuse Reflective; Core Dia.: 0.5 mm; Fiber Length 5 m; Thread; Free cut

Product Details

Weight
44.452016 g
Country Of Origin
JP
Max Distance: DF-G1 (mm)
No Data
Sensing Mode (Detailed)
Reflective
Core Diameter (mm)
0.5
Application: Liquid Level
No
Housing Style
Round
Retractile
No
Integrated Lens
No
Max Distance: DF-G3 (mm)
No Data
Fiber Optic Type
Plastic
Minimum Bend Radius (mm)
10
Feature: Small Object Detection
No
Measured Max Distance (mm)
No Data
Sensing End Material (Specific)
Nickel-Plated Brass
Sensing End Segment 1
Thread
Feature: Extended Range
No
Beam Exit
In-line
Flex Relief
No
Minimum Repeat Bending Endurance
10000

Fiber Sensing End Size - Mounting Area

Fiber Length (m)

Tariff Fiber Meters (fbm)

Fiber Sensing End Tip

Thread

Fiber Sensing End Size

Application: Vacuum Feed Through

None

Fiber Sheathing Material (Jacket)

Polyethylene

Quantity Included

Max Temp ( °C)

Termination Type

Plastic Fiber Sensors

Sensing Mode (General)

Diffuse

Termination

Free Cut

Feature: Chemical Resistant

Max Distance: DF-G2 (mm)

No Data

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of PBT215U on Powermatic Associates is $63.00. Order now.

About the product

Banner Engineering PBT215U is a fiber optic sensor designed for diffuse-reflective system applications with a bifurcated fiber in-line sensing mechanism. It operates effectively at an ambient air temperature up to +70°C. This sensor is part of the Plastic fiber series and features a 0.5mm fiber core diameter. It has a cylindrical (threaded) end tip shape, ensuring easy installation in various setups. The sensing end is made of stainless steel for durability, while the fiber itself is encased in a plastic fiber with a Steelskin fiber sheath for added protection. The total length of the PBT215U is 3ft / 1m, accommodating a range of installation requirements.

PBT215U Related Documents

PBT2 SERIES UNTERMINATED-1630955160357.pdf PBT2 SERIES UNTERMINATED-1630955160359.stp

$63.00

Your price can be lower.
Log in or Create account to check your discount

Select Qty:

$63.00

$63.00 each

Average response time: 11 minutes

Worldwide Shipping and Delivery

Secure Payment Processing

Warranty

Responsive Customer Support

Got Questions? We've Got Answers!

Need more details?
