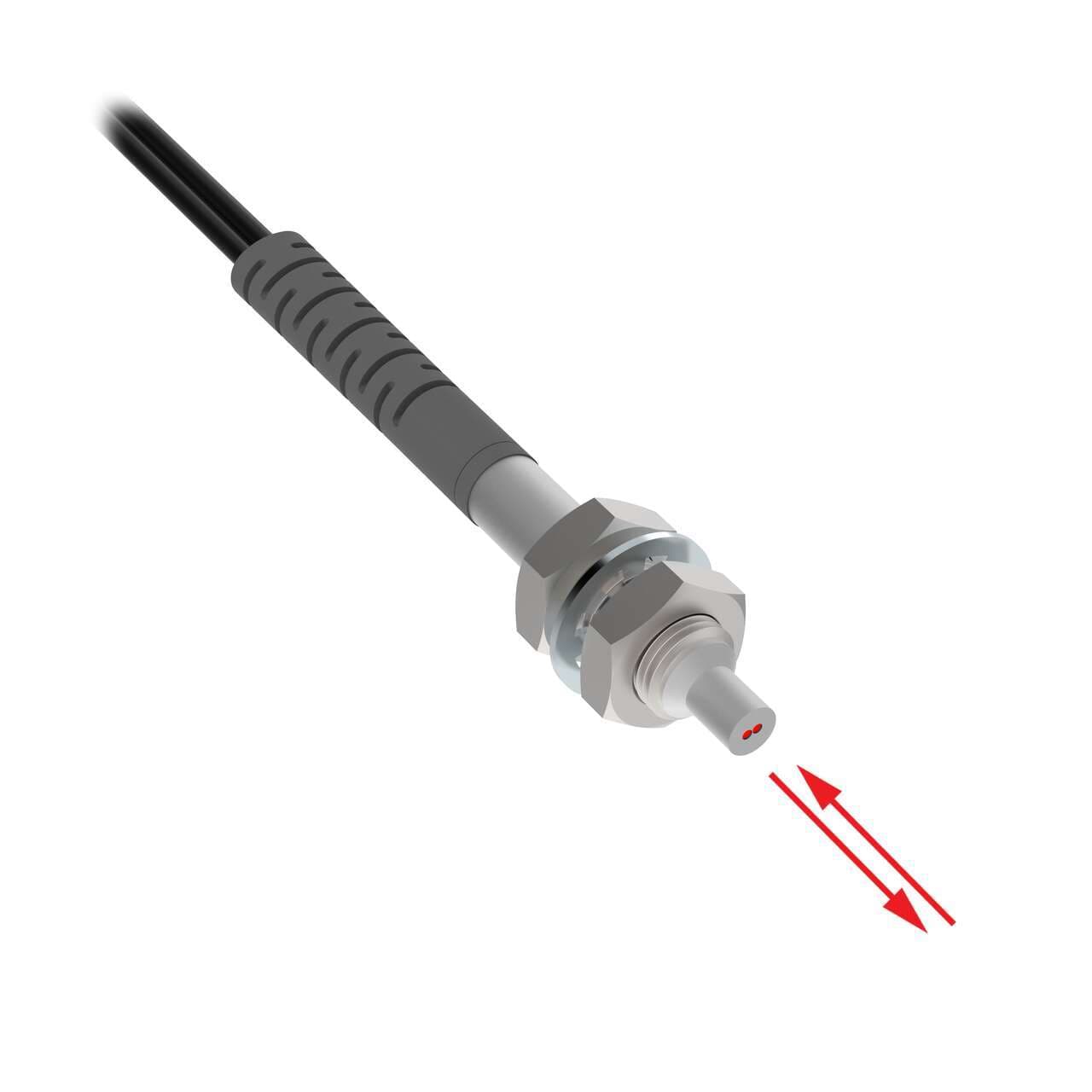

PBT23UM4-VL Banner Through Beam Sensors

Product Details

• Weight
  10.7954896 g
• Country Of Origin
  TW
• Measured Max Distance (mm)
  75
• Application: Liquid Level
  No
• Feature: Small Object Detection
  No
• Application: Vacuum Feed Through
  None
• Integrated Lens
  No
• Feature: Extended Range
  No
• Retractile
  No
• Max Temp ( °C)
  70
• Fiber Sensing End Size
  M2.6
• Sensing Mode (General)
  Diffuse
• Max Range: DF-G3 (mm)
  >500mm - <=1000mm
• Max Distance: DF-G1 (mm)
  75
• Max Distance: DF-G3 (mm)
  584
• Max Distance: DF-G2 (mm)
  122
• Fiber Sensing End Size - Mounting Area
  M4
• Tariff Fiber Meters (fbm)
  2
• Termination Type
  Plastic Fiber Sensors
• Minimum Repeat Bending Endurance
  1000
Flex Relief
Yes
Feature: Chemical Resistant
No
Minimum Bend Radius (mm)
15
Termination
Free Cut
Core Diameter (mm)
0.5
Fiber Length (m)
1
Sensing End Segment 2
Thread
Housing Style
Round
Fiber Sensing End Tip
Thread
Sensing End Segment 1
Thread
Sensing End Material (Specific)
Nickel-Plated Brass
Beam Exit
In-line
Fiber Sheathing Material (Jacket)
Polyethylene
Quantity Included
1
Sensing Mode (Detailed)
Reflective
Fiber Optic Type
Plastic
Thread size
M4
Primary brand
Banner Engineering
Design
diffuse-reflective system flex strain relief Bifurcated fiber In-line sensing
Sub-range name
Plastic fiber - Vantage Line
Shape
Cylindrical (threaded) end tip
Order code / Manufacturer SKU
87518
Main function
Fiber sensor
Functions
Fiber optic sensor
Length
3ft / 1m
Material
Stainless steel sensing end Plastic fiber Polyethylene fiber sheath
Product series / family name
Fiber sensors
Diameter
0.5mm fiber core
Ambient air temperature for operation
+70 °C
Equivalent to
PBT23UM4VL
