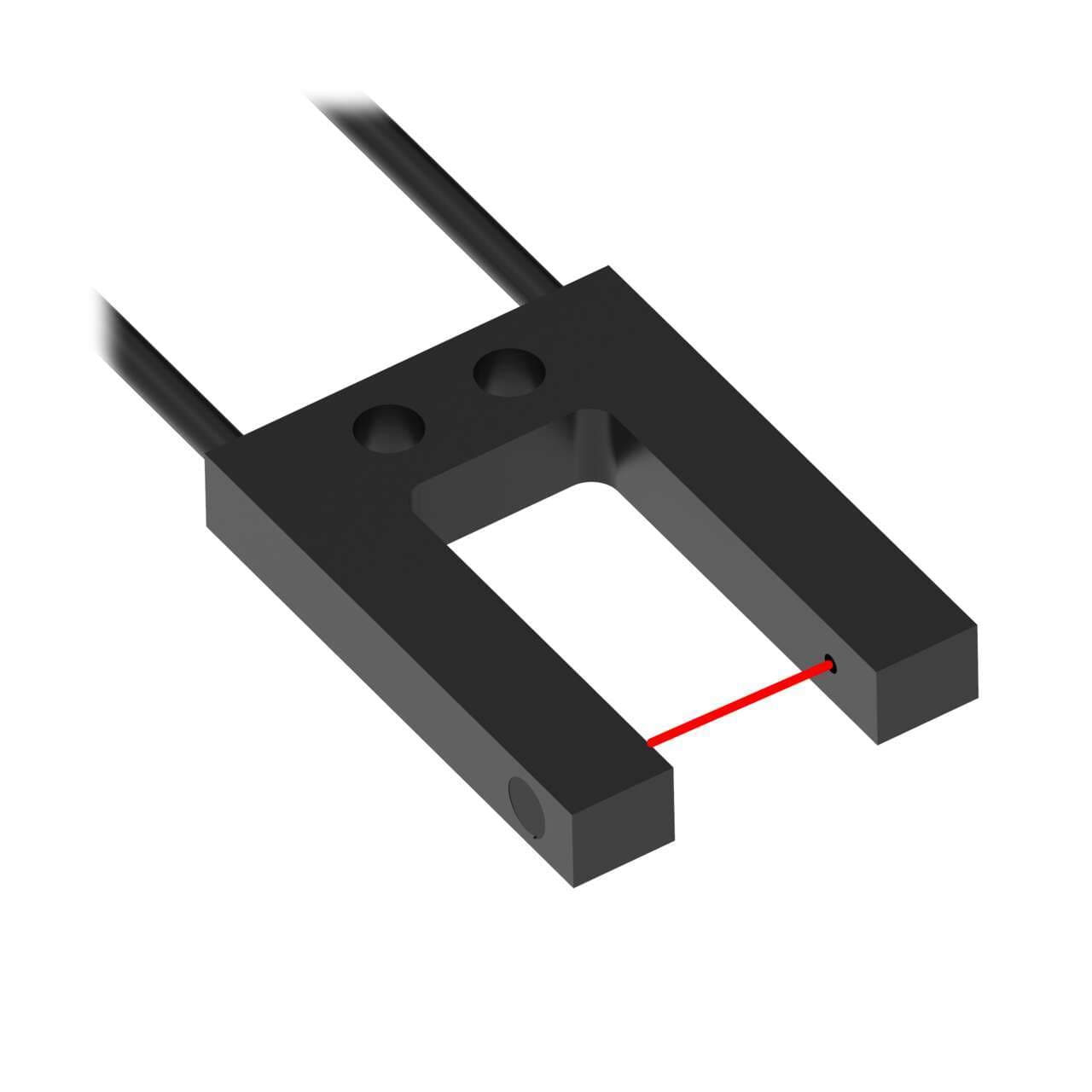

PDIS46UM12 Banner Through Beam Sensors

Product Details

• Weight
  47.7178784 g
• Country Of Origin
  JP
• Main function
  Fiber sensor
• Diameter
  1mm fiber core
• Order code / Manufacturer SKU
  42880
• Functions
  Fiber optic sensor
• Material
  Plastic sensing end Plastic fiber Polyethylene fiber sheath
• Sub-range name
  Plastic fiber series
• Dimensions
  32x24mm sensing area
• Primary brand
  Banner Engineering
• Design
  through-beam system / opposed mode Dual individual fiber In-line sensing
• Ambient air temperature for operation
  +70 °C
• Product series / family name
  Fiber sensors
• Length
  6ft / 2m
• Sensing Mode (Detailed)
  Slot
• Retractile
  No
• Feature: Small Object Detection
  No
• Max Distance: DF-G1 (mm)
  No Data
• Fiber Sensing End Tip
  Slot
• Core Diameter (mm)
  1
Tariff Fiber Meters (fbm)
4
Sensing Mode (General)
Opposed
Fiber Sensing End Size
23.9 x 32.0 mm
Minimum Repeat Bending Endurance
1000
Beam Exit
Right Angle
Fiber Length (m)
2
Feature: Extended Range
No
Max Distance: DF-G3 (mm)
No Data
Fiber Sheathing Material (Jacket)
Polyethylene
Minimum Bend Radius (mm)
2
Application: Vacuum Feed Through
None
Sensing End Material (Specific)
Polyethylene
Termination
Free Cut
Application: Liquid Level
No
Max Distance: DF-G2 (mm)
No Data
Quantity Included
1
Feature: Chemical Resistant
No
Slot Width (mm)
12
Fiber Optic Type
Plastic
Flex Relief
No
Max Temp ( °C)
70
Housing Style
Slot
Sensing End Segment 1
Slot
Integrated Lens
No
Fiber Sensing End Size - Mounting Area
23.9 x 32.0 mm
Termination Type
Plastic Fiber Sensors
Measured Max Distance (mm)
No Data
