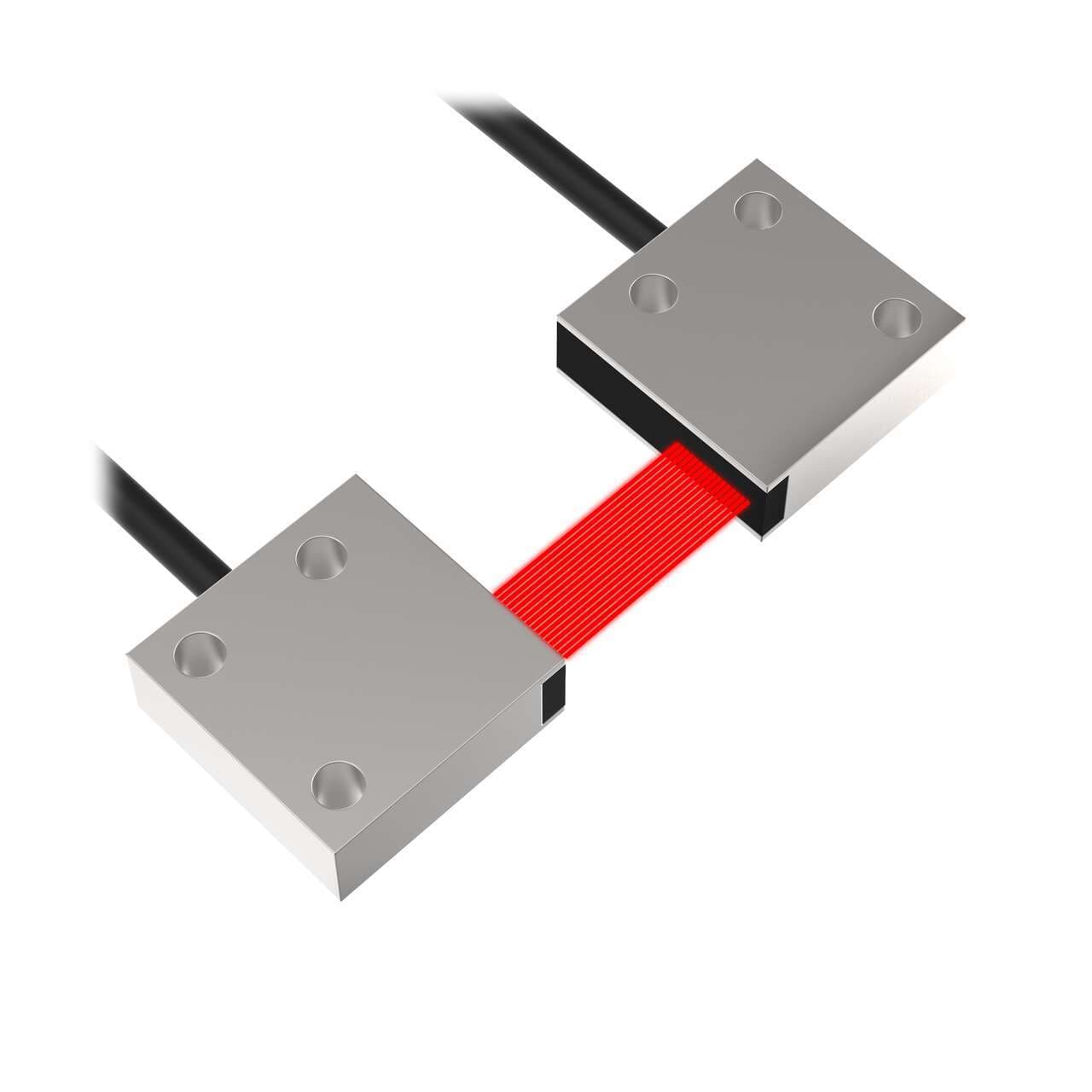

PIRS1X166U Banner Through Beam Sensors

PIRS1X166U on Powermatic Associates
Banner
  • PIRS1X166U
  • PIRS1X166U

Part#:PIRS1X166U

Alt. Part#:39155

Manufacturer:Banner

Category:Through Beam Sensors

Product Lifecycle:Active

Product description

Plastic Fiber, Opposed Mode; Core Dia.: 16 x 0.25 mm; Fiber Length 2 m; Rectangle, Sideview; Free cut

Product Details

  • Weight
    63.50288 g
  • Country Of Origin
    JP
  • Functions
    Fiber optic sensor
  • Main function
    Fiber sensor
  • Product series / family name
    Fiber sensors
  • Length
    6ft / 2m
  • Order code / Manufacturer SKU
    39155
  • Sub-range name
    Plastic fiber series
  • Shape
    Rectangular
  • Primary brand
    Banner Engineering
  • Diameter
    0.25mm fiber core
  • Dimensions
    15x15mm sensing area
  • Design
    through-beam system / opposed mode pair of individual fibers Side / right-angled sensing
  • Ambient air temperature for operation
    +70 °C
  • Material
    Aluminium sensing end Plastic fiber Polyethylene fiber sheath
  • Quantity Included
    2
  • Array Length (mm)
    5.3
  • Max Temp ( °C)
    70
  • Max Distance: DF-G3 (mm)
    3087
  • Fiber Sheathing Material (Jacket)
    Polyethylene
  • Sensing End Segment 2
    Sideview
  • Application: Liquid Level
    No
  • Fiber Sensing End Size - Mounting Area
    15.0 x 15.0 mm
  • Feature: Small Object Detection
    Yes
  • Max Range: DF-G3 (mm)
    >3m - <=5m
  • Fiber Length (m)
    2
  • Flex Relief
    No
  • Feature: Extended Range
    No
  • Max Distance: DF-G2 (mm)
    644
  • Fiber Sensing End Tip
    Array
  • Sensing End Segment 1
    Rectangle
  • Feature: Chemical Resistant
    No
  • Core Diameter (mm)
    16 x 0.3
  • Integrated Lens
    No
  • Tariff Fiber Meters (fbm)
    64
  • Beam Exit
    Right Angle
  • Sensing End Segment 3
    Array
  • Sensing Mode (General)
    Opposed
  • Termination Type
    Plastic Fiber Sensors
  • Fiber Optic Type
    Plastic
  • Minimum Bend Radius (mm)
    5
  • Application: Vacuum Feed Through
    None
  • Sensing Mode (Detailed)
    Array
  • Measured Max Distance (mm)
    397
  • Housing Style
    Rectangular
  • Retractile
    No
  • Minimum Repeat Bending Endurance
    10000
  • Fiber Sensing End Size
    15.0 x 15.0 mm
  • Termination
    Free Cut
  • Sensing End Material (Specific)
    Aluminum
  • Max Distance: DF-G1 (mm)
    397

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of PIRS1X166U on Powermatic Associates is $185.00. Order now.


About the product

Banner Engineering PIRS1X166U is a fiber optic sensor designed for through-beam system applications, featuring an opposed mode pair of individual fibers positioned side by side with right-angled sensing. This sensor falls under the Plastic fiber series, characterized by a 0.25mm fiber core diameter. It is constructed with an aluminum sensing end and a plastic fiber coupled with a polyethylene (PE) fiber sheath, ensuring durability and compatibility with various applications. The PIRS1X166U has a rectangular shape and comes with a length of 6ft (approximately 2m), designed to operate efficiently in ambient air temperatures up to +70°C.
