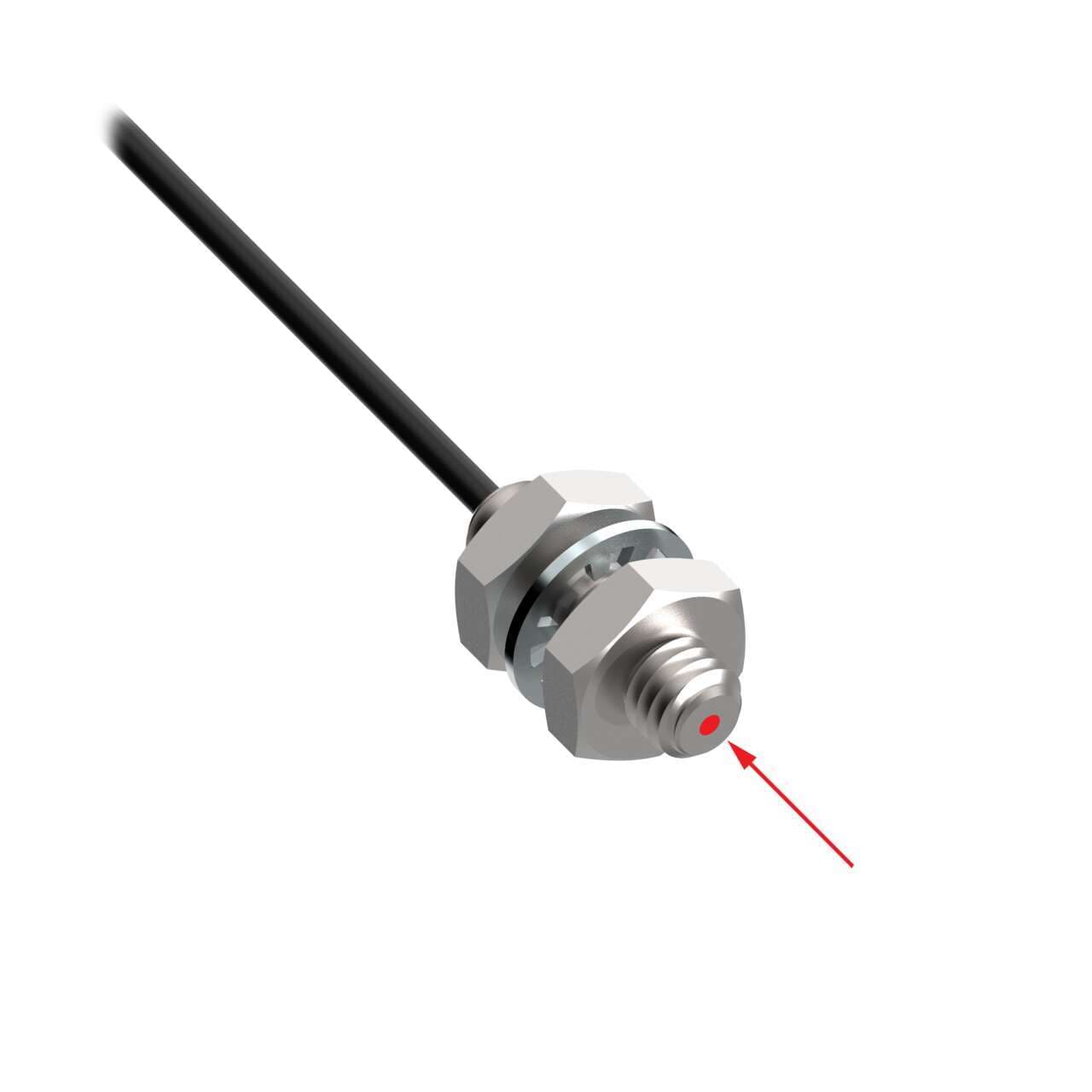

PIT1X46U Banner Through Beam Sensors

PIT1X46U on Powermatic Associates
Banner
  • PIT1X46U
  • PIT1X46U

Part#:PIT1X46U

Alt. Part#:39138

Manufacturer:Banner

Category:Through Beam Sensors

Product Lifecycle:Active

Product description

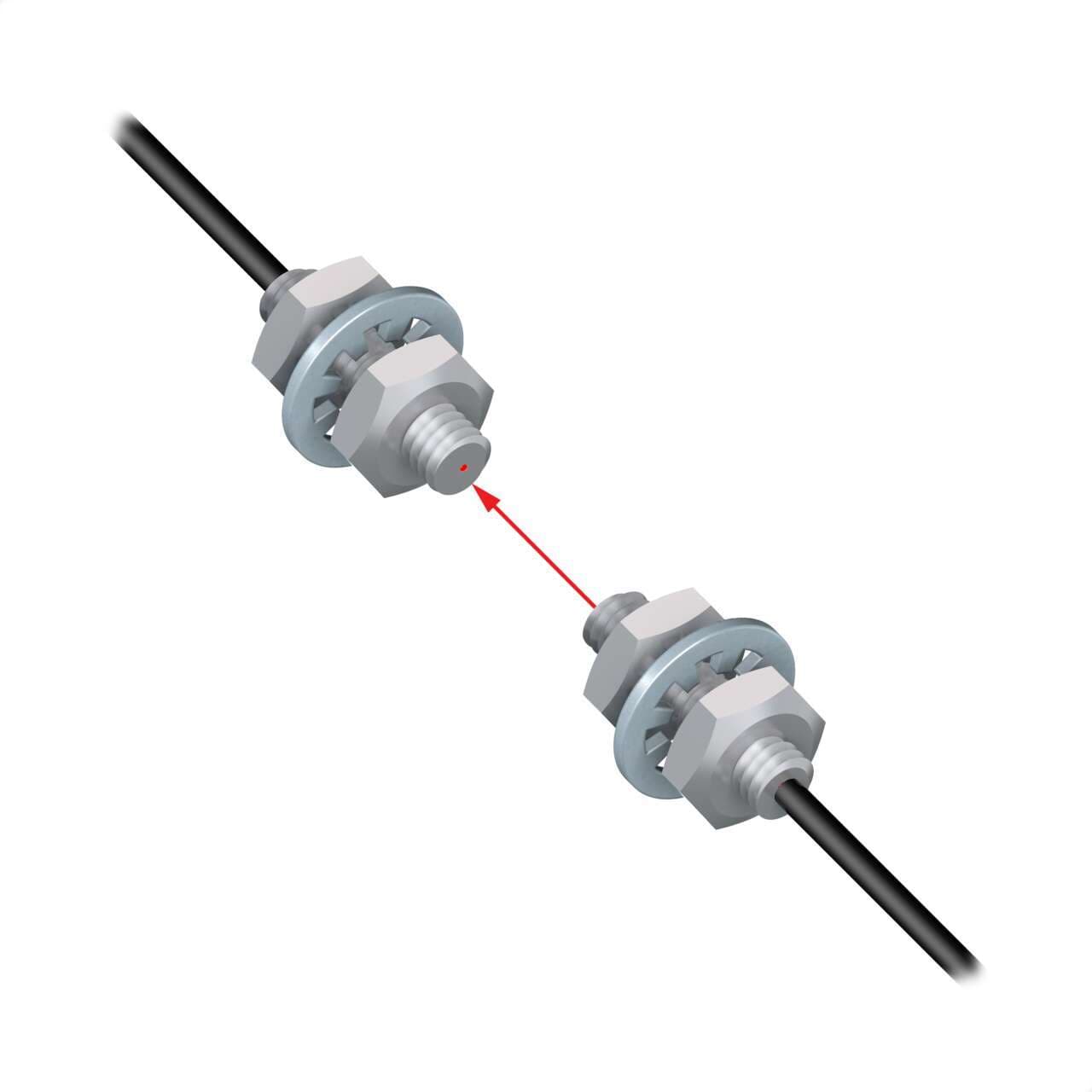

Plastic Fiber, Opposed Mode; Core Dia.: 4 x 0.25 mm; Fiber Length 2 m; Thread; Free cut

Product Details

  • Weight
    36.28736 g
  • Country Of Origin
    JP
  • Product series / family name
    Fiber sensors
  • Primary brand
    Banner Engineering
  • Diameter
    0.25mm fiber core
  • Main function
    Fiber sensor
  • Shape
    Cylindrical (threaded) end tip
  • Design
    through-beam system / opposed mode pair of individual fibers
  • Order code / Manufacturer SKU
    39138
  • Sub-range name
    Plastic fiber series
  • Length
    6ft / 2m
  • Ambient air temperature for operation
    +70 °C
  • Functions
    Fiber optic sensor
  • Material
    Brass sensing end Plastic fiber Polyethylene fiber sheath
  • Thread size
    M3
  • Housing Style
    Round
  • Fiber Sensing End Size
    M3
  • Feature: Small Object Detection
    No
  • Max Distance: DF-G3 (mm)
    No Data
  • Fiber Sheathing Material (Jacket)
    Polyethylene
  • Max Temp ( °C)
    85
  • Max Distance: DF-G1 (mm)
    No Data
  • Sensing Mode (General)
    Opposed
  • Sensing End Segment 1
    Thread
  • Integrated Lens
    No
  • Measured Max Distance (mm)
    No Data
  • Quantity Included
    2
  • Retractile
    No
  • Feature: Chemical Resistant
    No
  • Fiber Sensing End Size - Mounting Area
    M3
  • Sensing Mode (Detailed)
    Reflective
  • Flex Relief
    No
  • Application: Liquid Level
    No
  • Fiber Optic Type
    Plastic
  • Fiber Length (m)
    2
  • Feature: Extended Range
    No
  • Core Diameter (mm)
    4 x 0.3
  • Fiber Sensing End Tip
    Thread
  • Termination Type
    Plastic Fiber Sensors
  • Sensing End Material (Specific)
    Nickel-Plated Brass
  • Minimum Bend Radius (mm)
    5
  • Application: Vacuum Feed Through
    None
  • Beam Exit
    In-line
  • Minimum Repeat Bending Endurance
    1000
  • Max Distance: DF-G2 (mm)
    No Data
  • Termination
    Free Cut
  • Tariff Fiber Meters (fbm)
    16

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of PIT1X46U on Powermatic Associates is $80.00. Order now.

About the product

Banner Engineering PIT1X46U is a fiber optic sensor designed for precise in-line sensing applications. It features a through-beam system, also known as an opposed mode pair of individual fibers, with a 0.5mm fiber core diameter. This sensor is part of the Plastic fiber series and is equipped with a cylindrical (threaded) probe tip made of nickel-plated brass for the sensing end, while the fiber itself is encased in a polyethylene (PE) fiber sheath. The total length of the fiber is 15 feet (approximately 5 meters). It is engineered to operate effectively in ambient air temperatures up to +70°C.

PIT1X46U Related Documents

PIT1X4 SERIES UNTERMINATED-1630955374232.stpPIT1X4 SERIES UNTERMINATED-1630955374230.pdf
