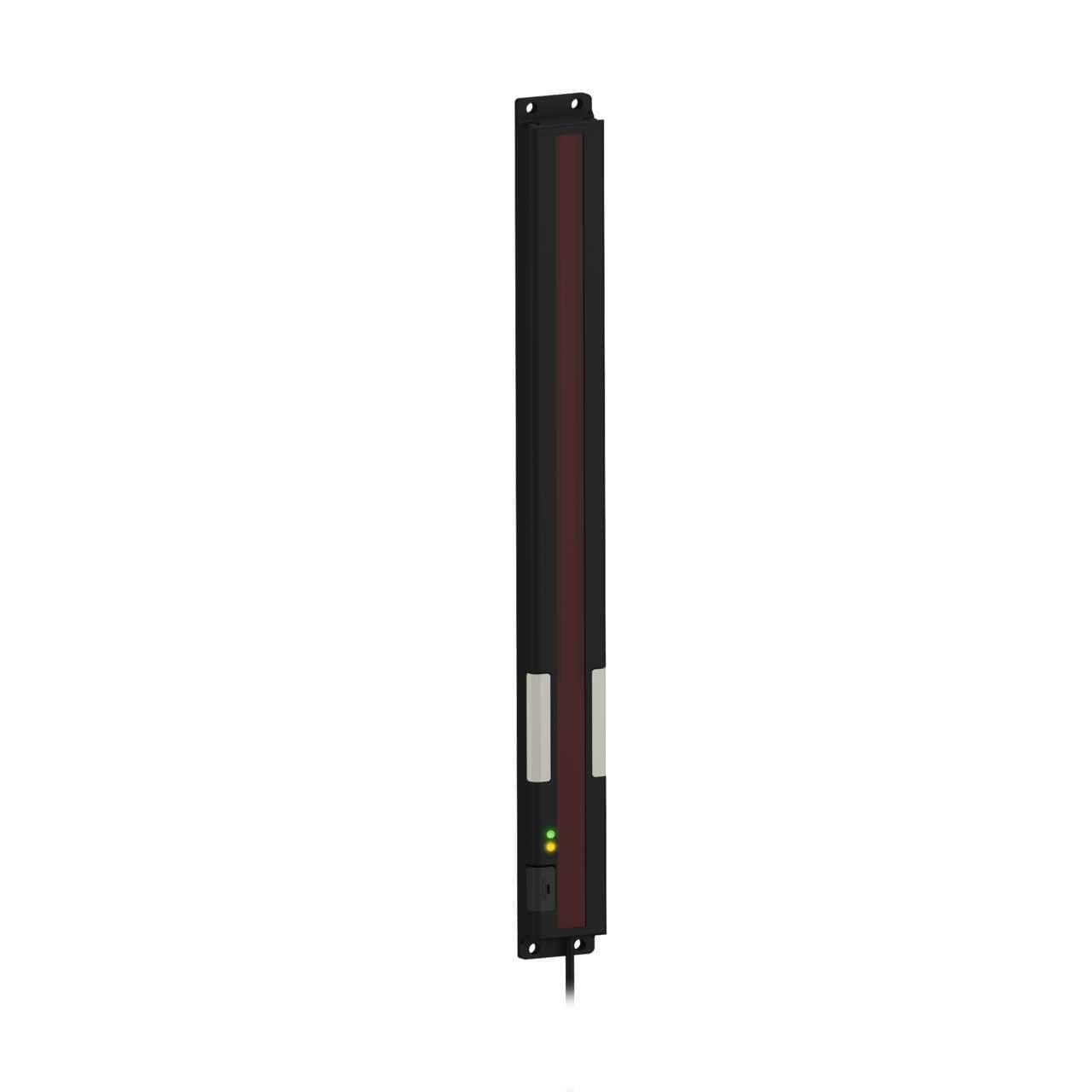

PVA300N6EQ Banner Optical Sensors

Product Details

• Weight
  362.8736 g
• Country Of Origin
  MX
• Primary brand
  Banner Engineering
• Supply voltage (DC)
  12-30Vdc (12Vdc-24Vdc nom.)
• Degree of protection
  IP62 NEMA 2
• Product series / family name
  PVA
• Connection type
  Pre-wired (pigtail) 4-pin M12 connector
• Ambient air temperature for operation
  0...+50 °C
• Functions
  Flat-mount array optical sensor for error-proofing of bin handpicking operations - through-beam sensing emitter only
• Mounting mode
  Surface Pole
• Compliant with standard(s)
  CE cULus Listed
• Order code / Manufacturer SKU
  51931
• Length (mm)
  (array) 300 mm
• Sensing distance
  2m / 2000 mm
• Digital outputs
  4 x digital outputs (12-30Vdc; NPN)
• Main function
  Sensor (Array)
• Frame color
  Black
• Material
  Acrylic Clear (window) Aluminum (housing)
• Light Color
  Green
• Length (m)
  (cable) 2 m
Technology used in component
LED
Supply voltage
(DC) 12-30 V
Visual position indicator
green LED (power ON) red LED (frequency selected)
Distance
(beam spacing) 25mm
Current consumption
62mA / 0.062 A
Net Height (mm)
(sensing height) 11.8" / 300 mm
Maximum temperature
50 °C
Power Source
DC
Product Size (mm)
Other
Maximum Sensing Distance (mm)
2000
Primary Housing Color
Black
Feature: Chemical Resistant
No
Sensing Mode (General)
Opposed
Color Technology
Standard LED
Sensing Array Length (mm)
300
Primary Window Material
Acrylic Clear
IO Link
No
NEMA Type and UL Type Rating
NEMA 2
Modbus RTU
No
Cable Length (m)
2
Mounting Thread
No Thread
Number of Input Pins/Conductors
4
Sensing Mode (Detailed)
Emitter
Color Option 1
Green
Array Length (mm)
300.0
Button Operation
Momentary
Job Light
Green
Housing Style
Flat Mount - Array
Quick Disconnect Type
M12 (Euro)
Input Type
Bimodal (PNP/NPN)
Number of Beams
13
Wireless
No
Activation Function
Optical
Connection
Pigtail QD
Max Output Response Time (ms)
52
Max Op. Temperature (°C)
50
Feature: Audible
No
Power
DC
Color Input Control
Individual (One wire/color, same number of colors as input wires)
Supply Voltage
12-30 V dc
Environmental Rating
IP62
Feature: Hazardous Area
No
Actuation
Yes
Number of Colors / Segments
1
Max Current Color (mA)
62
Beam Spacing (mm)
25.0
Pro-Editor Compatible (Discrete)
No
Primary Housing Material
Aluminum
Animation Option 1
Dip-Switch Controlled
Physical Dimensions (LxWxH or DxH mm)
341.4 x 30.0 x 15.0
Sensing Resolution (mm)
35.0
