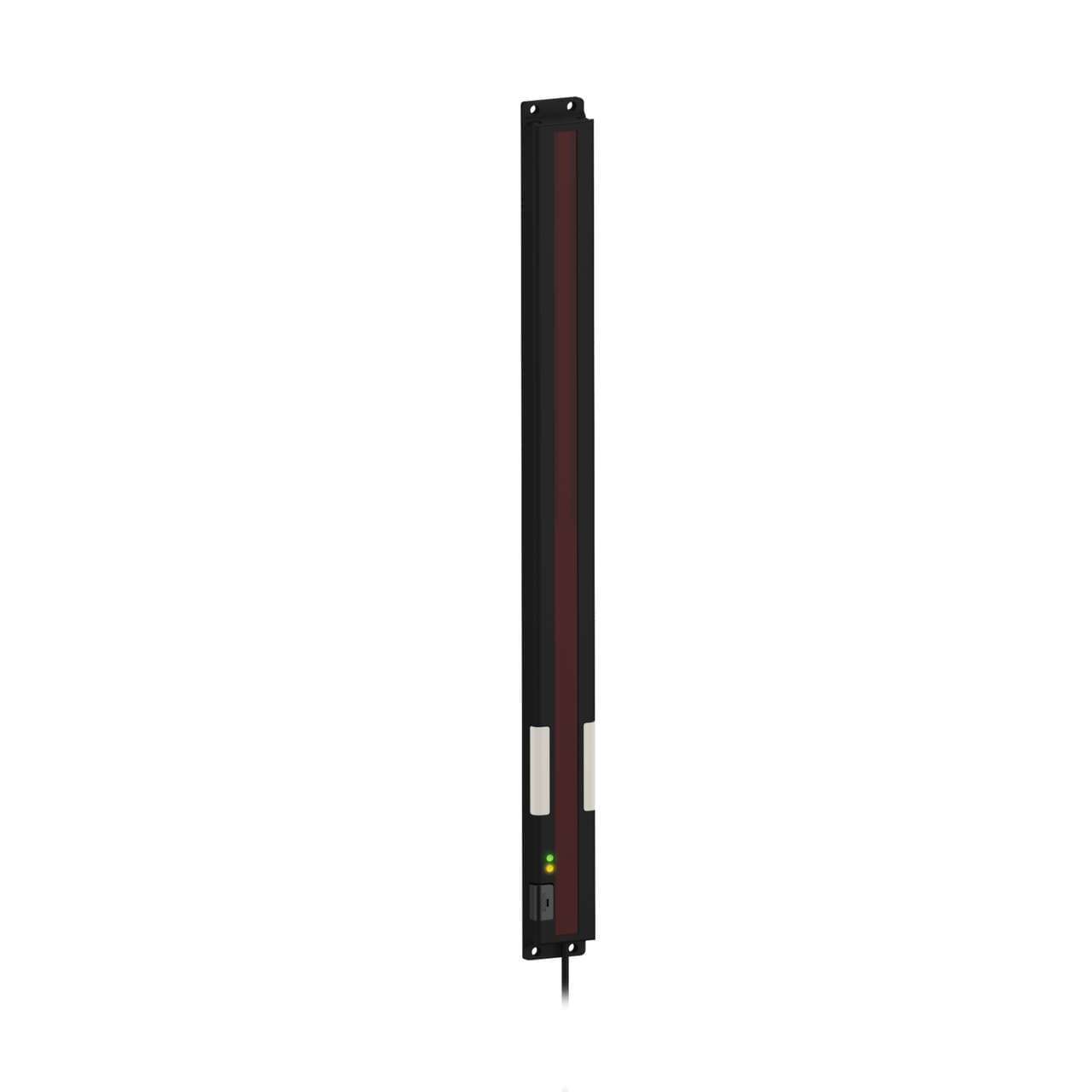

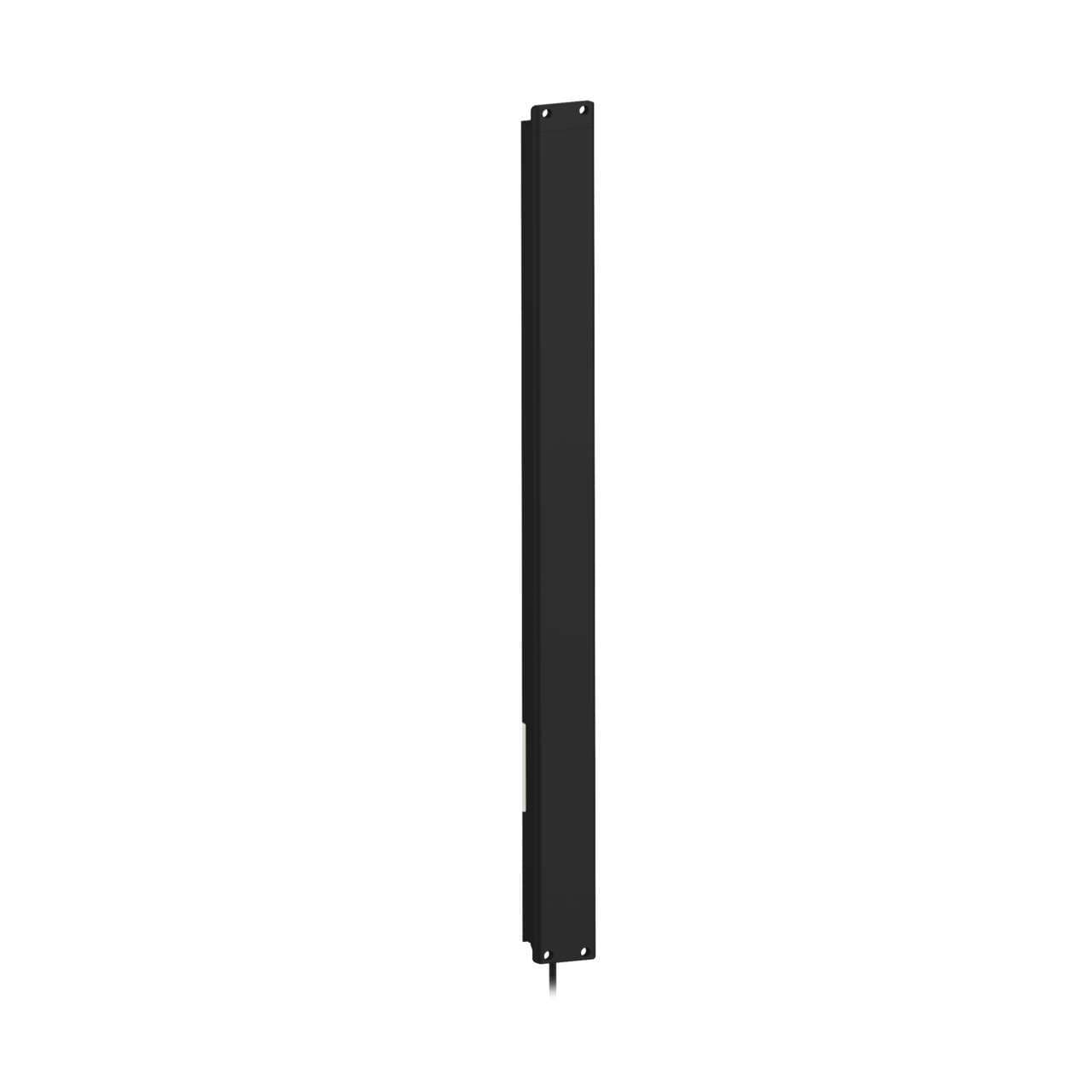

PVA375P6 Banner Optical Sensors

Product Details

• Weight
  879.96848 g
• Country Of Origin
  US
• Sensing Mode (Detailed)
  Emitter/Receiver Pair
• Color Technology
  Standard LED
• Input Type
  Bimodal (PNP/NPN)
• Activation Function
  Optical
• Array Length (mm)
  375.0
• Sensing Resolution (mm)
  35.0
• Mounting Thread
  No Thread
• Color Option 1
  Green
• Pro-Editor Compatible (Discrete)
  No
• Animation Option 1
  Dip-Switch Controlled
• Sensing Array Length (mm)
  375
• Button Operation
  Momentary
• Connection
  Cable
• Physical Dimensions (LxWxH or DxH mm)
  416.6 x 30.0 x 15.0
• Feature: Hazardous Area
  No
• Modbus RTU
  No
• Cable Length (m)
  0.15
• Power Source
  DC
Product Size (mm)
Other
Supply Voltage
12-30 V dc
Actuation
Yes
Housing Style
Flat Mount - Array
Primary Housing Material
Aluminum
Sensing Mode (General)
Opposed
Color Input Control
Individual (One wire/color, same number of colors as input wires)
Max Current Color (mA)
62
Beam Spacing (mm)
25.0
Primary Housing Color
Black
Power
DC
Number of Colors / Segments
1
Max Output Response Time (ms)
64
Output Type
PNP
NEMA Type and UL Type Rating
NEMA 2
Feature: Chemical Resistant
No
Maximum Sensing Distance (mm)
2000
Feature: Audible
No
Environmental Rating
IP62
Wireless
No
IO Link
No
Number of Beams
16
Max Op. Temperature (°C)
50
Operation
Normally Open/Normally Closed
Job Light
Green
Number of Input Pins/Conductors
4
Primary Window Material
Acrylic Clear
