Q60VR3AFV1000 Banner Proximity Sensors
Part#:Q60VR3AFV1000
Alt. Part#:70094
Manufacturer:Banner
Category:Proximity Sensors
Product Lifecycle:Active
Product description
Q60 Series: Adjust-Field Visible Red Univer Volt; Range: 200-1000 mm; Input: 12-250 V dc or 24-250 V ac; Output: Electromechanical Relay (SPDT); 2 m (6.5 ft) Cable
Product Details
- Weight 235.86784 g
- Country Of Origin US
- Outputs SPDT e/m Relay
- Special Feature: Remote Teach No
- Feature: Timing (Hold/Delay) Yes
- Sensing Mode (General) Proximity
- Connection Cable
- Repeatability (µs) 500
- Lens Material Acrylic
- Feature: Chemical Resistant No
- Primary Housing Material Thermoplastic
- Quick Disconnect Type No QD
- IP Rating IP67
- Feature: Encapsulated No
- Cable Length (m) 2
- Min Op. Temp. (°C) -20
- Delay at Power-up (ms) 150
- Indicator LEDs
- IO Link No
- Sensing Beam Visible Red LED
- Max Sensing Distance (mm) 1000
- Special Feature: Intrinsically Safe No
- Barrel Diameter (mm) N/A
- DeviceNet No
- Housing Style Rectangular
- Output response time (ms) 15
- Number of Pins 4
- Opposed Mode Emitter/Receiver N/A
- Sensing Mode (Detailed) Background Suppression (Adjustable)
- Input/Output E/M Relay
- Power Supply/Supply Voltage 12-250 V dc or 24-250 V ac
- NEMA Rating NEMA 6
- Feature: Hazardous Area No
- Power AC/DC Universal
- Operation Light/Dark Operate
- Special Feature: Water Detection No
- Max Op. Relative Humidity [%] 90% @ 50°C
- Feature: Audible No
- Sensing Beam Wavelength 665
- Max Op. Temp. (°C) 55
- Adjustments Screw Adjustment
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of Q60VR3AFV1000 on Powermatic Associates is $260.00. Order now.
About the product

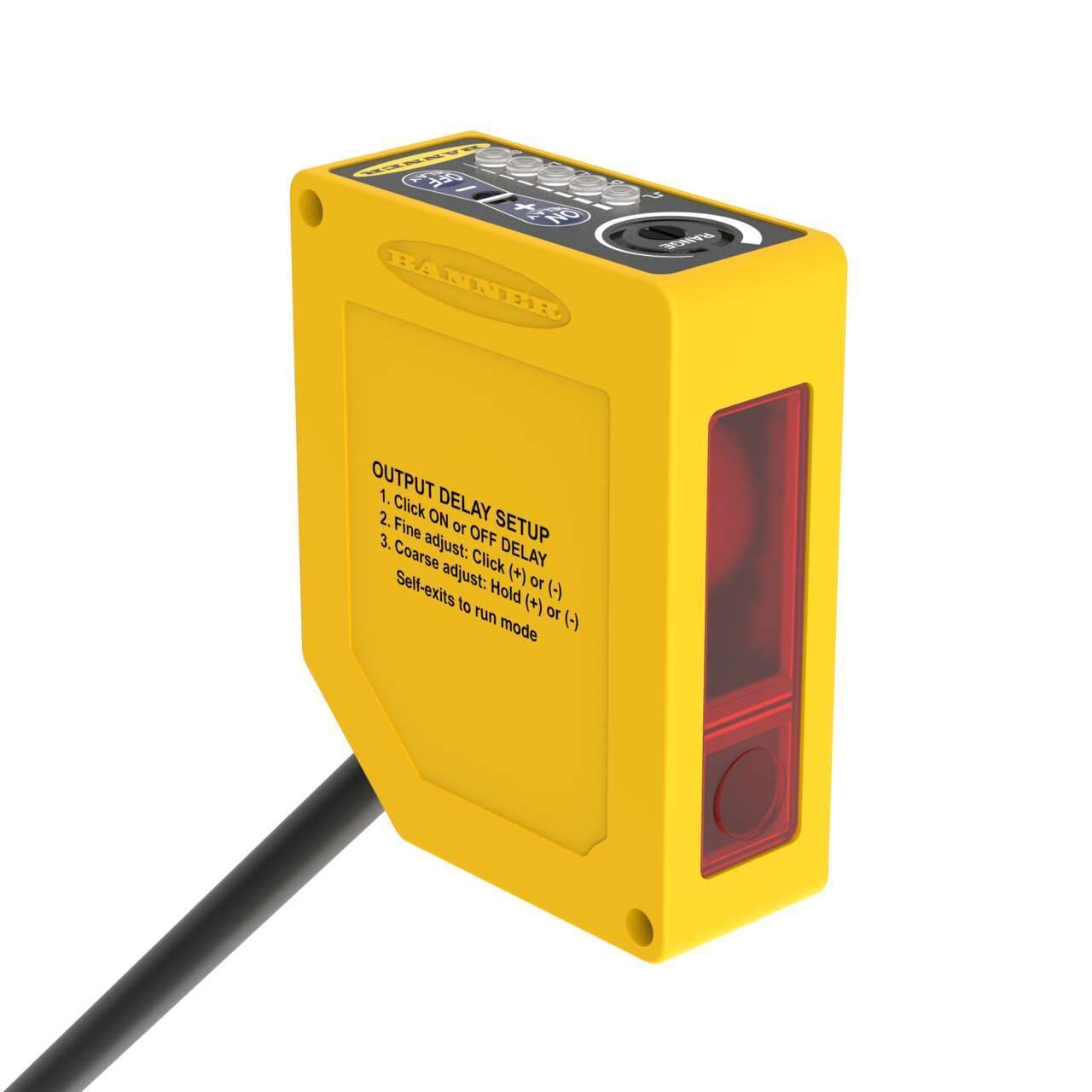

Banner Engineering Q60VR3AFV1000 is an adjustable-field photo-electric sensor designed with a background suppression system and screw adjustment for precise operation. It operates within an ambient air temperature range of -20 to +55°C and features a pre-wired 6.5ft / 2m cable with bare end flying leads for connectivity. This sensor supports a supply voltage range of 24Vac-250Vac (with 200Vac / 220Vac / 240Vac nominal) and 12Vdc-250Vdc (with 24Vdc / 48Vdc / 120Vdc nominal), accommodating various power systems. It belongs to the Q60AFV series and offers a degree of protection rated at IP67 NEMA 6, ensuring durability in challenging environments. The sensor's thermoplastic housing and acrylic lens are built to last, with dimensions of 75mm in height, 25mm in width, and 60mm in depth. It can detect objects within a sensing distance of 20cm to 1m using visible red light. Additionally, it features a rectangular shape, operates in both Light-ON and Dark-ON modes, includes 1 x digital output (SPDT relay contact), and boasts a quick response time of 15ms / 0.015 s.
