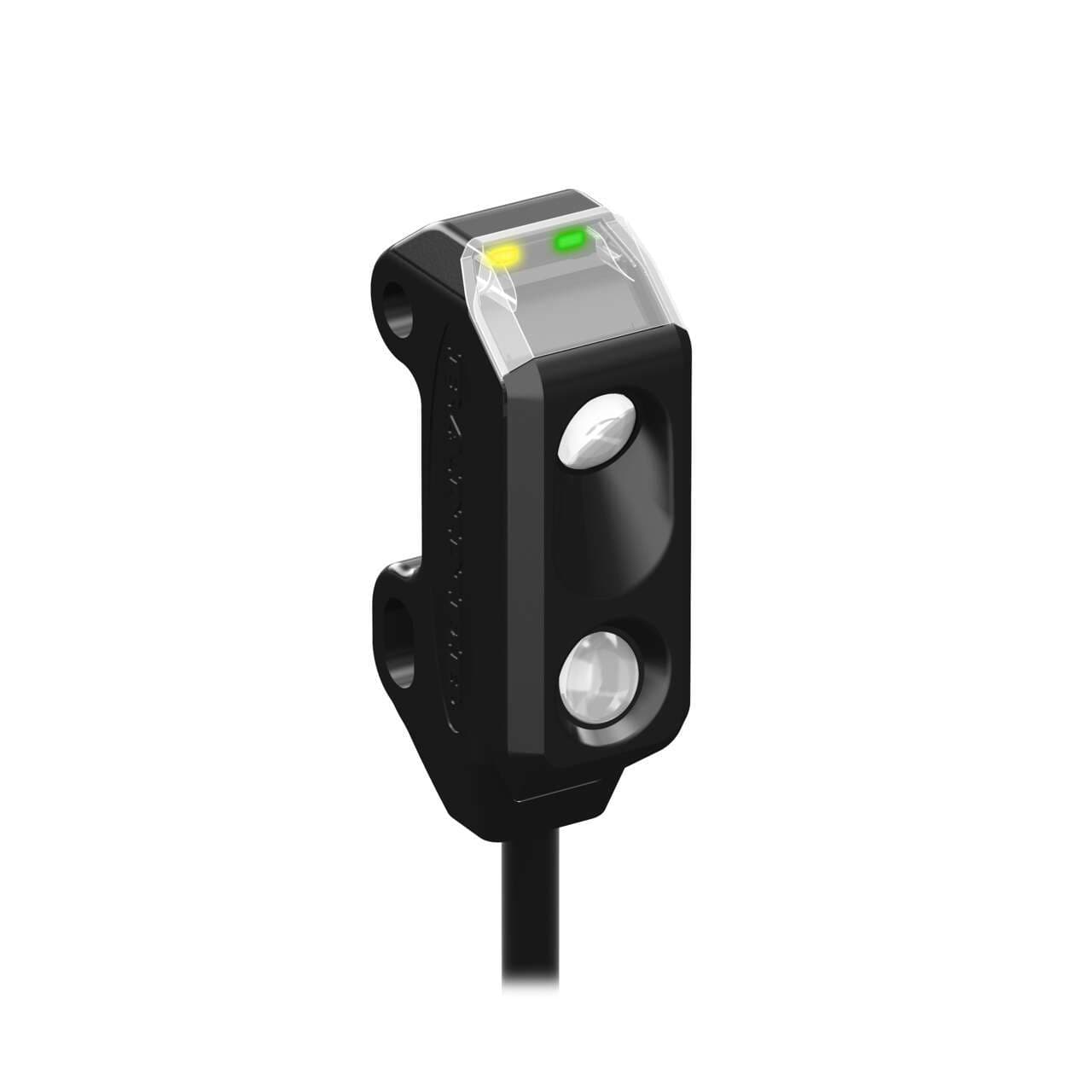

VS1AP5CV10 Banner Proximity Sensors

Product Details

• Weight
  54.43104 g
• Country Of Origin
  MX
• Supply voltage (DC)
  10Vdc-30Vdc (12Vdc / 24Vdc nom.)
• Light Color
  Visible red
• Digital outputs
  1 x digital output (PNP transistor)
• Sub-range name
  VS1 series
• Wavelength
  630 nm
• Compliant with standard(s)
  CE
• Primary brand
  Banner Engineering
• Sensing distance
  10mm
• Material
  thermoplastic housing Acrylic lns.
• Order code / Manufacturer SKU
  56494
• Functions
  Photo-electric sensor green LED (power ON) amber LED (light sensed)
• Shape
  Rectangular
• Degree of protection
  IP54 NEMA 3
• Main function
  Sensor (Photo-electric)
• Design
  convergent mode
• Ambient air temperature for operation
  -20...+55 °C
• Operating mode
  Light-ON NO (Normally Open)
• Connection type
  Pre-wired with 6.5ft / 2m cable terminated with bare end flying leads
Response time
1ms / 0.001 s
Sensing Mode (Detailed)
Convergent
Connection
Cable
Repeatability (µs)
250
Opposed Mode Emitter/Receiver
N/A
Sensing Beam Wavelength
630
IP Rating
IP54
Outputs
PNP
Max Op. Temp. (°C)
55
Indicator
LEDs
Housing Style
Rectangular
Quick Disconnect Type
No QD
Delay at Power-up (ms)
N/A
Feature: Timing (Hold/Delay)
No
Cable Length (m)
2
Sensing Beam
Visible Red LED
Min Op. Temp. (°C)
-20
Number of Pins
3
Feature: Encapsulated
No
Sensing Mode (General)
Proximity
Special Feature: Intrinsically Safe
No
Barrel Diameter (mm)
N/A
IO Link
No
Power Supply/Supply Voltage
10-30 V dc
Special Feature: Water Detection
No
Adjustments
N/A
DeviceNet
No
Input/Output
Discrete
Special Feature: Remote Teach
No
Lens Material
Acrylic
Feature: Chemical Resistant
No
Primary Housing Material
Thermoplastic
Output response time (ms)
1
Max Op. Relative Humidity [%]
80% @ 50°C
Feature: Audible
No
Max Sensing Distance (mm)
10
Power
DC
Operation
Light Operate
NEMA Rating
NEMA 3
Feature: Hazardous Area
No
