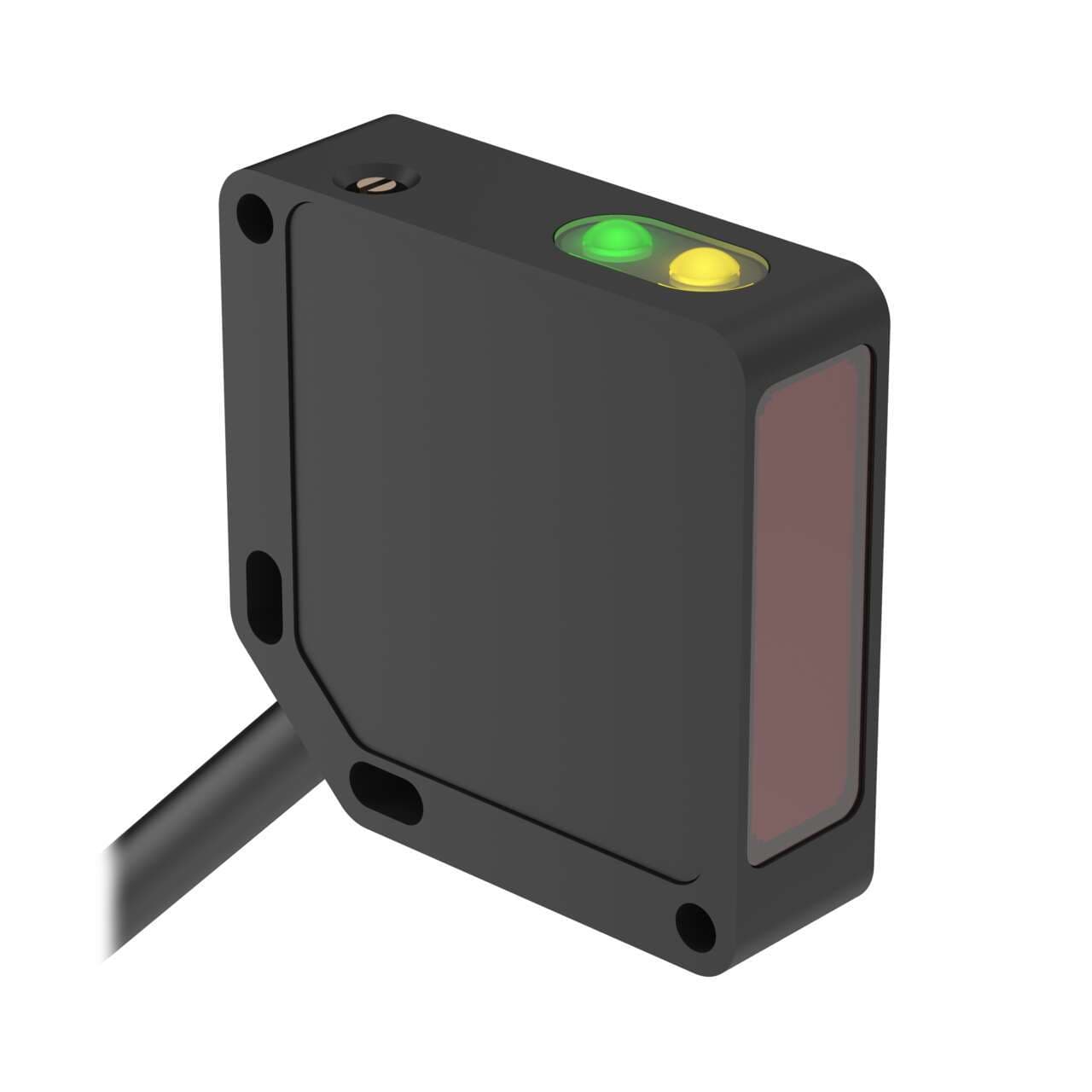

QM42VN6R Banner Optical Sensors

QM42VN6R on Powermatic Associates
Banner
  • QM42VN6R
  • QM42VN6R

Part#:QM42VN6R

Alt. Part#:44337

Manufacturer:Banner

Category:Optical Sensors

Product Lifecycle:Active

Product description

QM42 Series: Receiver; Range: 10 m; Input: 10-30 V dc; Output: SPDT (Complementary) NPN; 2 m (6.5 ft) Cable

Product Details

  • Weight
    192.1415712 g
  • Country Of Origin
    CN
  • Supply voltage (DC)
    10Vdc-30Vdc (12Vdc / 24Vdc nom.)
  • Color
    Black housing
  • Sub-range name
    QM42
  • Wavelength
    880 nm
  • Operating mode
    Light-ON Dark-ON
  • Degree of protection
    IP67 NEMA 6
  • Product series / family name
    Q series
  • Light Color
    Infrared (IR)
  • Net Depth (mm)
    42 mm
  • Main function
    Sensor (Photo-electric)
  • Design
    through-beam system / opposed mode
  • Material
    Die-cast Zinc alloy housing Acrylic lns.
  • Sensing distance
    10m
  • Digital outputs
    1 x digital output (NPN transistor)
  • Shape
    Rectangular
  • Response time
    1ms / 0.001 s
  • Net Width (mm)
    12.7 mm
  • Connection type
    Pre-wired with 6.5ft / 2m cable terminated with bare end flying leads
  • Compliant with standard(s)
    cURus CE
  • Functions
    Photo-electric sensor receiver green LED (power ON) red LED (failure) potentiometer adjustment
  • Primary brand
    Banner Engineering
  • Net Height (mm)
    42 mm
  • Ambient air temperature for operation
    -20...+55 °C
  • Order code / Manufacturer SKU
    44337
  • Primary Housing Material
    Zinc Alloy Die-Cast
  • Connection
    Cable
  • Special Feature: Remote Teach
    No
  • Opposed Mode Emitter/Receiver
    Receiver
  • DeviceNet
    No
  • Max Sensing Distance (mm)
    10000
  • Power
    DC
  • Max Op. Temp. (°C)
    70
  • Delay at Power-up (ms)
    100
  • Indicator
    LEDs
  • Input/Output
    Discrete
  • Power Supply/Supply Voltage
    10-30 V dc
  • Sensing Beam Wavelength
    880
  • Lens Material
    Acrylic
  • Feature: Chemical Resistant
    No
  • Cable Length (m)
    2
  • Outputs
    NPN
  • Quick Disconnect Type
    No QD
  • NEMA Rating
    NEMA 6
  • Feature: Timing (Hold/Delay)
    No
  • Sensing Mode (General)
    Opposed
  • Output response time (ms)
    1 ON/0.5 OFF
  • Repeatability (µs)
    120
  • Feature: Hazardous Area
    No
  • Min Op. Temp. (°C)
    -20
  • IP Rating
    IP67
  • Feature: Encapsulated
    No
  • Sensing Beam
    Infrared LED
  • Special Feature: Intrinsically Safe
    No
  • Number of Pins
    4
  • Feature: Audible
    No
  • Sensing Mode (Detailed)
    Receiver
  • Special Feature: Water Detection
    No
  • Adjustments
    Potentiometer
  • IO Link
    No
  • Housing Style
    Rectangular
  • Operation
    Light/Dark Operate
  • Max Op. Relative Humidity [%]
    90% @ 50°C
  • Barrel Diameter (mm)
    N/A

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of QM42VN6R on Powermatic Associates is $203.00. Order now.


About the product

Banner Engineering QM42VN6R is a photo-electric sensor designed for through-beam system applications with opposed mode potentiometer adjustment. This sensor operates within an ambient air temperature range of -20 to +55 °C and features a pre-wired connection with a 6.5ft / 2m cable terminated with bare end flying leads. It belongs to the QM42 series and offers a degree of protection rated at IP67 NEMA 6, ensuring durability in various environments. The supply voltage required for operation is between 10Vdc to 30Vdc, with nominal values at 12Vdc and 24Vdc. Its rectangular shape is constructed from a die-cast Zinc alloy housing with an Acrylic lens, and it comes in a black color. The sensor has a net height of 42 mm, a net width of 13 mm, and a net depth of 42 mm. It is capable of sensing distances up to 10m and utilizes infrared light with a wavelength of 880 nm. The operating modes include Light-ON and Dark-ON, and it features 1 x digital output (NPN transistor; complementary NO/NC) with a response time of 1ms / 0.001 s.
