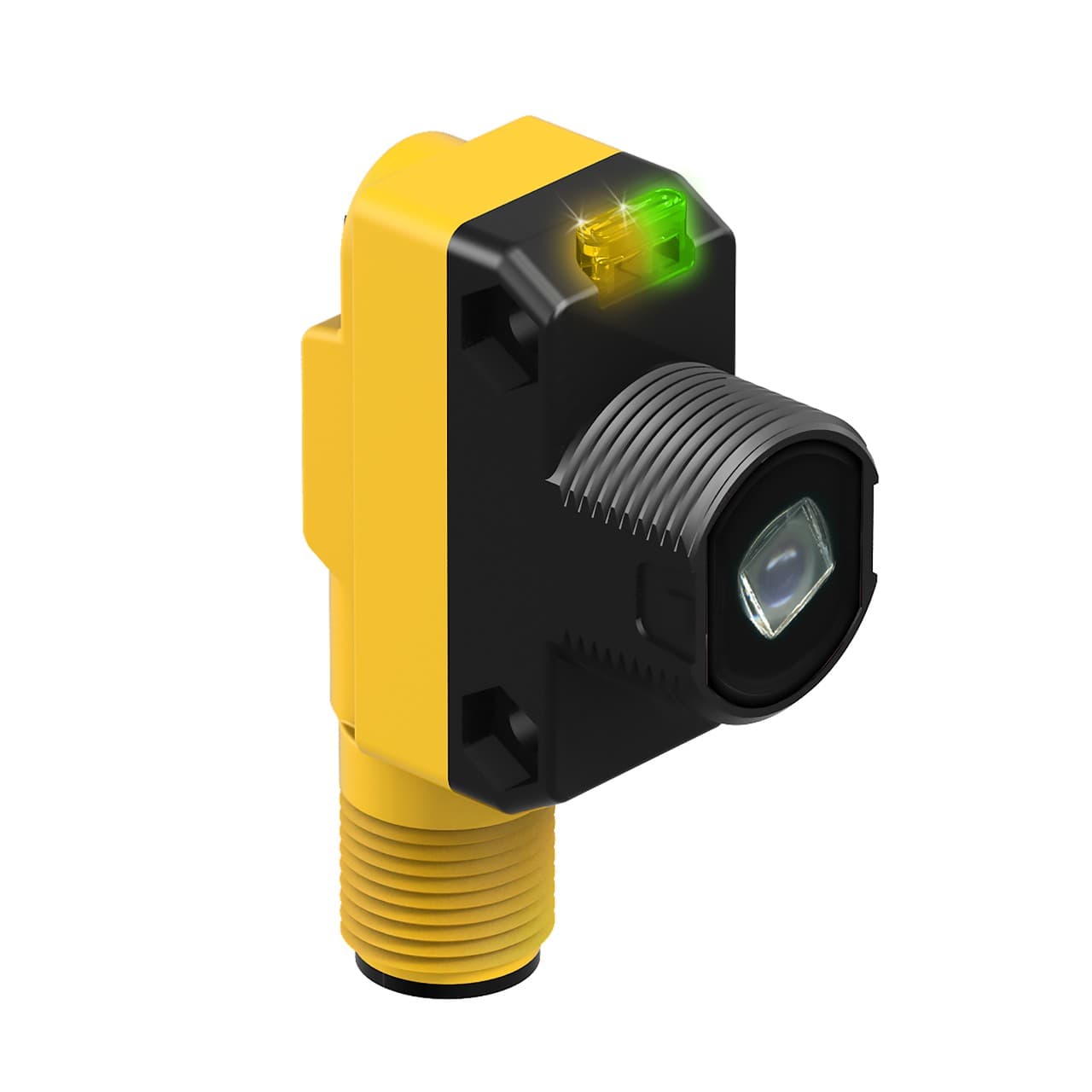

QS186LE12Q7 Banner Electronic Components

Product Details

• Product series / family name
  WORLD-BEAM series
• Thread size
  M18
• Sub-range name
  QS186LE series
• Main function
  Sensor (Photo-electric)
• Functions
  Class 1 Laser photo-electric emitter green LED (power ON) yellow LED (light sensed)
• Connection type
  Pre-equipped with 4-pin Pico-style M8 connector
• Order code / Manufacturer SKU
  27999
• Design
  opposed (horizontal) system
• Degree of protection
  IP67 NEMA 6
• Supply voltage (DC)
  10Vdc-30Vdc (12Vdc / 24Vdc nom.)
• Shape
  Rectangular
• Mounting mode
  Threaded mount
• Material
  thermoplastic housing PMMA lns.
• Primary brand
  Banner Engineering
• Wavelength
  650 nm
• Compliant with standard(s)
  CE
• Light Color
  Visible red
• Ambient air temperature for operation
  -10...+50 °C
• Sensing Beam
  Visible Red Laser
• Outputs
  N/A
Special Feature: Water Detection
No
Barrel Diameter (mm)
18
Max Sensing Distance (mm)
15000
Quick Disconnect Type
M8 (Pico)
Number of Pins
4
Adjustments
N/A
Housing Style
Rectangular w/M18 Mount
Special Feature: Intrinsically Safe
No
Max Op. Relative Humidity [%]
95% @ 50°C
Feature: Chemical Resistant
No
NEMA Rating
NEMA 6
Feature: Quick Disconnect
Yes
Small Visible Spot
Laser
Max Op. Temp. (°C)
50
Lens Material
PMMA
Feature: Audible
No
Laser Classification
Class 1
Min Op. Temp. (°C)
-10
Repeatability (µs)
N/A
Feature: Encapsulated
No
DeviceNet
No
Primary Housing Material
ABS
Operation
N/A
Sensing Beam Wavelength
650
Feature: Timing (Hold/Delay)
No
Power
DC
Connection
Integral QD
Delay at Power-up (ms)
250
Opposed Mode Emitter/Receiver
Emitter
Sensing Mode (Detailed)
Laser Emitter
Output response time (ms)
N/A
IP Rating
IP67
Feature: Hazardous Area
No
Sensing Mode (General)
Opposed
Special Feature: Remote Teach
No
IO Link
No
Power Supply/Supply Voltage
10-30 V dc
Indicator
LEDs
