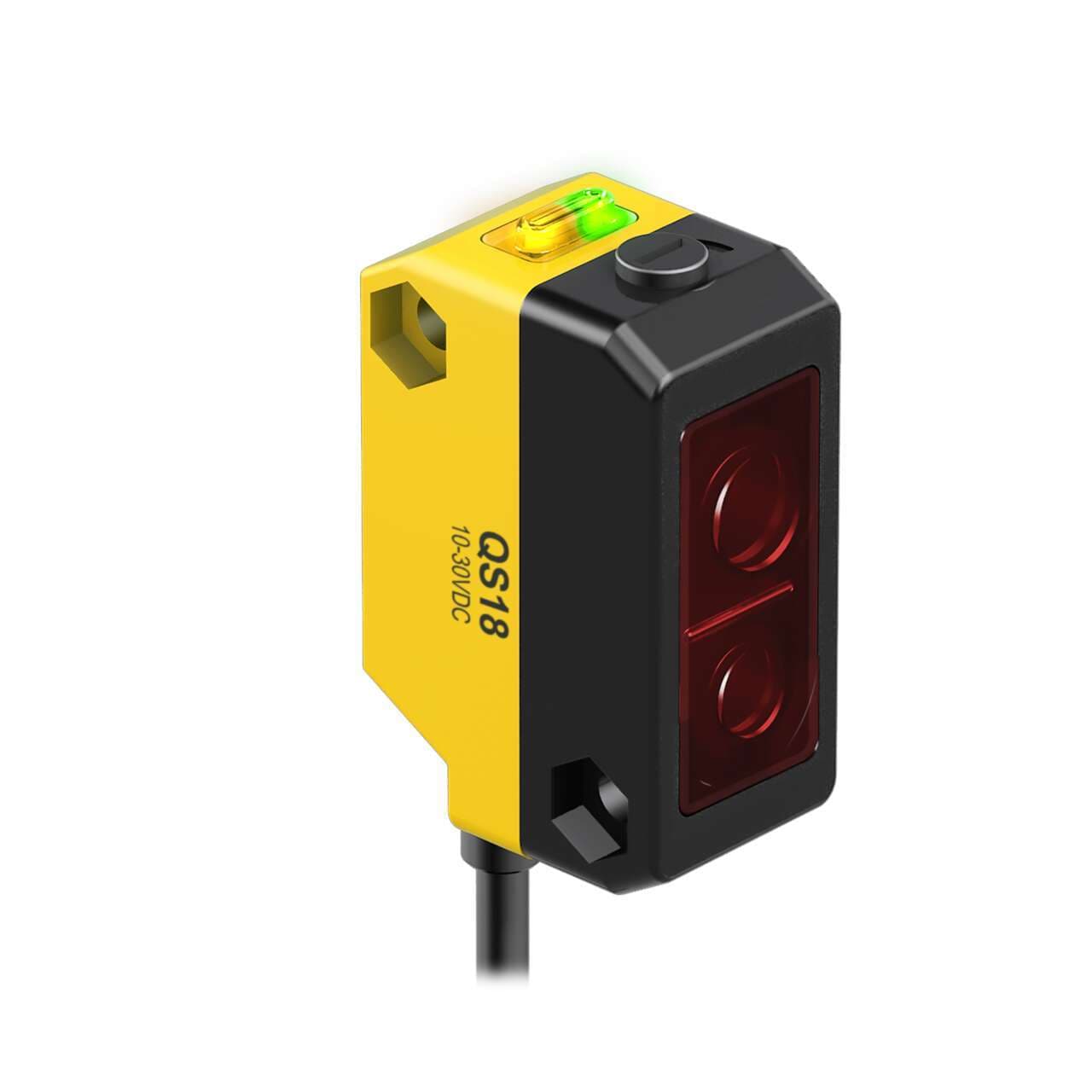

QS18AB6AF350 Banner Proximity Sensors

QS18AB6AF350 on Powermatic Associates
Banner
  • QS18AB6AF350
  • QS18AB6AF350

Part#:QS18AB6AF350

Alt. Part#:808872

Manufacturer:Banner

Category:Proximity Sensors

Product Lifecycle:Active

Product description

WORLD-BEAM: Adjustable Field Background Suppression; Cutoff Adjustment Range: 30 to 350 mm; Input: 10-30 V dc; Outputs: Bipolar NPN and PNP Light Operate; 2 m (6.5 ft) Cable

Product Details

  • Weight
    54.43104 g
  • Country Of Origin
    CN
  • Sensing Mode (Detailed)
    Background Suppression (Adjustable)
  • Special Feature: Intrinsically Safe
    No
  • Sensing Beam Wavelength
    640
  • Feature: Audible
    No
  • Power
    DC
  • Operation
    Light Operate
  • Adjustments
    Mechanical Screw
  • Feature: Hazardous Area
    No
  • Sensing Mode (General)
    Proximity
  • Quick Disconnect Type
    No QD
  • Max Op. Relative Humidity [%]
    95% @ 50°C
  • Feature: Timing (Hold/Delay)
    No
  • Housing Style
    Rectangular
  • Connection
    Cable
  • Min Op. Temp. (°C)
    -20
  • Repeatability (µs)
    250
  • NEMA Rating
    NEMA 6
  • Barrel Diameter (mm)
    N/A
  • DeviceNet
    No
  • Outputs
    Bipolar (NPN & PNP)
  • Special Feature: Water Detection
    No
  • Cable Length (m)
    2
  • Power Supply/Supply Voltage
    10-30 V dc
  • Number of Pins
    4
  • IP Rating
    IP67
  • Indicator
    LEDs
  • Feature: Encapsulated
    No
  • Input/Output
    Discrete
  • Max Op. Temp. (°C)
    55
  • Sensing Beam
    Visible Red LED
  • Max Sensing Distance (mm)
    350
  • Output response time (ms)
    2.5
  • Delay at Power-up (ms)
    200
  • Opposed Mode Emitter/Receiver
    N/A
  • Feature: Chemical Resistant
    No
  • Primary Housing Material
    ABS
  • Special Feature: Remote Teach
    No
  • Lens Material
    Acrylic
  • IO Link
    No

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of QS18AB6AF350 on Powermatic Associates is $116.00. Order now.

About the product

Banner Engineering QS18AB6AF350 is an adjustable-field photo-electric sensor featuring a background suppression system. This sensor is part of the QS18 series and comes in a rectangular shape with a thermoplastic housing and an acrylic lens. It is designed with a pre-wired 6.5ft / 2m cable terminated with bare end flying leads for connectivity. The QS18AB6AF350 offers a sensing distance of 350mm and operates in Light-ON mode. It includes 1 x digital output (PNP/NPN transistor) and boasts a degree of protection rated at IP67 NEMA 6, indicating its capability to withstand dust and water ingress.
