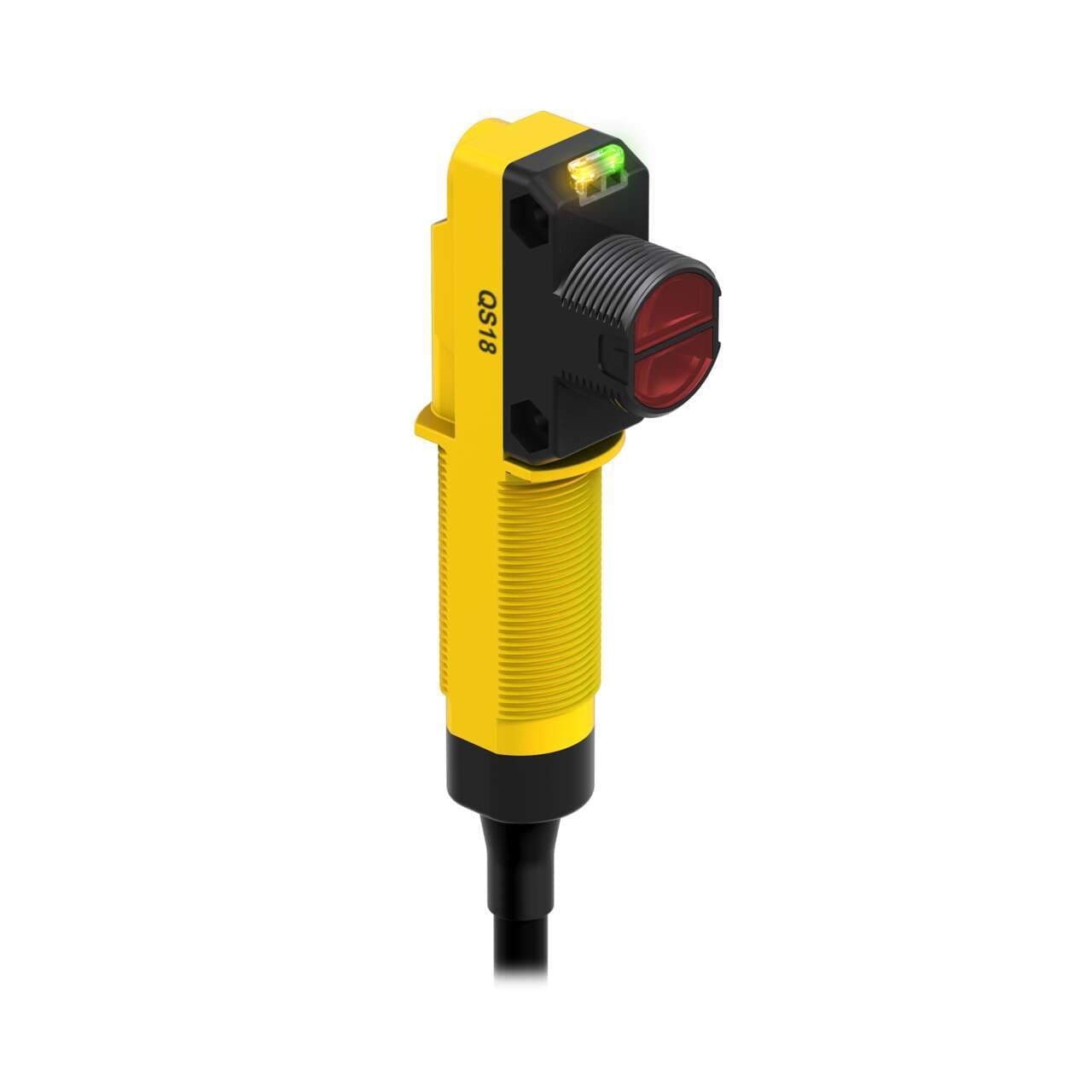

QS18ANWDL Banner Proximity Sensors
Part#:QS18ANWDL
Alt. Part#:79587
Manufacturer:Banner
Category:Proximity Sensors
Product Lifecycle:Active
Product description
WORLD-BEAM QS18 Universal Volt; Diffuse Visble R; Range: 450 mm; Input: 20-270 V ac/dc; Output:LO; N-MOSFET (Sinking); 2 m (6.5 ft) Cable
Product Details
- Weight 158.7572 g
- Country Of Origin MX
- Barrel Diameter (mm) 18
- Cable Length (m) 2
- Outputs N-MOSFET (Sinking)
- Special Feature: Intrinsically Safe No
- Housing Style Rectangular w/M18 Mount
- Connection Cable
- Special Feature: Remote Teach No
- Max Op. Relative Humidity [%] 95% @ 55°C
- DeviceNet No
- Primary Housing Material ABS
- Quick Disconnect Type No QD
- Sensing Beam Wavelength 630
- Input/Output Discrete
- Power Supply/Supply Voltage 20-270 V ac/dc
- Repeatability (µs) 1500
- Feature: Timing (Hold/Delay) No
- Sensing Mode (Detailed) Diffuse
- Min Op. Temp. (°C) -25
- Number of Pins 3
- Max Sensing Distance (mm) 450
- Max Op. Temp. (°C) 70 if < 140V, 55 if > 140V
- NEMA Rating NEMA 6
- Feature: Encapsulated No
- Power AC/DC Universal
- Output response time (ms) 8.3
- IP Rating IP67
- Feature: Quick Disconnect No
- Sensing Mode (General) Proximity
- Operation Light Operate
- Delay at Power-up (ms) 100ms dc, 300ms ac
- Sensing Beam Visible Red LED
- Special Feature: Water Detection No
- Lens Material PMMA
- IO Link No
- Indicator LEDs
- Adjustments Potentiometer
- Feature: Chemical Resistant No
- Feature: Hazardous Area No
- Feature: Audible No
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of QS18ANWDL on Powermatic Associates is $121.00. Order now.
About the product
Banner Engineering QS18ANWDL is a photo-electric sensor designed for versatile applications, featuring an M18 threaded mount for secure installation. It operates within an ambient air temperature range of -25 to +70°C and is equipped with a diffuse mode potentiometer adjustment for precise sensing control. This sensor is pre-wired with a 6.5ft / 2m cable that terminates with bare end flying leads, facilitating easy integration into various systems. It supports a wide supply voltage range, accepting 20Vac-270Vac (with 200Vac, 220Vac, and 240Vac as nominal values) and 20Vdc-270Vdc (with 24Vdc, 48Vdc, and 120Vdc as nominal values), making it part of the QS18 universal voltage series. The sensor boasts an IP67 NEMA 6 degree of protection, ensuring durability in harsh environments. Its rectangular shape is constructed from a thermoplastic housing with a Polymethyl methacrylate (PMMA) lens, offering robustness and clarity. With a sensing distance of 450mm and utilizing visible red light for detection, the QS18ANWDL operates in Light-ON mode. It features a single digital output (NPN MOSFET transistor) and has a quick response time of 8.3ms / 0.0083 s, ensuring timely and accurate sensing performance.
