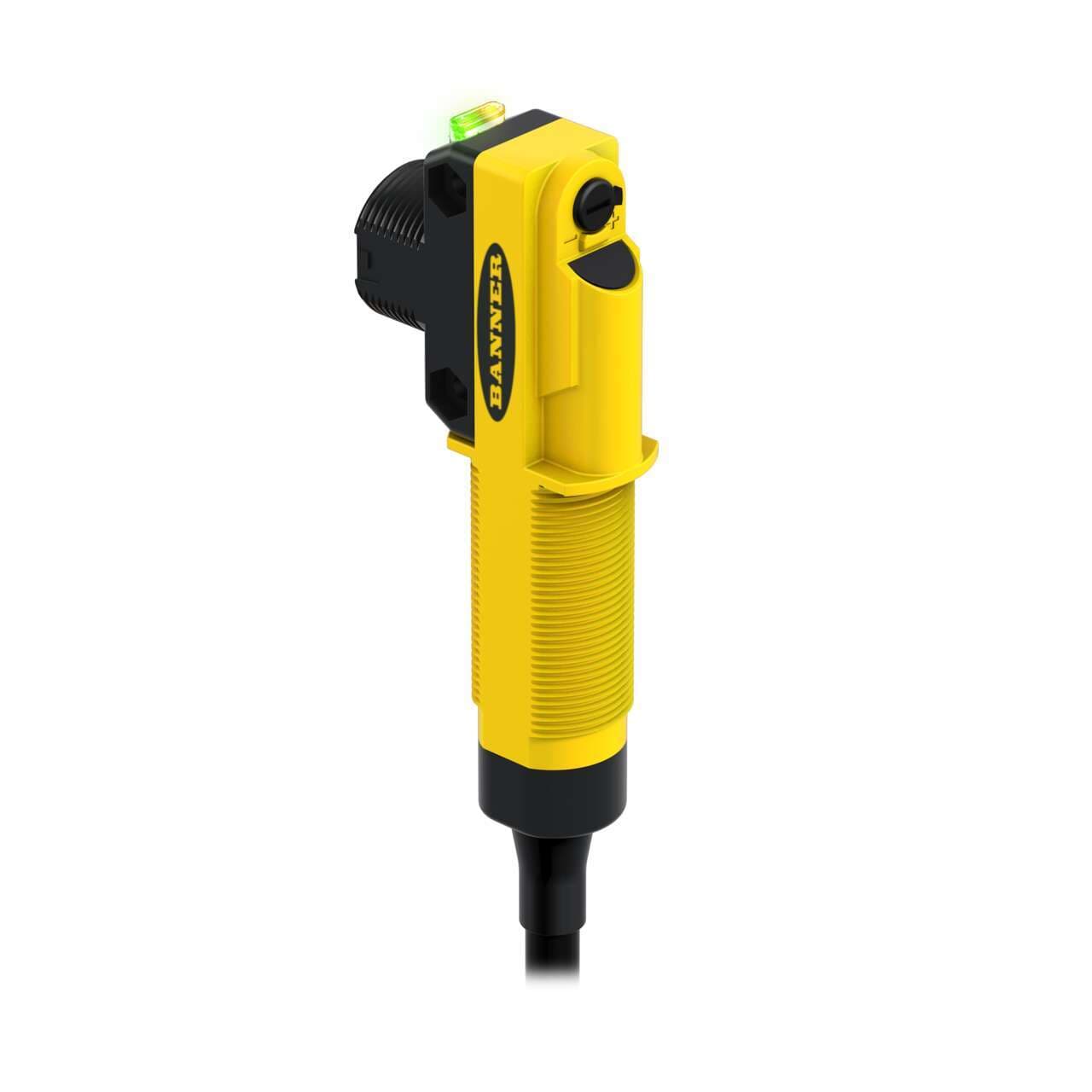

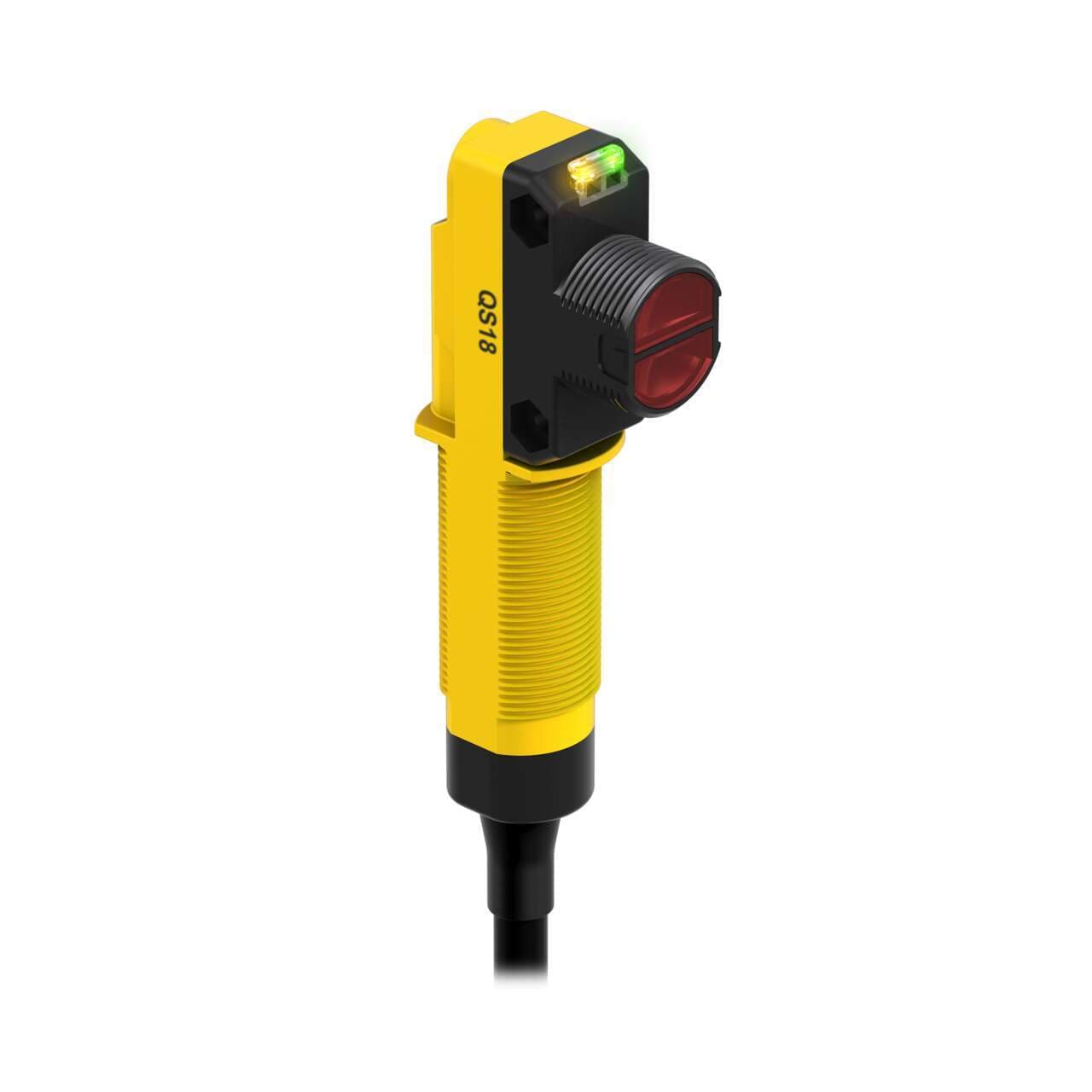

QS18APWDXL Banner Proximity Sensors
Part#:QS18APWDXL
Alt. Part#:79805
Manufacturer:Banner
Category:Proximity Sensors
Product Lifecycle:Active
Product description
WORLD-BEAM QS18 Universal Volt; Diffuse Infrared; Range: 1 m; Input: 20-140 V ac/dc; Output: LO; P-MOSFET (Sourcing); 2 m Cable
Product Details
- Weight 159.664384 g
- Country Of Origin MX
- Primary brand Banner Engineering
- Supply voltage (AC) 20Vac-140Vac (120Vac nom.)
- Sensing distance 1m
- Digital outputs 1 x digital output (PNP MOSFET transistor)
- Ambient air temperature for operation -25...+70 °C
- Product series / family name WORLD-BEAM series
- Functions Photo-electric sensor green LED (power ON) yellow LED (light sensed) potentiometer adjustment
- Shape Rectangular
- Design diffuse mode
- Connection type Pre-wired with 6.5ft / 2m cable terminated with bare end flying leads
- Sub-range name QS18 universal voltage series
- Thread size M18
- Degree of protection IP67 NEMA 6
- Main function Sensor (Photo-electric)
- Supply voltage (DC) 20Vdc-140Vdc (24Vdc / 48Vdc / 120Vdc nom.)
- Light Color Infrared (IR)
- Mounting mode Threaded mount
- Material thermoplastic housing PMMA lns.
- Operating mode Light-ON
- Compliant with standard(s) cULus CE
- Response time 8.3ms / 0.0083 s
- Order code / Manufacturer SKU 79805
- Delay at Power-up (ms) 100ms dc, 300ms ac
- Power AC/DC Universal
- IP Rating IP67
- Sensing Mode (General) Proximity
- Cable Length (m) 2
- Housing Style Rectangular w/M18 Mount
- Sensing Mode (Detailed) Diffuse
- Connection Cable
- Max Sensing Distance (mm) 1000
- Special Feature: Water Detection No
- Number of Pins 3
- Feature: Chemical Resistant No
- Special Feature: Intrinsically Safe No
- Feature: Encapsulated No
- Operation Light Operate
- Barrel Diameter (mm) 18
- DeviceNet No
- Input/Output Discrete
- Quick Disconnect Type No QD
- Feature: Quick Disconnect No
- Min Op. Temp. (°C) -25
- Repeatability (µs) 1500
- IO Link No
- Special Feature: Remote Teach No
- Feature: Hazardous Area No
- Primary Housing Material ABS
- Output response time (ms) 8.3
- Adjustments Potentiometer
- Sensing Beam Infrared LED
- Outputs P-MOSFET (Sourcing)
- Power Supply/Supply Voltage 20-140 V ac/dc
- NEMA Rating NEMA 6
- Lens Material PMMA
- Feature: Audible No
- Feature: Timing (Hold/Delay) No
- Max Op. Temp. (°C) 70
- Max Op. Relative Humidity [%] 95% @ 55°C
- Indicator LEDs
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of QS18APWDXL on Powermatic Associates is $121.00. Order now.
About the product
Banner Engineering QS18APWDXL is a photo-electric sensor designed with a diffuse mode potentiometer adjustment for precise sensing applications. It features an M18 threaded mount for secure installation and operates within an ambient air temperature range of -25 to +70°C. This sensor is equipped with a pre-wired 6.5ft / 2m cable that terminates with bare end flying leads, facilitating easy connection. It supports a wide supply voltage range, accepting 20Vac-140Vac (120Vac nominal) and 20Vdc-140Vdc (24Vdc / 48Vdc / 120Vdc nominal), making it versatile for various power supply configurations. The QS18 universal voltage series sensor boasts an IP67 NEMA 6 degree of protection, ensuring durability in harsh environments. Its thermoplastic housing and Polymethyl methacrylate (PMMA) lens are designed for longevity, while the infrared (IR) light source and a sensing distance of 1m enable reliable detection. The sensor operates in Light-ON mode and includes 1 x digital output (PNP MOSFET transistor) for signal processing, with a rapid response time of 8.3ms / 0.0083 s.
