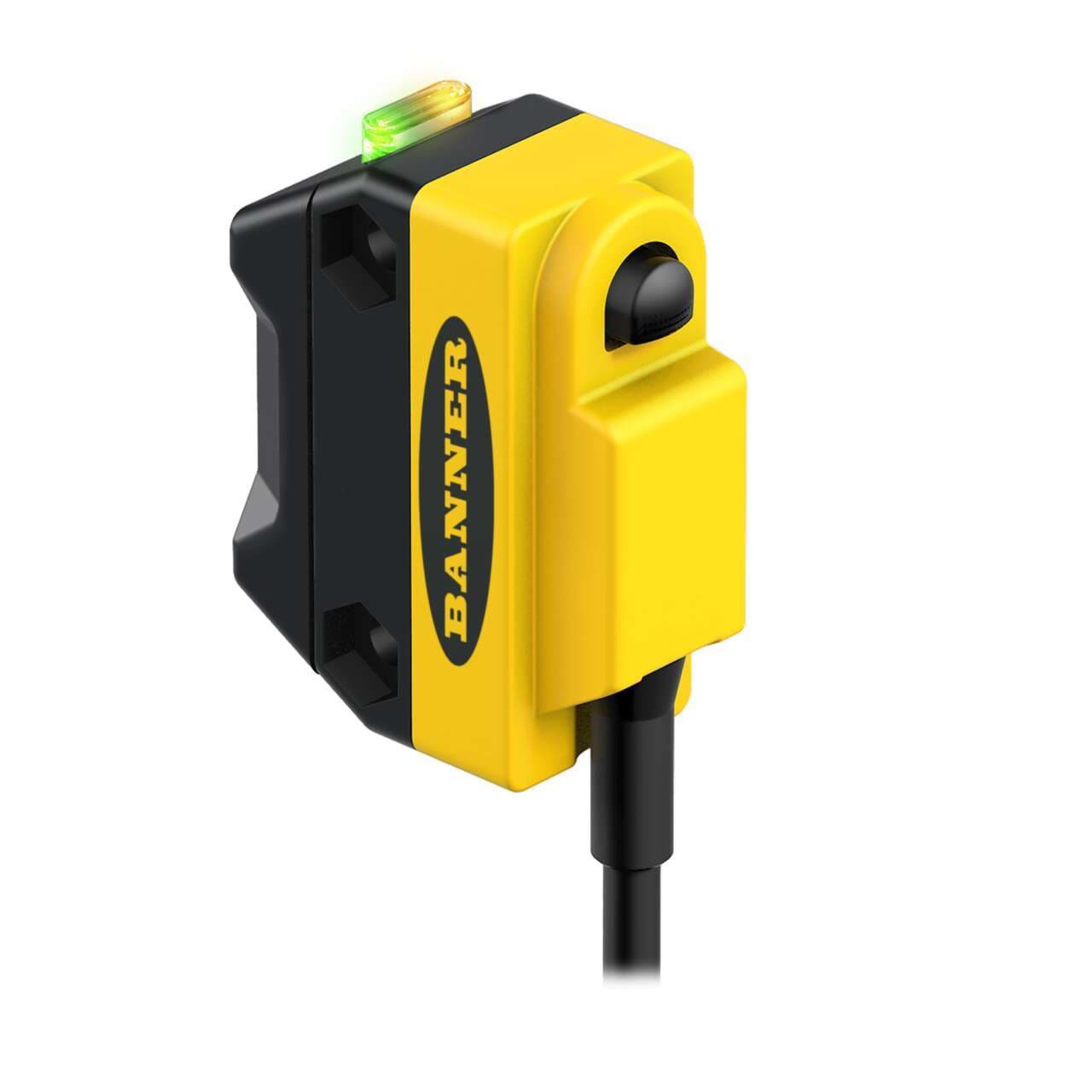

QS18EK6FPQ Banner Proximity Sensors
Part#:QS18EK6FPQ
Alt. Part#:802860
Manufacturer:Banner
Category:Proximity Sensors
Product Lifecycle:Active
Product description
WORLD-BEAM QS18 Expert Series; Plastic Fiber; Range: Vary by Mode & Fiber Optic Use; Input: 10-30 V dc; Output 1: Push/Pull with IO-Link; Output 2: Configurable PNP/NPN; 150 mm (6 in) M8 Pigtail QD
Product Details
- Weight 68.0388 g
- Country Of Origin MX
- Output 2 NPN/2 PNP Configurable
- Output Type (Specific) IO-Link and Single Discrete
- Fiber Type Plastic and Glass
- NEMA Rating NEMA 6
- Indicator Display Type Indicator LEDs
- Color LED - Amplifiers Red
- Min Op. Temperature (°C) -20
- Special Feature: Bussable Power No
- Input/Output Discrete & Serial
- Number of Pins 4
- Power Supply/Supply Voltage 10-30 V dc
- Feature: Health/ Marginal Signal Output Yes
- Cable Length (m) 0.15
- Connection Pigtail QD
- Max Op. Relative Humidity (%) 95% @ 50°C
- Feature: Timing (Hold/Delay) Yes
- Housing Style Rectangular
- Quick Disconnect Type M8 (Pico)
- Special Feature: Remote Teach Yes
- Minimum response time (ms) .6
- Repeatability (µs) 75
- Adjustments Teach Button
- Primary Housing Material Thermoplastic
- Max Op. Temperature (°C) 70
- Delay at Power-up (ms) 100
- Power DC
- IP Rating IP67
- Feature: Hazardous Area No
- Intrinsically Safe No
- Feature: Audible No
- IO Link Yes
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of QS18EK6FPQ on Powermatic Associates is $106.00. Order now.
About the product
Banner Engineering QS18EK6FPQ is an amplifier for sensors, specifically designed for fiberoptic sensor amplification within the QS18 Expert series. It operates within an ambient air temperature range of -20 to +70°C and features a TEACH mode for simplified setup. This part is pre-wired with a 6-inch (150mm) pigtail that terminates with a 4-pin Pico-style M8 connector, ensuring easy integration. It boasts an IP67 and NEMA 6 degree of protection, making it suitable for challenging environments. The supply voltage requirement is 10Vdc to 30Vdc, with 12Vdc and 24Vdc as nominal values. The QS18EK6FPQ has a rectangular shape and is constructed with a thermoplastic housing for durability. It supports the IO-Link communication protocol for enhanced connectivity and control. Additionally, it is equipped with two digital outputs (PNP/NPN transistor) and utilizes visible red light for operation.
