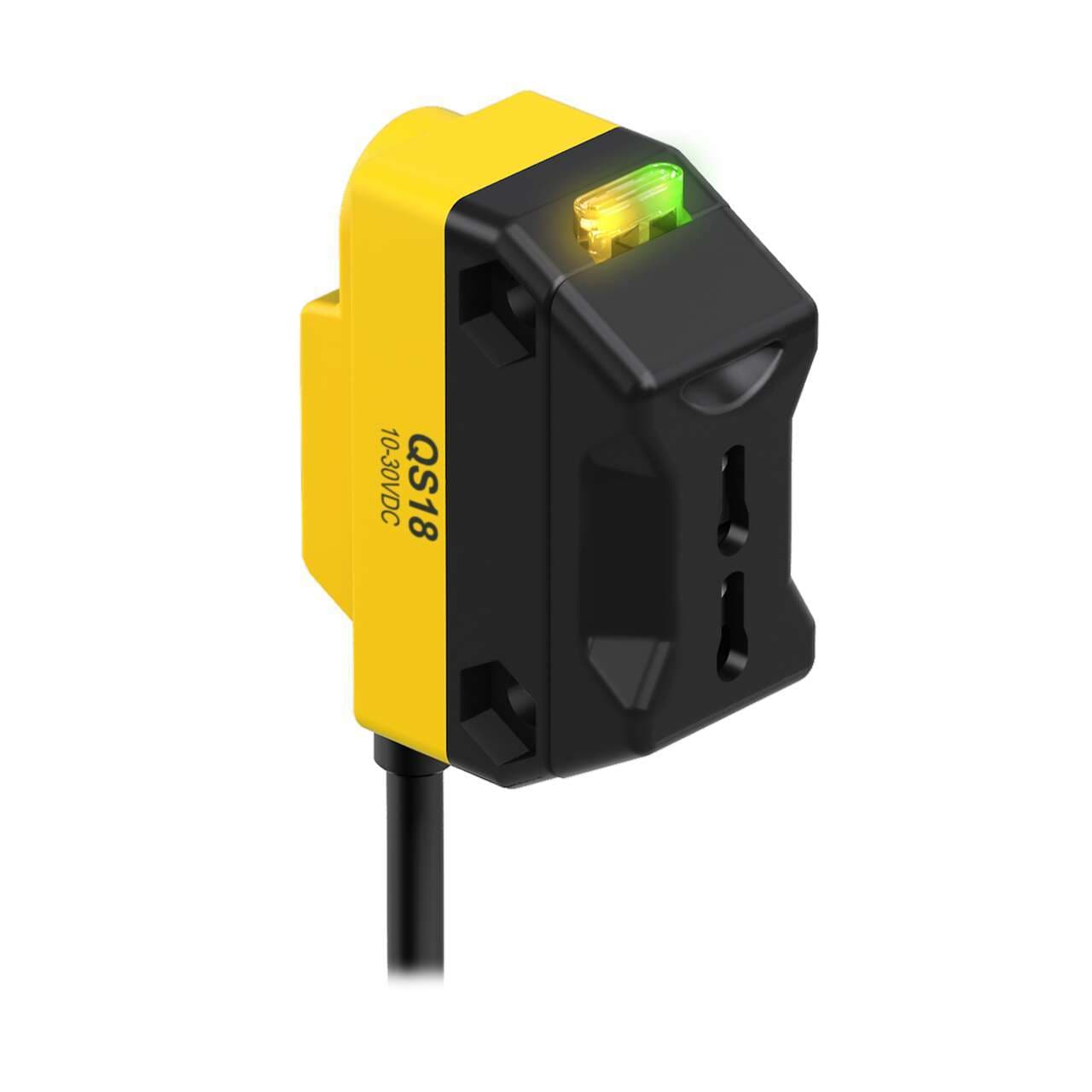

QS18EK6FPQ5 Banner Proximity Sensors
Part#:QS18EK6FPQ5
Alt. Part#:802859
Manufacturer:Banner
Category:Proximity Sensors
Product Lifecycle:Active
Product description
WORLD-BEAM QS18 Expert Series; Plastic Fiber; Range: Vary by Mode & Fiber Optic Use; Input: 10-30 V dc; Output 1: Push/Pull with IO-Link; Output 2: Configurable PNP/NPN; 150 mm (6 in) M12 Pigtail QD
Product Details
- Weight 40.82328 g
- Country Of Origin MX
- Fiber Type Plastic and Glass
- Repeatability (µs) 75
- Minimum response time (ms) .6
- Cable Length (m) 0.15
- Color LED - Amplifiers Red
- Intrinsically Safe No
- Feature: Audible No
- Output 2 NPN/2 PNP Configurable
- Number of Pins 4
- Indicator Display Type Indicator LEDs
- Primary Housing Material Thermoplastic
- Output Type (Specific) IO-Link and Single Discrete
- Min Op. Temperature (°C) -20
- Feature: Timing (Hold/Delay) Yes
- Housing Style Rectangular
- Quick Disconnect Type M12 (Euro)
- Adjustments Teach Button
- Feature: Hazardous Area No
- NEMA Rating NEMA 6
- Special Feature: Remote Teach Yes
- Feature: Health/ Marginal Signal Output Yes
- Connection Pigtail QD
- IP Rating IP67
- Special Feature: Bussable Power No
- Power DC
- Max Op. Temperature (°C) 70
- Delay at Power-up (ms) 100
- IO Link Yes
- Input/Output Discrete & Serial
- Power Supply/Supply Voltage 10-30 V dc
- Max Op. Relative Humidity (%) 95% @ 50°C
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of QS18EK6FPQ5 on Powermatic Associates is $106.00. Order now.
About the product
Banner Engineering QS18EK6FPQ5 is an amplifier for sensors, specifically designed for fiberoptic sensor amplification within the QS18 Expert series. It operates within an ambient air temperature range of -20 to +70°C and features a TEACH mode for easy setup. This part is pre-wired with a 6" / 150mm pigtail that terminates with a 4-pin Euro-style M12 connector, ensuring a secure and straightforward connection. It boasts an IP67 NEMA 6 degree of protection, making it suitable for various industrial environments. The QS18EK6FPQ5 operates on a supply voltage range of 10Vdc to 30Vdc, with 12Vdc and 24Vdc as nominal values, and is housed in a durable thermoplastic material. It supports the IO-Link communication protocol for enhanced connectivity and control. The device emits visible red light and offers two digital outputs (PNP/NPN transistor) with a rapid response time of 0.6ms / 0.0006 s, facilitating quick and efficient sensor signaling.
