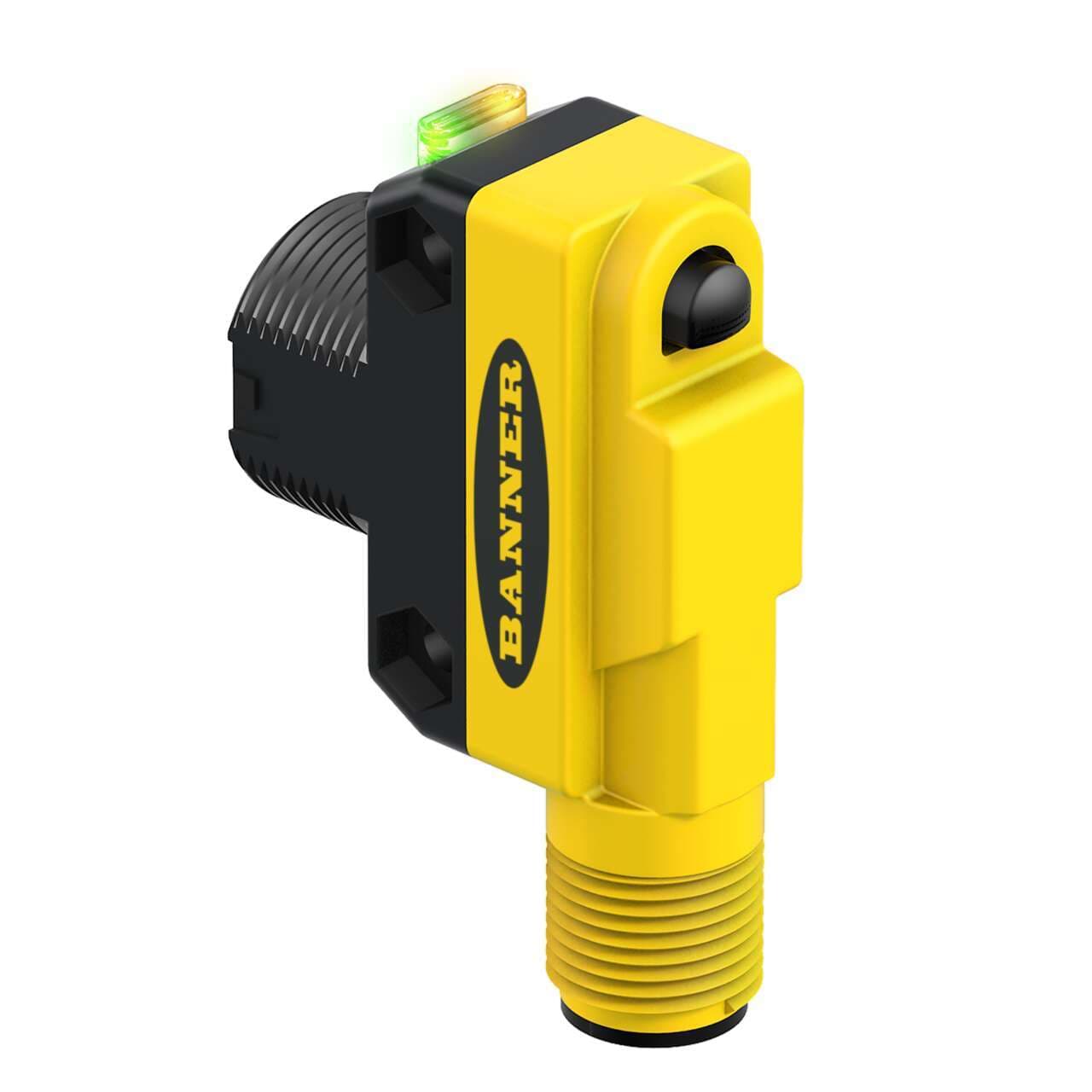

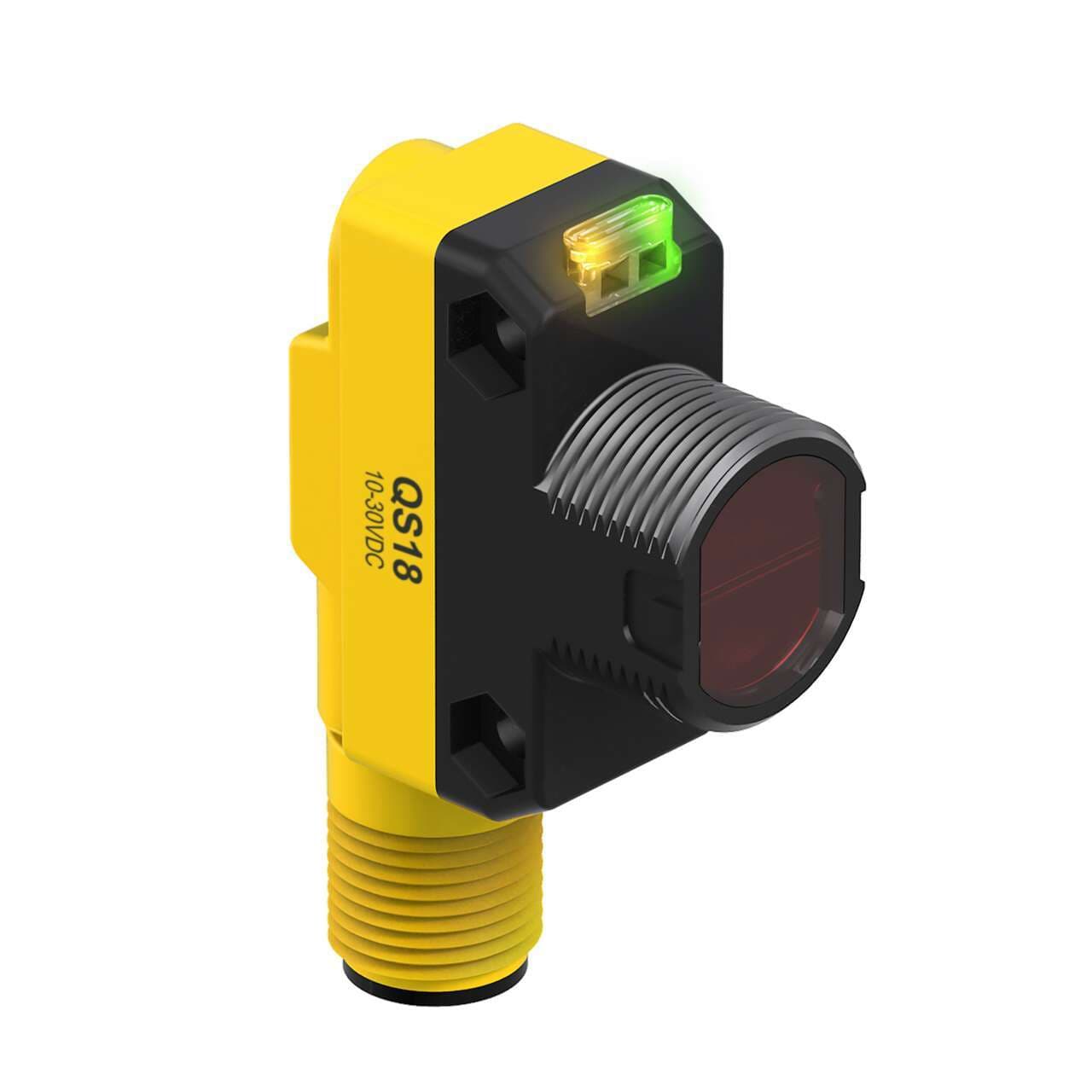

QS18EK6LPQ8 Banner Proximity Sensors
Part#:QS18EK6LPQ8
Alt. Part#:802815
Manufacturer:Banner
Category:Proximity Sensors
Product Lifecycle:Active
Product description
WORLD-BEAM QS18 Expert Series: Polar Retro; Range: 3.5 m; Input: 10-30 V dc; Output 1: Push/Pull with IO-Link; Output 2: Configurable PNP/NPN; M12 Integral QD
Product Details
- Weight 40.82328 g
- Country Of Origin MX
- Max Sensing Distance (mm) 3500
- Housing Style Rectangular w/M18 Mount
- Barrel Diameter (mm) 18
- Feature: Audible No
- Feature: Chemical Resistant No
- Quick Disconnect Type M12 (Euro)
- Power Supply/Supply Voltage 10-30 V dc
- Special Feature: Remote Teach Yes
- Output response time (ms) 0.6
- Max Op. Temp. (°C) 70
- NEMA Rating NEMA 6
- Repeatability (µs) 75
- IP Rating IP67
- Delay at Power-up (ms) 100
- Number of Pins 4
- Sensing Beam Visible Red LED
- Sensing Mode (Detailed) Polarized
- Primary Housing Material ABS
- Input/Output Discrete & Serial
- Connection Integral QD
- Operation Light/Dark Operate
- Sensing Mode (General) Retroreflective
- Min Op. Temp. (°C) -20
- Max Op. Relative Humidity [%] 95% @ 50°C
- Special Feature: Water Detection No
- Special Feature: Intrinsically Safe No
- Lens Material PMMA
- Adjustments Teach Button
- Feature: Hazardous Area No
- Feature: Timing (Hold/Delay) Yes
- Feature: Encapsulated No
- DeviceNet No
- IO Link Yes
- Feature: Health/ Marginal Signal Output Yes
- Power DC
- Outputs 2 NPN/2 PNP Configurable
- Sensing Beam Wavelength 640
- Indicator LEDs
- Feature: Quick Disconnect Yes
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of QS18EK6LPQ8 on Powermatic Associates is $90.00. Order now.
About the product
Banner Engineering QS18EK6LPQ8 is a polarized photo-electric sensor designed for versatile applications, featuring an M18 threaded mount for secure installation. This sensor operates within an ambient air temperature range of -20 to +70°C and is designed in a retro-reflective mode with TEACH functionality. It comes pre-equipped with a 4-pin Euro-style M12 connector, aligning with the QS18 Expert series standards. The QS18EK6LPQ8 offers a degree of protection rated at IP67 and NEMA 6, ensuring durability in various environmental conditions. It requires a supply voltage of 10Vdc to 30Vdc, with nominal values of 12Vdc and 24Vdc. The sensor's rectangular shape is constructed from a thermoplastic housing with a Polymethyl methacrylate (PMMA) lens, capable of sensing distances up to 3.5m. It emits a visible red light with a wavelength of 640 nm and supports both Light-ON and Dark-ON operating modes. Additionally, it features two digital outputs (PNP/NPN transistor) and boasts a rapid response time of 0.6ms or 0.0006 seconds.
