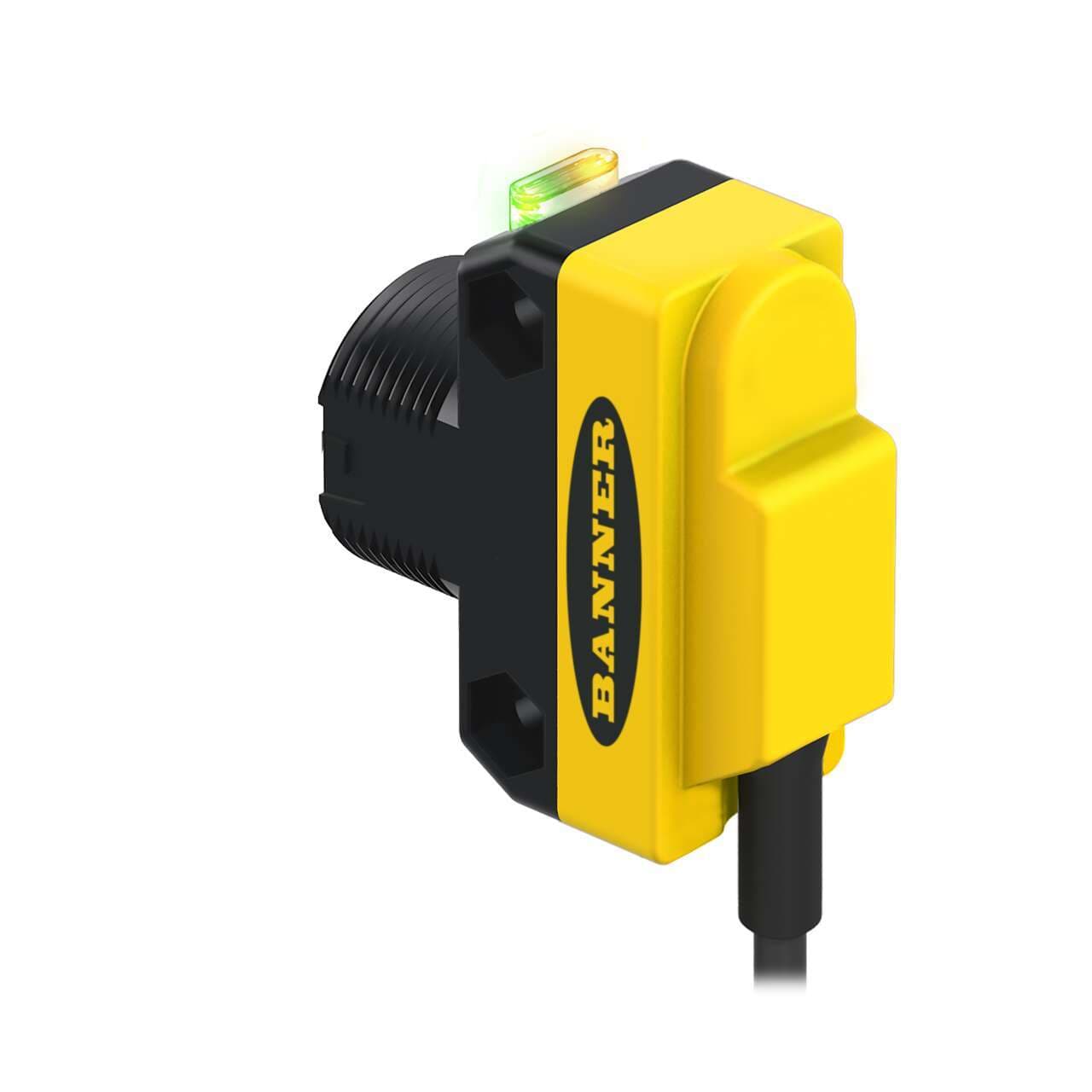

QS18EK6RQ Banner Proximity Sensors
Part#:QS18EK6RQ
Alt. Part#:802826
Manufacturer:Banner
Category:Proximity Sensors
Product Lifecycle:Active
Product description
WORLD-BEAM QS18 Series: Receiver; Range: 20 m; Input: 10-30 V dc; Output 1: Push/Pull with IO-Link; Output 2: Configurable PNP/NPN; 150 mm (6 in) M8 Pigtail QD
Product Details
- Weight 45.3592 g
- Country Of Origin MX
- Max Op. Temp. (°C) 70
- Quick Disconnect Type M8 (Pico)
- NEMA Rating NEMA 6
- Feature: Hazardous Area No
- Operation Light/Dark Operate
- Connection Pigtail QD
- Number of Pins 4
- Opposed Mode Emitter/Receiver Receiver
- IO Link Yes
- Sensing Mode (General) Opposed
- Primary Housing Material ABS
- Special Feature: Water Detection No
- Adjustments Teach Button
- Feature: Chemical Resistant No
- Outputs 1 Push/Pull; 1 Configurable PNP/NPN
- Min Op. Temp. (°C) -20
- Lens Material Acrylic
- Feature: Encapsulated No
- Sensing Beam Infrared LED
- Housing Style Rectangular w/M18 Mount
- Special Feature: Remote Teach No
- IP Rating IP67
- Feature: Timing (Hold/Delay) No
- Input/Output Discrete & Serial
- Sensing Mode (Detailed) Receiver
- Delay at Power-up (ms) 100
- Max Op. Relative Humidity [%] 95% @ 50°C
- Feature: Audible No
- Power DC
- Power Supply/Supply Voltage 10-30 V dc
- Special Feature: Intrinsically Safe No
- Barrel Diameter (mm) 18
- DeviceNet No
- Max Sensing Distance (mm) 20000
- Output response time (ms) 1.00 ON/1.00 OFF
- Repeatability (µs) 100
- Indicator LEDs
- Feature: Quick Disconnect Yes
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of QS18EK6RQ on Powermatic Associates is $115.00. Order now.
About the product
Banner Engineering QS18EK6RQ is a photo-electric sensor designed for through-beam system applications with an opposed mode TEACH mode. It features an M18 threaded mount for installation and operates within an ambient air temperature range of -20 to +70°C. This sensor is part of the QS18 Expert series and offers a pre-wired 6-inch (150mm) pigtail terminated with a 4-pin Pico-style M8 connector for connectivity. It boasts an IP67 NEMA 6 degree of protection, ensuring durability in various environments. The QS18EK6RQ operates on a supply voltage of 10Vdc to 30Vdc, with 12Vdc and 24Vdc as nominal values. Its rectangular shape is constructed from a thermoplastic housing with an acrylic lens. The sensor has a sensing distance of up to 20 meters and utilizes infrared light with a wavelength of 940 nm. It supports both Light-ON and Dark-ON operating modes and features two digital outputs (PNP/NPN transistor) with a rapid response time of 1ms (0.001 s).
