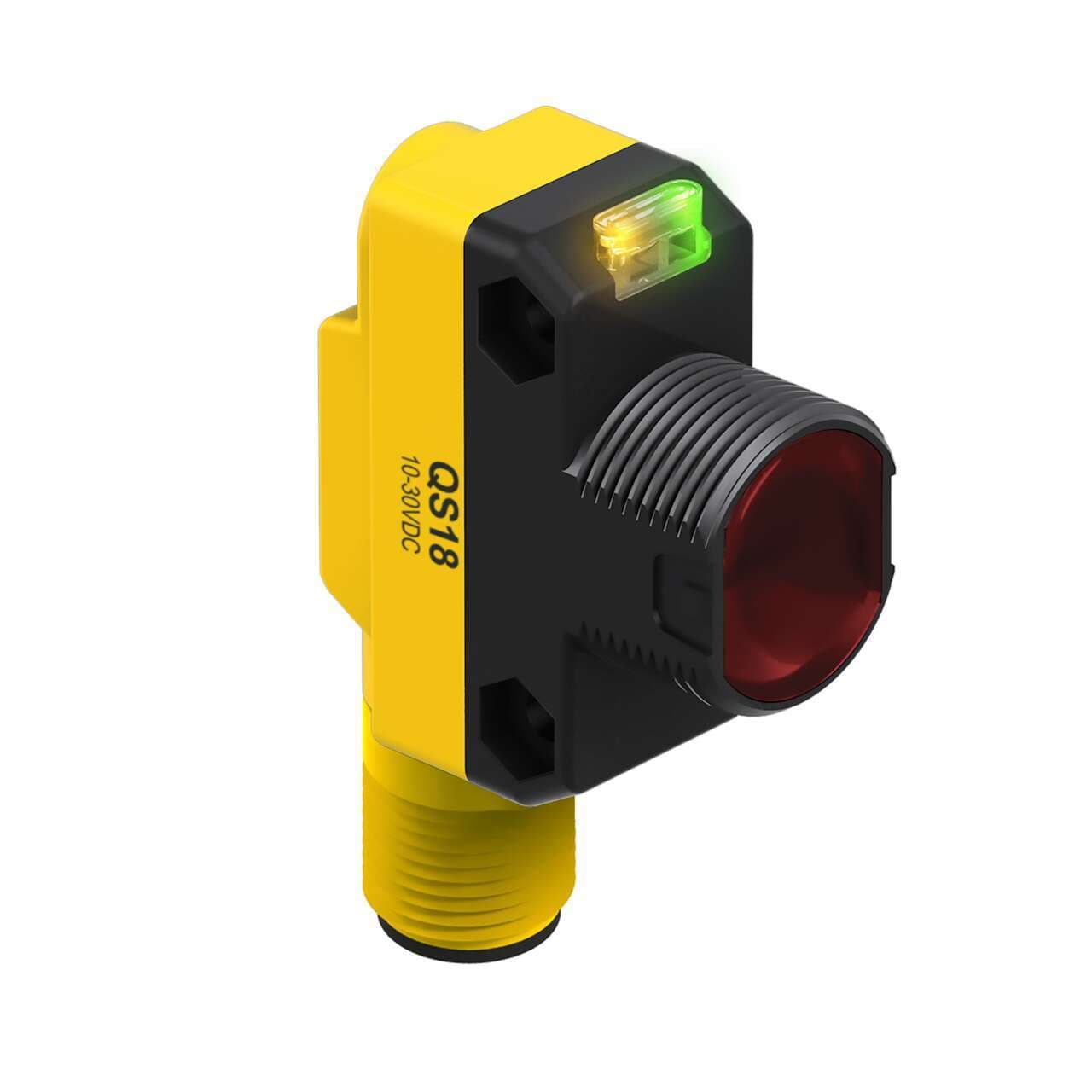

QS18EK6RVQ8 Banner Proximity Sensors
Part#:QS18EK6RVQ8
Alt. Part#:807895
Manufacturer:Banner
Category:Proximity Sensors
Product Lifecycle:Active
Product description

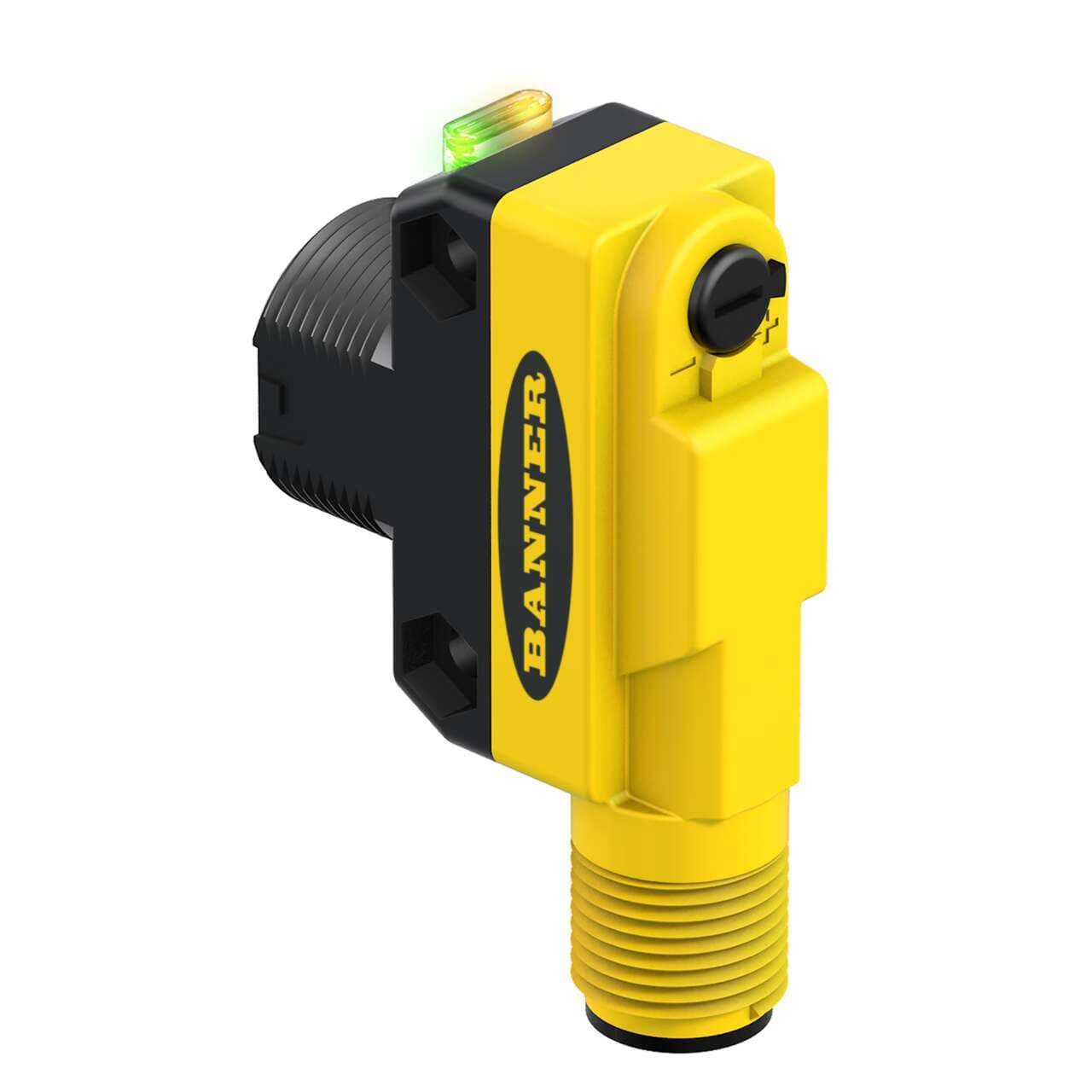

WORLD-BEAM QS18 Series: Receiver; Range: 20 m; Input: 10-30 V dc; Output 1: Push/Pull with IO-Link; Output 2: Configurable PNP/NPN; M12 Integral QD
Product Details
- Weight 45.3592 g
- Country Of Origin MX
- Power DC
- Special Feature: Intrinsically Safe No
- Max Op. Relative Humidity [%] 95% @ 50°C
- Feature: Chemical Resistant No
- Sensing Beam Visible Red LED
- Adjustments Teach Button
- Special Feature: Remote Teach No
- Feature: Audible No
- Outputs 1 Push/Pull; 1 Configurable PNP/NPN
- Output response time (ms) 1.00 ON/1.00 OFF
- Lens Material Acrylic
- Feature: Quick Disconnect Yes
- Input/Output Discrete & Serial
- Power Supply/Supply Voltage 10-30 V dc
- Repeatability (µs) 100
- Indicator LEDs
- IO Link Yes
- Housing Style Rectangular w/M18 Mount
- Operation Light/Dark Operate
- Number of Pins 4
- Feature: Timing (Hold/Delay) No
- Sensing Mode (General) Opposed
- Min Op. Temp. (°C) -20
- IP Rating IP67
- Feature: Hazardous Area No
- Max Sensing Distance (mm) 20000
- Max Op. Temp. (°C) 70
- NEMA Rating NEMA 6
- Feature: Encapsulated No
- Primary Housing Material ABS
- Connection Integral QD
- Special Feature: Water Detection No
- Barrel Diameter (mm) 18
- DeviceNet No
- Sensing Mode (Detailed) Receiver
- Quick Disconnect Type M12 (Euro)
- Opposed Mode Emitter/Receiver Receiver
- Delay at Power-up (ms) 100
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of QS18EK6RVQ8 on Powermatic Associates is $99.00. Order now.
About the product
Banner Engineering QS18EK6RVQ8 is a photo-electric sensor designed for precise detection tasks, featuring a receiver alone configuration within the QS18 Expert series. This sensor operates with a through-beam system in opposed mode and includes a TEACH mode for easy setup. It is equipped with a 4-pin Euro-style M12 connector for straightforward connection and has an M18 threaded mount for secure installation. The sensor operates within an ambient air temperature range of -20 to +70°C and is housed in a durable thermoplastic with an acrylic lens, ensuring protection up to IP67 and NEMA 6 standards. It requires a supply voltage of 10Vdc to 30Vdc, with 12Vdc and 24Vdc as nominal values. The QS18EK6RVQ8 offers a sensing distance of up to 20 meters and utilizes visible red light with a wavelength of 625 nm. It supports both Light-ON and Dark-ON operating modes and provides quick response times of 1ms for ON/OFF operations. The sensor also features 2 x digital outputs (PNP/NPN transistor) for versatile signaling options.
