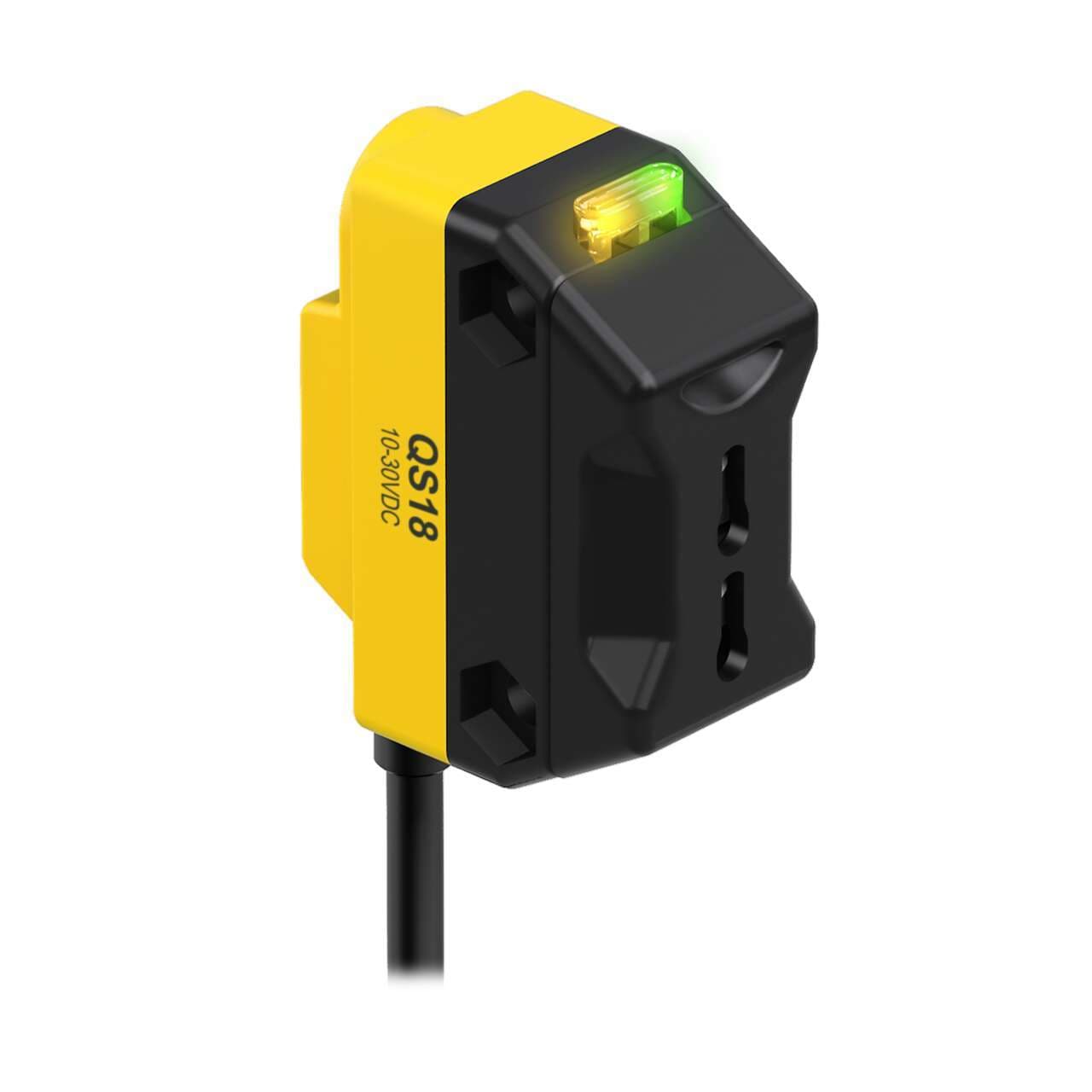

QS18EN6FP Banner Proximity Sensors
Part#:QS18EN6FP
Alt. Part#:75722
Manufacturer:Banner
Category:Proximity Sensors
Product Lifecycle:Active
Product description
WORLD-BEAM QS18 Expert Series; Plastic Fiber; Range: Vary by Mode & Fiber Optic use; Input: 10-30 V dc; Output: NPN; 2 m Cable
Product Details
- Weight 90.7184 g
- Country Of Origin US
- Primary brand Banner Engineering
- Functions Fiber optic sensor amplifier green LED (power ON) yellow LED (light sensed) TEACH mode
- Material thermoplastic housing
- Sub-range name QS18 Expert series
- Shape Rectangular
- Ambient air temperature for operation -20...+70 °C
- Supply voltage (DC) 10Vdc-30Vdc (12Vdc / 24Vdc nom.)
- Digital outputs 1 x digital output (NPN transistor)
- Connection type Pre-wired with 6.5ft / 2m cable terminated with bare end flying leads
- Main function Amplifier for sensor
- Light Color Visible red
- Product series / family name WORLD-BEAM series
- Degree of protection IP67 NEMA 6
- Order code / Manufacturer SKU 75722
- Number of Pins 4
- Power Supply/Supply Voltage 10-30 V dc
- Feature: Audible No
- Cable Length (m) 2
- Fiber Type Plastic and Glass
- Min Op. Temperature (°C) -20
- Minimum response time (ms) .6
- Primary Housing Material Thermoplastic
- Output Type (Specific) Single Discrete
- NEMA Rating NEMA 6
- Housing Material Thermoplastic
- Input/Output Discrete
- IP Rating IP67
- Indicator Display Type Indicator LEDs
- Output NPN
- Special Feature: Remote Teach Yes
- IO Link No
- Housing Style Rectangular
- Max Op. Relative Humidity (%) 95% @ 50°C
- Special Feature: Bussable Power No
- Color LED - Amplifiers Red
- Repeatability (µs) 75
- Adjustments Teach Button
- Feature: Hazardous Area No
- Connection Cable
- Max Op. Temperature (°C) 70
- Feature: Timing (Hold/Delay) Yes
- Power DC
- Quick Disconnect Type No QD
- Intrinsically Safe No
- Delay at Power-up (ms) 100
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of QS18EN6FP on Powermatic Associates is $90.00. Order now.
About the product
Banner Engineering QS18EN6FP is an amplifier designed for sensor applications, specifically functioning as a fiberoptic sensor amplifier. It operates within an ambient air temperature range of -20 to +70°C and features a TEACH mode for ease of use. This part is pre-wired with a 6.5ft / 2m cable that terminates with bare end flying leads, ensuring straightforward integration into various systems. As part of the QS18 Expert series, it offers a degree of protection rated at IP67 NEMA 6, suitable for demanding environments. The QS18EN6FP requires a supply voltage of 10Vdc to 30Vdc, with 12Vdc and 24Vdc as the nominal values. Its rectangular shape and thermoplastic housing are designed for durability, while the visible red light aids in operation. Additionally, it includes 1 x digital output (NPN transistor) for connectivity and control.
