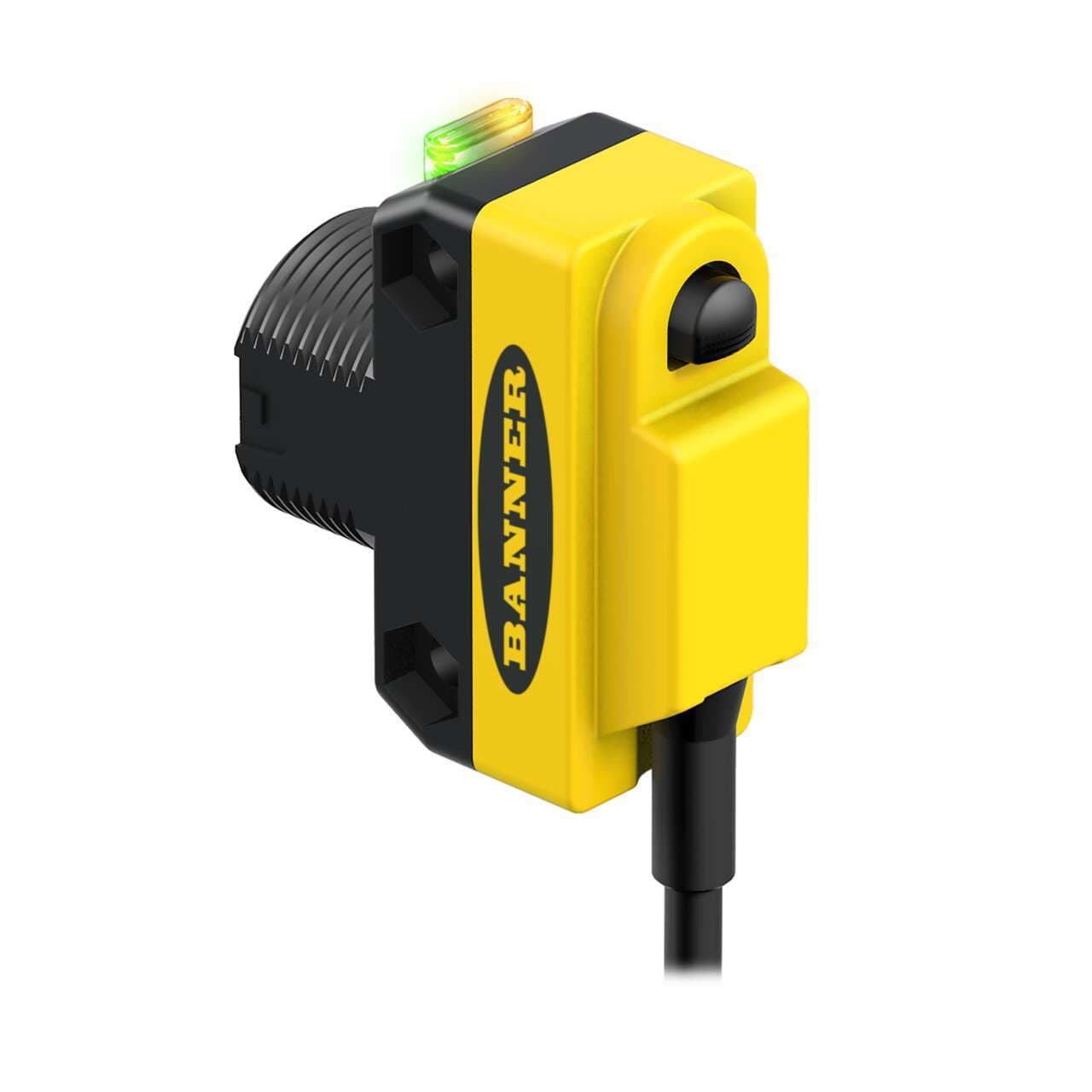

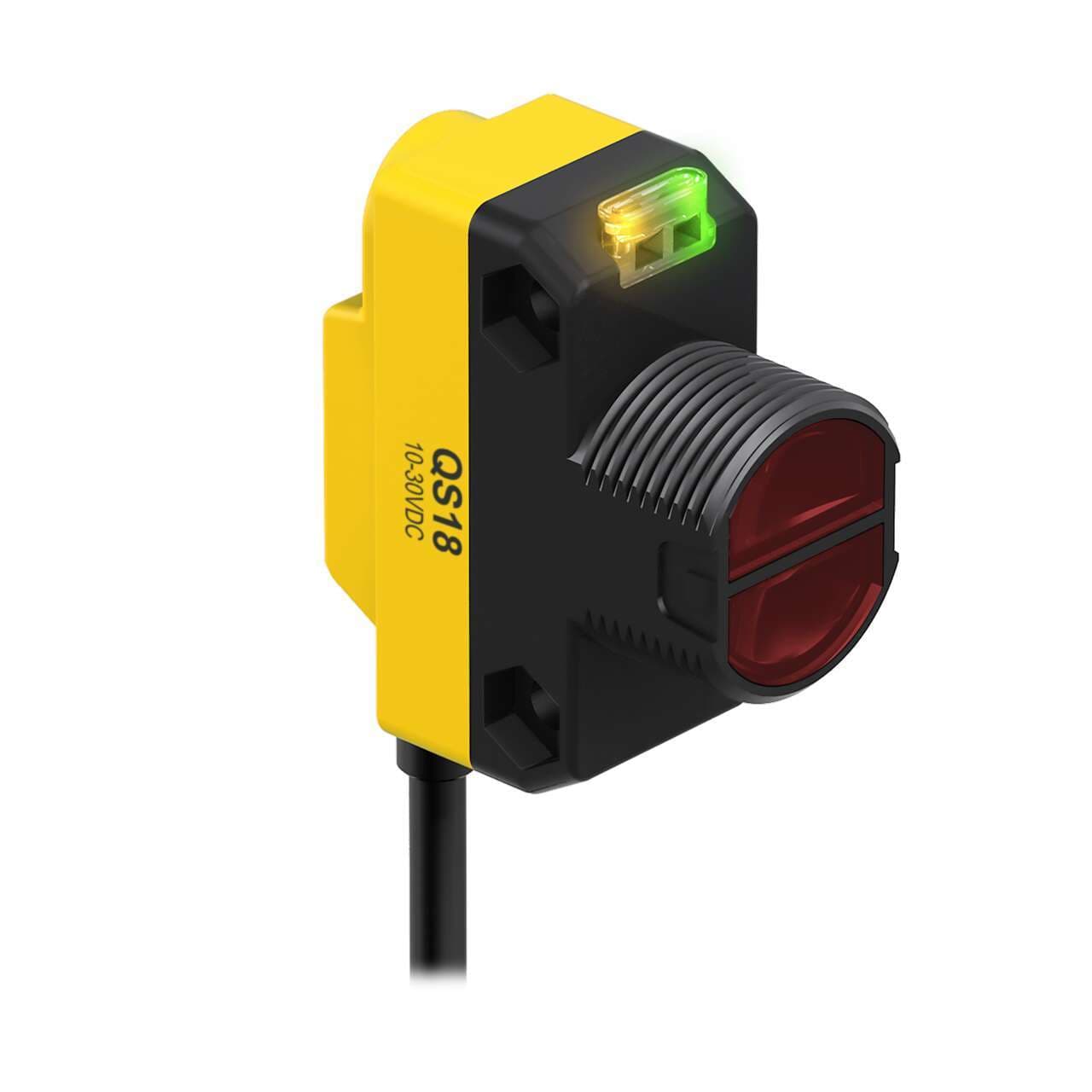

QS18EP6DV Banner Proximity Sensors

Product Details

• Weight
  90.7184 g
• Country Of Origin
  MX
• Shape
  Rectangular
• Digital outputs
  1 x digital output (PNP transistor)
• Ambient air temperature for operation
  -20...+70 °C
• Product series / family name
  WORLD-BEAM series
• Light Color
  Visible red
• Design
  diffuse mode
• Connection type
  Pre-wired with 6.5ft / 2m cable terminated with bare end flying leads
• Compliant with standard(s)
  cURus CE
• Thread size
  M18
• Response time
  0.6ms / 0.0006 s
• Order code / Manufacturer SKU
  75224
• Main function
  Sensor (Photo-electric)
• Supply voltage (DC)
  10Vdc-30Vdc (12Vdc / 24Vdc nom.)
• Functions
  Photo-electric sensor green LED (power ON) yellow LED (light sensed) TEACH mode
• Operating mode
  Light-ON Dark-ON
• Material
  thermoplastic housing PMMA lns.
• Primary brand
  Banner Engineering
• Sub-range name
  QS18 Expert series
Sensing distance
600mm
Mounting mode
Threaded mount
Degree of protection
IP67 NEMA 6
Power Supply/Supply Voltage
10-30 V dc
Power
DC
Special Feature: Water Detection
No
Barrel Diameter (mm)
18
DeviceNet
No
Feature: Audible
No
Max Sensing Distance (mm)
600
Max Op. Temp. (°C)
70
NEMA Rating
NEMA 6
Lens Material
PMMA
Feature: Chemical Resistant
No
Outputs
PNP
Sensing Beam
Visible Red LED
Number of Pins
4
Cable Length (m)
2
Min Op. Temp. (°C)
-20
Max Op. Relative Humidity [%]
95% @ 50°C
Feature: Timing (Hold/Delay)
Yes
Sensing Mode (General)
Proximity
Connection
Cable
Sensing Beam Wavelength
630
Adjustments
Teach Button
Feature: Quick Disconnect
No
Special Feature: Remote Teach
Yes
Indicator
LEDs
Input/Output
Discrete
Quick Disconnect Type
No QD
Primary Housing Material
ABS
Operation
Light/Dark Operate
IP Rating
IP67
Feature: Hazardous Area
No
Housing Style
Rectangular w/M18 Mount
Special Feature: Intrinsically Safe
No
Repeatability (µs)
75
Delay at Power-up (ms)
100
IO Link
No
Sensing Mode (Detailed)
Diffuse
Output response time (ms)
0.6
Feature: Encapsulated
No
