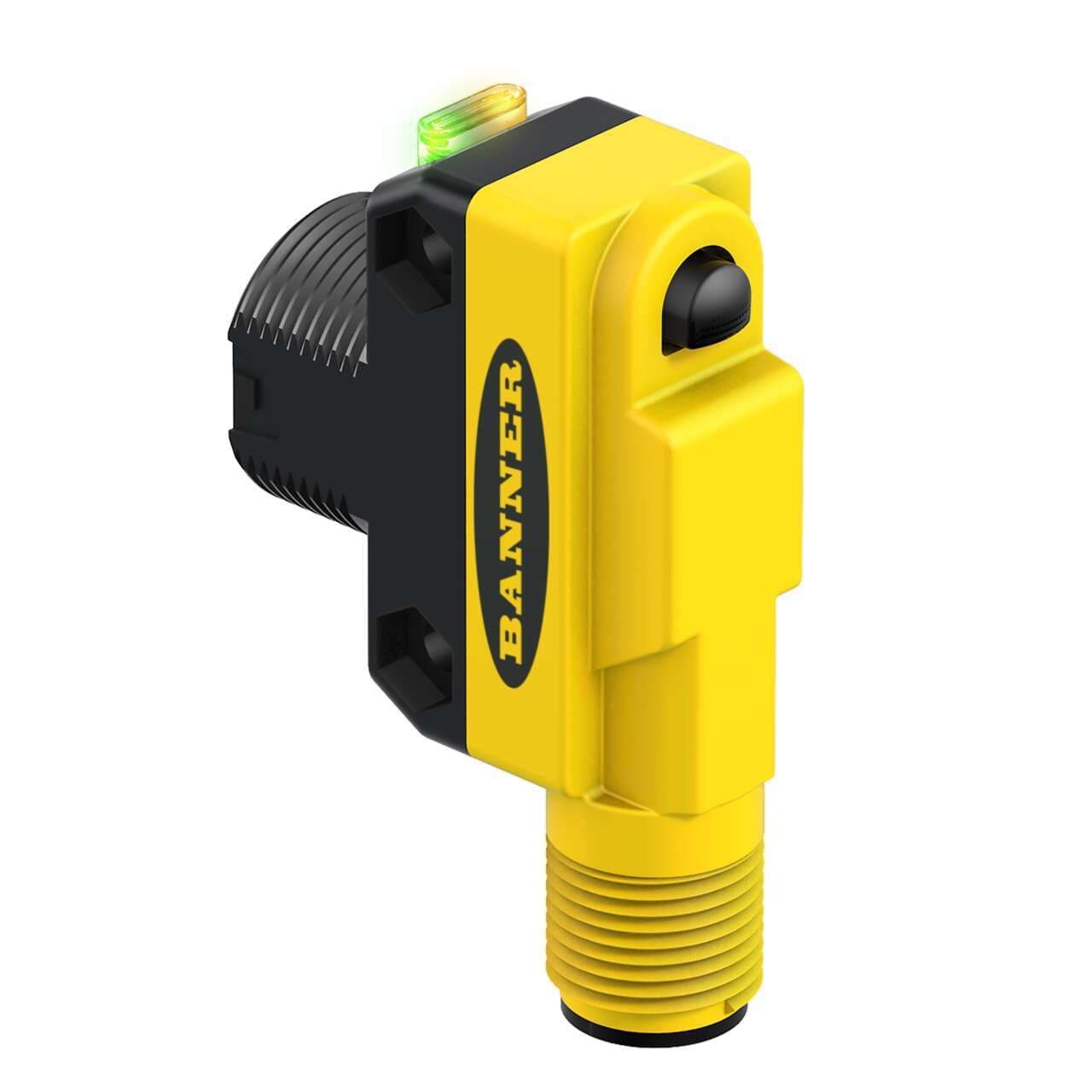

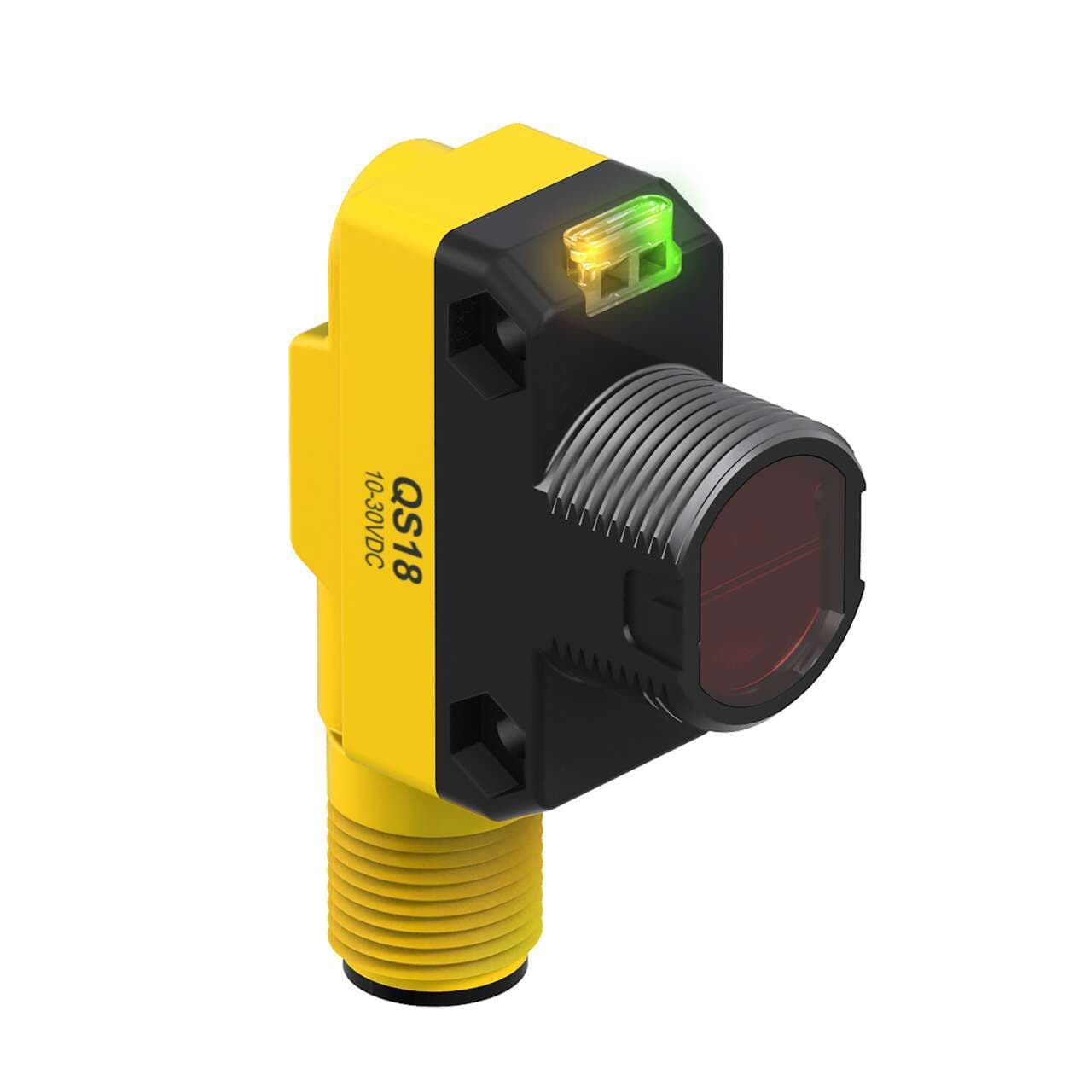

QS18EP6LPQ8 Banner Proximity Sensors

Product Details

• Weight
  54.43104 g
• Country Of Origin
  MX
• Main function
  Sensor (Photo-electric)
• Sensing distance
  3.5m
• Response time
  0.6ms / 0.0006 s
• Sub-range name
  QS18 Expert series
• Supply voltage (DC)
  10Vdc-30Vdc (12Vdc / 24Vdc nom.)
• Operating mode
  Light-ON Dark-ON
• Design
  retro-reflective mode
• Shape
  Rectangular
• Mounting mode
  Threaded mount
• Compliant with standard(s)
  cURus CE
• Primary brand
  Banner Engineering
• Functions
  Polarized photo-electric sensor green LED (power ON) yellow LED (light sensed) TEACH mode
• Thread size
  M18
• Degree of protection
  IP67 NEMA 6
• Ambient air temperature for operation
  -20...+70 °C
• Product series / family name
  WORLD-BEAM series
• Light Color
  Visible red
• Digital outputs
  1 x digital output (PNP transistor)
Order code / Manufacturer SKU
71987
Connection type
Pre-equipped with 4-pin Euro-style M12 connector
Material
thermoplastic housing PMMA lns.
Sensing Mode (Detailed)
Polarized
Operation
Light/Dark Operate
Number of Pins
4
Feature: Timing (Hold/Delay)
Yes
Primary Housing Material
ABS
Special Feature: Water Detection
No
Barrel Diameter (mm)
18
Power Supply/Supply Voltage
10-30 V dc
Special Feature: Remote Teach
Yes
Lens Material
PMMA
Input/Output
Discrete
Max Op. Temp. (°C)
70
Adjustments
Teach Button
DeviceNet
No
Sensing Mode (General)
Retroreflective
Connection
Integral QD
Delay at Power-up (ms)
100
Outputs
PNP
Sensing Beam Wavelength
630
Indicator
LEDs
IO Link
No
Power
DC
Min Op. Temp. (°C)
-20
NEMA Rating
NEMA 6
Feature: Hazardous Area
No
Max Sensing Distance (mm)
3500
Special Feature: Intrinsically Safe
No
Max Op. Relative Humidity [%]
95% @ 50°C
Housing Style
Rectangular w/M18 Mount
Output response time (ms)
0.6
IP Rating
IP67
Feature: Quick Disconnect
Yes
Repeatability (µs)
75
Feature: Encapsulated
No
Sensing Beam
Visible Red LED
Quick Disconnect Type
M12 (Euro)
Feature: Chemical Resistant
No
Feature: Audible
No
