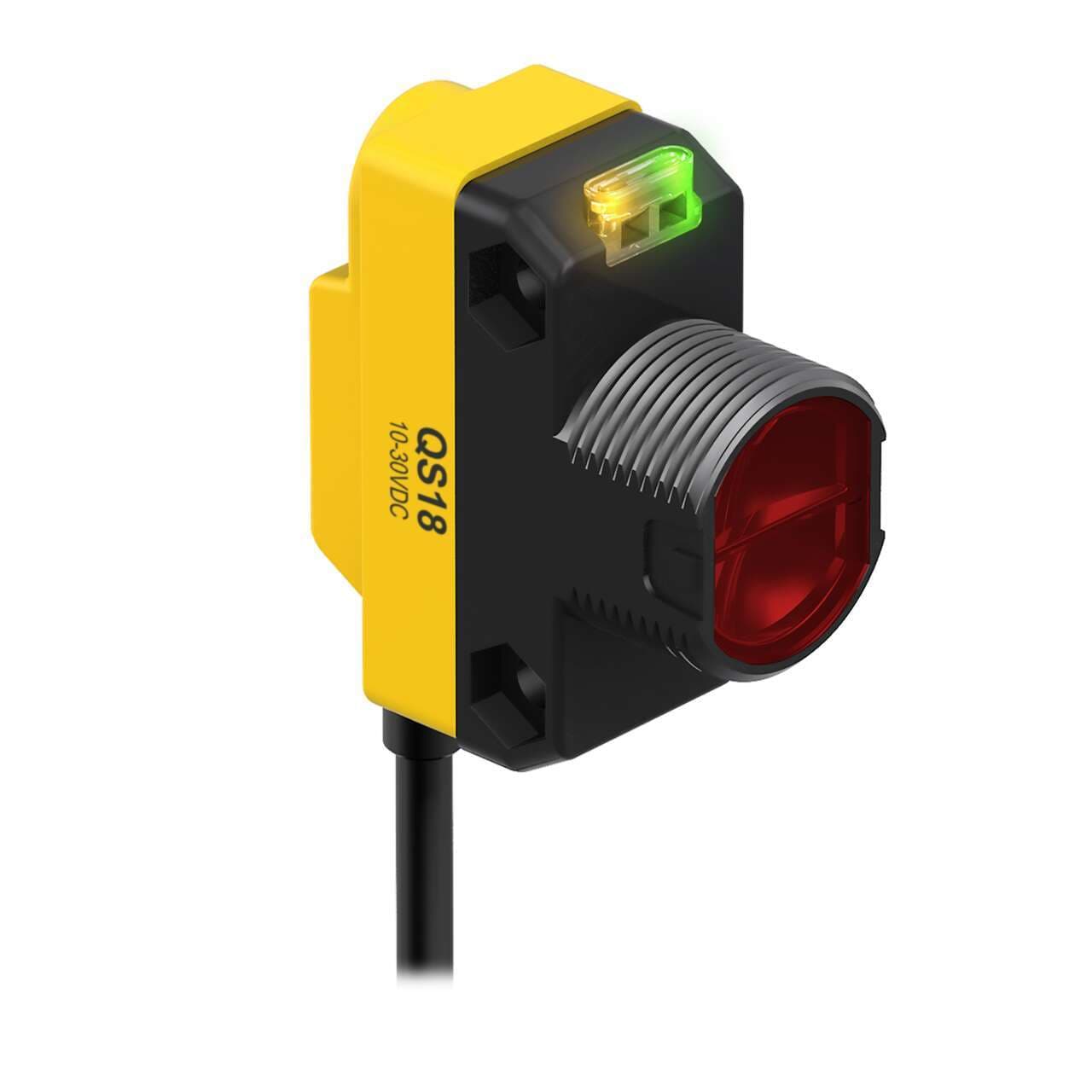

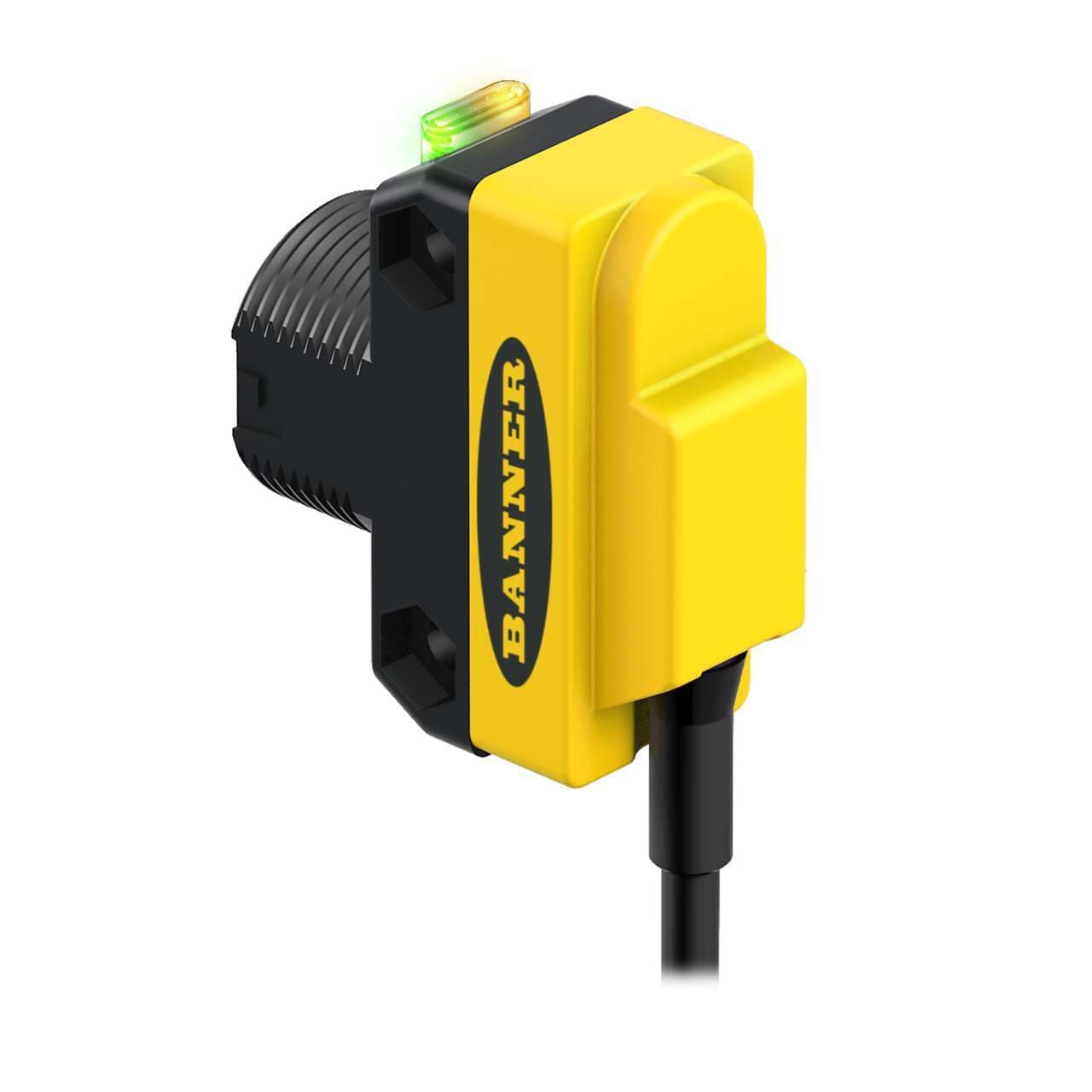

QS18VN6FF50 Banner Proximity Sensors
Part#:QS18VN6FF50
Alt. Part#:71637
Manufacturer:Banner
Category:Proximity Sensors
Product Lifecycle:Active
Product description
WORLD-BEAM Q18 Series: Fixed-Field; Range: 50 mm; Input: 10-30 V dc; Output: Complementary Solid-State NPN; 2 m (6.5 ft) Cable
Product Details
- Weight 72.57472 g
- Country Of Origin MX
- Sensing Mode (General) Proximity
- Quick Disconnect Type No QD
- Repeatability (µs) 160
- Feature: Timing (Hold/Delay) No
- Cable Length (m) 2
- Max Sensing Distance (mm) 50
- Output response time (ms) 0.85
- NEMA Rating NEMA 6
- Feature: Chemical Resistant No
- Max Op. Temp. (°C) 70
- IP Rating IP67
- Feature: Audible No
- Primary Housing Material ABS
- Min Op. Temp. (°C) -20
- Sensing Beam Visible Red LED
- Special Feature: Remote Teach No
- Max Op. Relative Humidity [%] 95% @ 50°C
- DeviceNet No
- Special Feature: Intrinsically Safe No
- Number of Pins 4
- Input/Output Discrete
- Barrel Diameter (mm) 18
- IO Link No
- Outputs NPN
- Sensing Beam Wavelength 630
- Lens Material Acrylic
- Housing Style Rectangular w/M18 Mount
- Feature: Quick Disconnect No
- Small Visible Spot LED
- Operation Light/Dark Operate
- Adjustments N/A
- Feature: Encapsulated No
- Power DC
- Power Supply/Supply Voltage 10-30 V dc
- Special Feature: Water Detection No
- Indicator LEDs
- Sensing Mode (Detailed) Background Suppression (Fixed)
- Connection Cable
- Delay at Power-up (ms) 100
- Feature: Hazardous Area No
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of QS18VN6FF50 on Powermatic Associates is $102.00. Order now.
About the product
Banner Engineering QS18VN6FF50 is a fixed-field photo-electric sensor designed for precise sensing tasks. It features an M18 threaded mount for secure installation and operates within an ambient air temperature range of -20 to +70°C. This sensor is part of the QS18 series and incorporates a background suppression system to enhance its detection capabilities. It comes pre-wired with a 6.5ft / 2m cable that terminates with bare end flying leads for easy connection. The QS18VN6FF50 offers a degree of protection rated at IP67 NEMA 6, making it suitable for challenging environments. It requires a supply voltage of 10Vdc-30Vdc, with 12Vdc and 24Vdc as nominal values. The sensor's rectangular shape is constructed from a thermoplastic housing with an acrylic lens, ensuring durability. It has a sensing distance of 50mm and utilizes visible red light for detection. Additionally, it supports both Light-ON and Dark-ON operating modes and includes 1 x digital output (NPN transistor; complementary NO/NC) for versatile signaling options.
